The PTX10001-36MR is well-known for its core, peering and DCI capabilities, but it's also a very performant L2 aggregation device. In this article, we will test and demonstrate L2 virtual circuits scale on Express4-based PTX routers.
Introduction

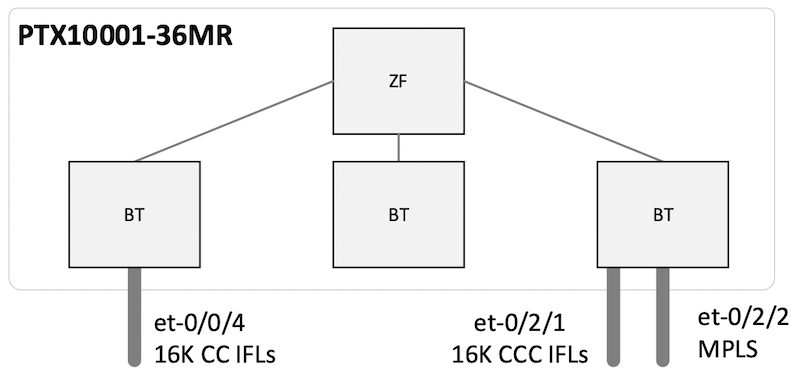

Each Express 4 ASIC (Codename: “BT”) supports up to 16384 logical interfaces. In this test scenario we distribute logical interfaces between two PFEs of a PTX10001-36MR as shown in Figure 1:
Figure1: 32K CCC Test
Figure 2 shows relationships between interfaces, circuits and remote edge devices. The setup has a trivial next-hop topology without any load balancing.
Note that regular “et-” interfaces are used in this test. With Aggregated Ethernet in use the scale will reduce because, as of today, a separate logical interface is allocated for each member link (also known as “child” IFL).
Figure 2. CCC Logical Interfaces, Circuits and Remote PEs.
Configuration and Validation
CCC interface configuration is shown below:
unit 1 {
encapsulation vlan-ccc;
vlan-tags outer 1001 inner 1;
input-vlan-map {
swap-swap;
vlan-id 1;
inner-vlan-id 100;
}
output-vlan-map swap-swap;
}
All the circuits are provisioned as static pseudo-wires (32000 total) and 128 static LSPs are provisioned to reach remote PEs.
All the l2 connections are “up” after commit:
regress@rtme-ptx10# run show l2circuit connections | match "rmt\s+Up" | count
Count: 32000 lines
PFE commands confirm that 32K MPLS and 32K CCC routes are present.
root@rtme-ptx10:pfe> show route summary
IPv4 Route Tables:
Index Routes Size(b) Prefixes Aggr Installed Comp(%)
-------- ---------- ---------- --------- --------- ---------- ------
Default 35 3640 31 0 19 39
1 0 0 0 0 0 0
50 5 520 5 0 5 0
36738 5 520 5 0 5 0
MPLS Route Tables:
Index Routes Size(b) Prefixes Aggr Installed Comp(%)
-------- ---------- ---------- --------- --------- ---------- ------
Default 32007 3328728 32007 0 32007 -
IPv6 Route Tables:
Index Routes Size(b) Prefixes Aggr Installed Comp(%)
-------- ---------- ---------- --------- --------- ---------- ------
Default 7 728 7 0 7 0
1 0 0 0 0 0 0
50 5 520 5 0 5 0
36738 6 624 6 0 6 0
CLNP Route Tables:
Index Routes Size(b) Prefixes Aggr Installed Comp(%)
-------- ---------- ---------- --------- --------- ---------- ------
Default 2 208 2 0 2 -
50 1 104 1 0 1 -
CCC Route Tables:
Index Routes Size(b) Prefixes Aggr Installed Comp(%)
-------- ---------- ---------- --------- --------- ---------- ------
Default 32000 3328000 32000 0 32000 -
16K L2 circuits per PFE limit is imposed by the address space of the local L2 domain attribute of the ASIC (14 bits). The mapping of interfaces and VLANs to a logical interface is kept in the L2 domain table.
root@rtme-ptx10:pfe> show jexpr chash pfe 2
pfe : 2
ID PFE Name Size(cells) Used(cells) % MaxUsed(cells) % Note
-- --- ---- ----------- ----------- - -------------- - ----
0 2 IGP-megidx 4096 0 0 0 0
1 2 EGP-megidx 4096 0 0 0 0
2 2 TunnelL2DomainHa 24576 0 0 0 0 1 entry=2/3/6 cells
3 2 TunnelL2DomainHa 24576 0 0 0 0 1 entry=2/3/6 cells
4 2 EPP_MAPID 196608 16120 8 16120 8
5 2 L2Domain 32768 16012 48 16012 48
6 2 SLU-MY-MAC 3072 39 1 39 1
7 2 DLU-IDB 2519040 0 0 0 0 1 entry=1/2/4 cells
8 2 SA-Learning 32768 0 0 0 0
ID PFE Name Size(cells) Used(cells) % MaxUsed(cells) % Note
-- --- ---- ----------- ----------- - -------------- - ----
0 255 DLU-IDB 2519040 131287 5 415189 16 1 entry=1/2/4 cells
Utilization of ingress (next-hop) memory is less than 20%.
root@rtme-ptx10:pfe> show jexpr jtm ingress-main-memory chip 2
Show JTM Ingress MM allocation:
Pfe Chip: 2
[Global Region]
Used words: 129948, max used: 129948, allocs: 3792767, frees: 3754556
Allocator 0: used words: 10825, max used: 10825, allocs: 316064, frees: 312877
total words: 59392, available: 81%
Allocator 1: used words: 10828, max used: 10828, allocs: 316064, frees: 312880
total words: 63488, available: 82%
Allocator 2: used words: 10826, max used: 10826, allocs: 316064, frees: 312880
total words: 63488, available: 82%
Allocator 3: used words: 10828, max used: 10828, allocs: 316064, frees: 312880
total words: 63488, available: 82%
Allocator 4: used words: 10832, max used: 10832, allocs: 316064, frees: 312880
total words: 63488, available: 82%
Allocator 5: used words: 10828, max used: 10828, allocs: 316064, frees: 312879
total words: 63488, available: 82%
Allocator 6: used words: 10826, max used: 10826, allocs: 316064, frees: 312880
total words: 65536, available: 83%
Allocator 7: used words: 10832, max used: 10832, allocs: 316064, frees: 312880
total words: 65536, available: 83%
Allocator 8: used words: 10832, max used: 10832, allocs: 316064, frees: 312880
total words: 65536, available: 83%
Allocator 9: used words: 10832, max used: 10832, allocs: 316064, frees: 312880
total words: 65536, available: 83%
Allocator 10: used words: 10834, max used: 10834, allocs: 316064, frees: 312880
total words: 65536, available: 83%
Allocator 11: used words: 10825, max used: 10825, allocs: 316063, frees: 312880
total words: 65536, available: 83%
[Private Region]
Used words: 454, max used: 454, allocs: 521, frees: 5
Allocator 0: used words: 454, max used: 454, allocs: 521, frees: 5
total words: 4096, available: 88%
[Load Balance]
Allocator 0: used words: 144, max used: 144, allocs: 7, frees: 1
overflow, used words: 0, max used: 0, allocs: 0, frees: 0
total words: 6144, available: 97%
[SLT]
Allocator 0: used words: 0, max used: 0, allocs: 0, frees: 0
total words: 32768, available: 100%
[RPL]
Allocator 0: used words: 0, max used: 0, allocs: 0, frees: 0
total words: 2048, available: 100%
[REF]
Allocator 0: used words: 8, max used: 8, allocs: 1, frees: 0
total words: 8192, available: 99%
Egress memory is used for encapsulation structures, such as output VLAN IDs, forwarding MAC addresses and MPLS labels. 4 partitions out of 12 are in use and utilization of these 4 is less than 70%. Overall utilization is less than 30%.
root@rtme-ptx10:pfe> show jexpr jtm egress-memory summary chip 2
Show JTM Egress Memory Summary:
Pfe Chip: 2
Max Total Encap Memory Used (across all partitions in words) : 86155
Current Total Encap Memory Used (across all partitions in words) : 86155
PartitionID CurrType Total(words) Used(words) % MaxUsed(words) %
----------- -------- ------------ ----------- -- -------------- --
0 MacTbl 32768 0 0 0 0
1 UnusedPool 32768 0 0 0 0
2 UnusedPool 32768 0 0 0 0
3 UnusedPool 32768 0 0 0 0
4 Public 32768 18680 57 18680 57
5 Public 32768 30720 93 30720 93
6 UnusedPool 32768 0 0 0 0
7 Public 32768 30720 93 30720 93
8 Private 32768 6035 18 6035 18
9 UnusedPool 32768 0 0 0 0
10 Private 32768 0 0 0 0
11 Tunnel 4096 0 0 0 0
Configuration Generation Script
import sys
import ipaddress
left_ifd = 'et-0/0/4'
right_ifd = 'et-0/2/1'
mpls_ifd = 'et-0/2/2'
first_nbr = ipaddress.IPv4Address( "192.168.1.0")
ifl_count = 16000
nbr_count = 128
def generate_config():
print("interfaces {")
print("\t{:s} {{".format(left_ifd))
print("\t\tflexible-vlan-tagging;")
print("\t\tencapsulation flexible-ethernet-services;")
for i in range(0, ifl_count):
ivlan_left = i % 4000 + 1
ovlan_left = i // 4000 + 1
print( "\t\tunit {:d} {{".format( i+1))
print( "\t\t\tencapsulation vlan-ccc;")
print( "\t\t\tvlan-tags outer {:d} inner {:d};".format(ovlan_left, ivlan_left))
print( "\t\t\tinput-vlan-map {")
print( "\t\t\t\tswap-swap;")
print( "\t\t\t\tvlan-id 1;")
print( "\t\t\t\tinner-vlan-id 100;")
print( "\t\t\t}")
print( "\t\t\toutput-vlan-map swap-swap;")
print( "\t\t}")
print("\t}")
print("\t{:s} {{".format(right_ifd))
print("\t\tflexible-vlan-tagging;")
print("\t\tencapsulation flexible-ethernet-services;")
for i in range(0, ifl_count):
ivlan_right = i % 4000 + 1
ovlan_right = i // 4000 + 1 + 1000
print( "\t\tunit {:d} {{".format( i+1))
print( "\t\t\tencapsulation vlan-ccc;")
print( "\t\t\tvlan-tags outer {:d} inner {:d};".format(ovlan_right, ivlan_right))
print( "\t\t\tinput-vlan-map {")
print( "\t\t\t\tswap-swap;")
print( "\t\t\t\tvlan-id 1;")
print( "\t\t\t\tinner-vlan-id 100;")
print( "\t\t\t}")
print( "\t\t\toutput-vlan-map swap-swap;")
print( "\t\t}")
print("\t}")
print("}")
print("protocols {")
print("\tl2circuit {")
last_nbr_id = -1
vc_id = 1
for ifd in (left_ifd,right_ifd):
for i in range(0, ifl_count):
nbr_id = i // nbr_count
if nbr_id!=last_nbr_id:
if( last_nbr_id >= 0):
print("\t\t}") #close nbr container
print("\t\tneighbor {:s} {{".format( str(first_nbr+nbr_id)))
print("\t\t\tinterface {:s}.{:d} {{".format(ifd,i+1))
print("\t\t\t\tstatic {")
print("\t\t\t\t\tincoming-label {:d};".format(1000000+vc_id))
print("\t\t\t\t\toutgoing-label {:d};".format(1000000+vc_id))
print("\t\t\t\t}")
print("\t\t\t\tvirtual-circuit-id {:d};".format(vc_id))
print("\t\t\t}")
last_nbr_id = nbr_id
vc_id += 1
if( last_nbr_id >= 0):
print("\t\t}") #close nbr container
print("\t}")
print("\tmpls {")
for nbr_id in range(0,nbr_count):
print("\t\tstatic-label-switched-path p{:d} {{".format( nbr_id))
print("\t\t\tingress {")
print("\t\t\t\tnext-hop 192.168.0.2;")
print("\t\t\t\tto {:s};".format( str(first_nbr+nbr_id)))
print("\t\t\t\tpush {:d};".format( 1000000+nbr_id))
print("\t\t\t}")
print("\t\t}")
print("\t}")
print("}")
# execute
if __name__ == "__main__":
generate_config()
else:
pass
Glossary
- CCC: Circuit Cross-Connect
- IFL: Logical Interface
- LSP: Label Switched Path
- PE: Provider Edge
- PFE: Packet Forwarding Engine
