VPLS Reachability Issue Between DC and DRC (ACX5048 - VLAN 353)

  • 1.  VPLS Reachability Issue Between DC and DRC (ACX5048 - VLAN 353)

    Posted 07-28-2025 06:28
    Edited by Mostafa Nabil 08-01-2025 15:35

    Hello Community,

    I am working on a VPLS deployment using three Juniper ACX5048 routers and facing a reachability issue I'd like to get your insights on.

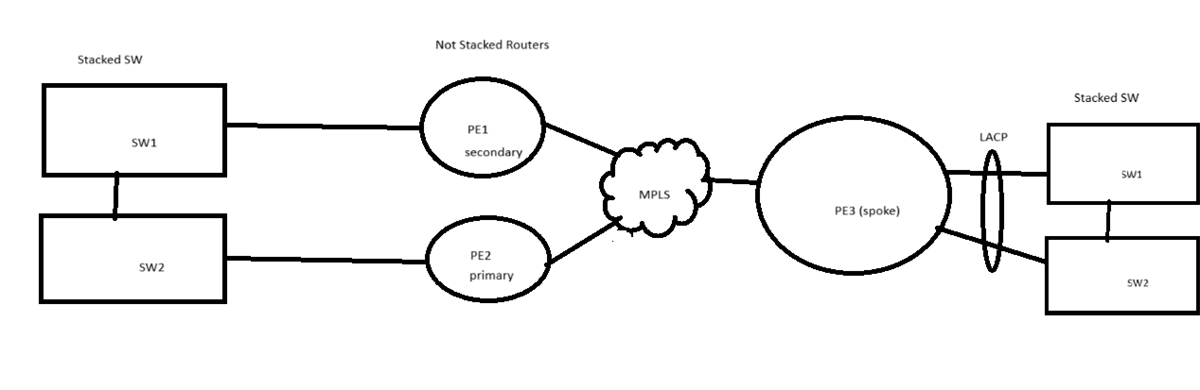

    Topology Overview:

    • PE1 and PE2 are located at the main site (DC), acting as Primary and Secondary VPLS PEs respectively.

    • PE3 is located at a remote site (DRC) and acts as the spoke in the VPLS topology.

    • PE1 and PE2 are individually connected to a stacked switch at the main site (note: the routers themselves are not stacked).

    • PE3 is connected to a stacked switch at the DRC via two links configured as an LACP bundle

      Topolgy

      Configuration Context:

      • PE2 is configured as the Primary VPLS PE.

      • PE1 is configured as the Secondary VPLS PE.
        using below

        PE1

        set interfaces ae2 unit 353 encapsulation vlan-vpls
        set interfaces ae2 unit 353 vlan-id 353

        set routing-instances RI-TCC-VPLS-SECONDARY-HUB instance-type vpls
        set routing-instances RI-TCC-VPLS-SECONDARY-HUB protocols vpls site TCC-CE interface ae2.353
        set routing-instances RI-TCC-VPLS-SECONDARY-HUB protocols vpls site TCC-CE site-identifier 1
        set routing-instances RI-TCC-VPLS-SECONDARY-HUB protocols vpls site TCC-CE multi-homing
        set routing-instances RI-TCC-VPLS-SECONDARY-HUB protocols vpls site TCC-CE site-preference backup
        set routing-instances RI-TCC-VPLS-SECONDARY-HUB protocols vpls site-range 5
        set routing-instances RI-TCC-VPLS-SECONDARY-HUB protocols vpls no-tunnel-services
        set routing-instances RI-TCC-VPLS-SECONDARY-HUB protocols vpls mac-flush
        set routing-instances RI-TCC-VPLS-SECONDARY-HUB forwarding-options family vpls filter input VPLS-FLOOD-FILTER
        set routing-instances RI-TCC-VPLS-SECONDARY-HUB interface ae2.353
        set routing-instances RI-TCC-VPLS-SECONDARY-HUB route-distinguisher 10.128.0.93:404
        set routing-instances RI-TCC-VPLS-SECONDARY-HUB vrf-import PS-VPLS-SECONDARY-IMPORT
        set routing-instances RI-TCC-VPLS-SECONDARY-HUB vrf-export PS-VPLS-SECONDARY-EXPORT

        -----------------------------------------------------------------------------------------------------
        PE2
        set interfaces ae2 unit 353 encapsulation vlan-vpls
        set interfaces ae2 unit 353 vlan-id 353

        set routing-instances RI-TCC-VPLS-PRIMARY-HUB instance-type vpls
        set routing-instances RI-TCC-VPLS-PRIMARY-HUB protocols vpls site TCC-CE interface ae2.353
        set routing-instances RI-TCC-VPLS-PRIMARY-HUB protocols vpls site TCC-CE site-identifier 1
        set routing-instances RI-TCC-VPLS-PRIMARY-HUB protocols vpls site TCC-CE multi-homing
        set routing-instances RI-TCC-VPLS-PRIMARY-HUB protocols vpls site TCC-CE site-preference primary
        set routing-instances RI-TCC-VPLS-PRIMARY-HUB protocols vpls site TCC-CE active-interface primary ae2.353
        set routing-instances RI-TCC-VPLS-PRIMARY-HUB protocols vpls site-range 5
        set routing-instances RI-TCC-VPLS-PRIMARY-HUB protocols vpls no-tunnel-services
        set routing-instances RI-TCC-VPLS-PRIMARY-HUB forwarding-options family vpls filter input VPLS-FLOOD-FILTER
        set routing-instances RI-TCC-VPLS-PRIMARY-HUB interface ae2.353
        set routing-instances RI-TCC-VPLS-PRIMARY-HUB route-distinguisher 10.128.0.94:404
        set routing-instances RI-TCC-VPLS-PRIMARY-HUB vrf-import PS-VPLS-PRIMARY-IMPORT
        set routing-instances RI-TCC-VPLS-PRIMARY-HUB vrf-export PS-VPLS-PRIMARY-EXPORT

        --------------------------------------------------------------------
        PE3 spoke
        set interfaces ae8 unit 353 encapsulation vlan-vpls
        set interfaces ae8 unit 353 vlan-id 353

        set routing-instances RI-TCC-VPLS-SPOKE instance-type vpls
        set routing-instances RI-TCC-VPLS-SPOKE protocols vpls site CE-2 site-identifier 2
        set routing-instances RI-TCC-VPLS-SPOKE protocols vpls site-range 5
        set routing-instances RI-TCC-VPLS-SPOKE protocols vpls no-tunnel-services
        set routing-instances RI-TCC-VPLS-SPOKE forwarding-options family vpls filter input VPLS-FLOOD-FILTER
        set routing-instances RI-TCC-VPLS-SPOKE interface ae8.353
        set routing-instances RI-TCC-VPLS-SPOKE route-distinguisher 10.128.0.2:404
        set routing-instances RI-TCC-VPLS-SPOKE vrf-import PS-VPLS-SPOKE-IMPORT
        set routing-instances RI-TCC-VPLS-SPOKE vrf-export PS-VPLS-SPOKE-EXPORT

    Issue Observed:

    When I add VLAN 353 to the VPLS routing instances on both PE1 and PE2, there is no connectivity between the DC and DRC.

    However, when I remove VLAN 353 from PE1, reachability between DC and DRC is restored.

    Could anyone assist in identifying the root cause of this issue? I've attached the relevant configuration snippets below.



    ------------------------------
    Mostafa Nabil
    ------------------------------
