  • 1.  OSPF+BFD on flapping channel

    Posted 08-12-2025 18:01

    Greetings.

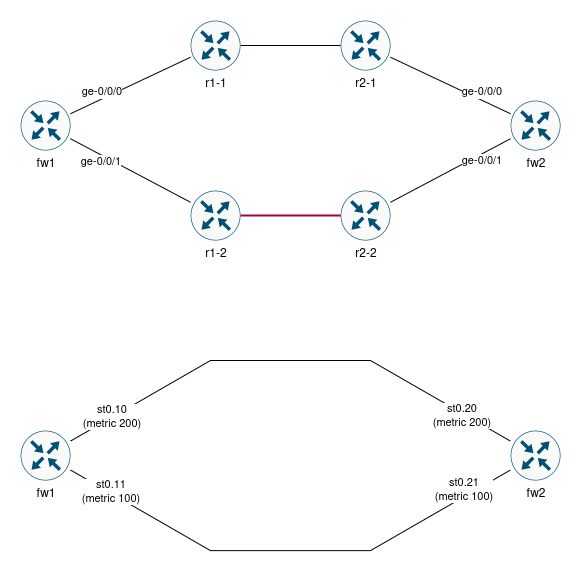

    I have two vSRXes marked fw1 and fw2 on the image below. On physical level, fw1 and fw2 are connected via two separate sets of intermediate routers: ge-0/0/0<->ge-0/0/0, ge-0/0/1<->ge-0/0/1. Over these two interfaces I set up IPSec tunnels between fw1 and fw2: st0.10<->st0.20, st0.11<->st0.21. I also set OSPF+BFD based dynamic routing, st0.11<->st0.21 routes are preferred due to metrics.

    Dynamic routing settings look like this:

    protocols {
        ospf {
            area 0.0.0.0 {
                interface st0.10 {
                    interface-type p2p;
                    metric 200;
                    bfd-liveness-detection {
                        minimum-interval 100;
                        multiplier 10;
                    }
                }
                interface st0.11 {
                    interface-type p2p;
                    metric 100;
                    bfd-liveness-detection {
                        minimum-interval 100;
                        multiplier 10;
                    }
                }
            }
        }
    }

    Now I'm trying to see if BFD improves convergence time for OSPF. I'm tearing down the connection marked red, so neither physical no tunnel interfaces go down on fw1 and fw2, but traffic stops going.

    When I tear down the connection only once, it works perfectly. Up to 3 seconds with my settings, and traffic switches to the working tunnel. When I restore the connection, it switches back without visible packet loss.

    When I simulate interface flapping, the results aren't what I expect. For example, with my current settings, if I wait 10 seconds and then disconnect the connection a second time, the traffic stops. The routes won't switch to the working tunnel until the OSPF dead-interval timer expires, which takes up to 40 seconds. I guess, BFD session changes aren't propagated to OSPF due to BFD's holddown-interval, so that's why we are back to OSPF counters.

    Is there a way to improve BFD behavior on flapping channel?

    And more importantly, I don't want to return immediately to the first tunnel once BFD session is back again. Is there a way to work for example one minute on the secondary channel and only then switch back to primary?



    -------------------------------------------


  • 2.  RE: OSPF+BFD on flapping channel

    Posted 08-15-2025 08:00

    Managed to figure it out by myself. The following configuration does everything I wanted:

    protocols {
        ospf {
            area 0.0.0.0 {
                interface st0.10 {
                    interface-type p2p;
                    metric 200;
                    bfd-liveness-detection {
                        minimum-interval 100;
                        multiplier 10;
                        holddown-interval 60000;
                    }
                    strict-bfd;
                }
                interface st0.11 {
                    interface-type p2p;
                    metric 100;
                    bfd-liveness-detection {
                        minimum-interval 100;
                        multiplier 10;
                        holddown-interval 60000;
                    }
                    strict-bfd;
                }
            }
        }
    }

    Strict BFD doesn't allow OSPF neighbor to enter full state until BFD session is established, and session is not considered established until holddown-interval counter is not 0.

    # show ospf neighbor
    Address          Interface              State           ID               Pri  Dead
    10.255.0.0       st0.20                 InitStrictBFD   10.1.0.0         128    35
    10.255.0.3       st0.21                 Full            10.3.0.0         128    34

    # show bfd session
                                                      Detect   Transmit
    Address                  State     Interface      Time     Interval  Multiplier
    10.255.0.0               Up        st0.20         1.000     0.100        10
     Client OSPF realm ospf-v2 Area 0.0.0.0, TX interval 0.100, RX interval 0.100
            Hold-time 60.000, client-state client in hold-down
     Session up time 00:00:40
    -------------------------------------------
