Hi Juniper Community,

We are currently troubleshooting a CoA behavior in a Juniper Mist Edge deployment and would like to validate the expected flow and the recommended troubleshooting path.

Environment summary:
- Juniper Mist Edge running as a VM
- VM deployed following the official Mist Edge VM requirements
- Tunneled WLAN through Mist Edge
- RADIUS Proxy enabled through Mist Edge
- CoA/DM Server enabled
- External RADIUS server / Cisco ISE used for guest portal authentication
- WLAN used for guest/captive portal access
- Client traffic is tunneled through Mist Edge

What we are observing:
- The wireless client associates successfully to the SSID.
- DHCP, Gateway ARP, and DNS are successful in the Mist client events.
- Portal redirection is shown as "Processed" and then "In Progress".
- The RADIUS server appears to send the CoA/DM request.
- However, after the CoA, we do not see the expected re-authentication event in Mist/Mist Edge logs.
- The client remains stuck in the final portal redirection stage and does not appear to move to the final authorization state.

Based on the Mist Edge documentation, the expected behavior after CoA is:
1. RADIUS server sends the CoA request.
2. Mist Edge sends a CoA ACK.
3. Mist Edge/Mist Cloud redirects the CoA/DM to the correct AP/client.
4. A new RADIUS authentication exchange should occur.
5. The final Access-Accept should no longer include the redirect URL.

In our case, this final re-authentication does not appear to be happening.

Questions:
1. Which logs should we collect on Mist Edge or Mist Cloud to confirm that the CoA was correctly mapped to the right AP/client?
2. Should the post-CoA re-authentication be visible in the Mist client event timeline, or only on the RADIUS server side?
3. Are there mandatory RADIUS attributes required for CoA matching, such as Event-Timestamp, Calling-Station-Id format, Acct-Session-Id, NAS-IP-Address, or any Mist-specific attributes?
4. Could this behavior be related to a mismatch between the RADIUS NAD IP, Mist Edge OOBM IP, Tunnel IP as Source, or the CoA/DM server configuration?
5. Is there any specific limitation or additional requirement when Mist Edge is deployed as a VM for tunneled WLAN + guest portal + CoA?
6. Is there any recommended packet capture point to validate the CoA flow end-to-end: ISE → Mist Edge → Mist Cloud → AP/client?

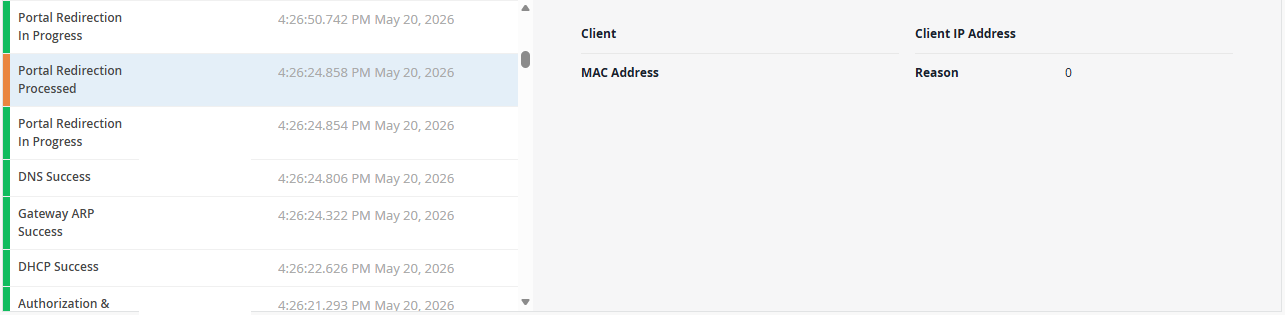

We also attached a screenshot from the Mist client events showing DHCP Success, Gateway ARP Success, DNS Success, and Portal Redirection Processed/In Progress, but no visible re-authentication after CoA.

Any guidance would be appreciated.

Thank you.
