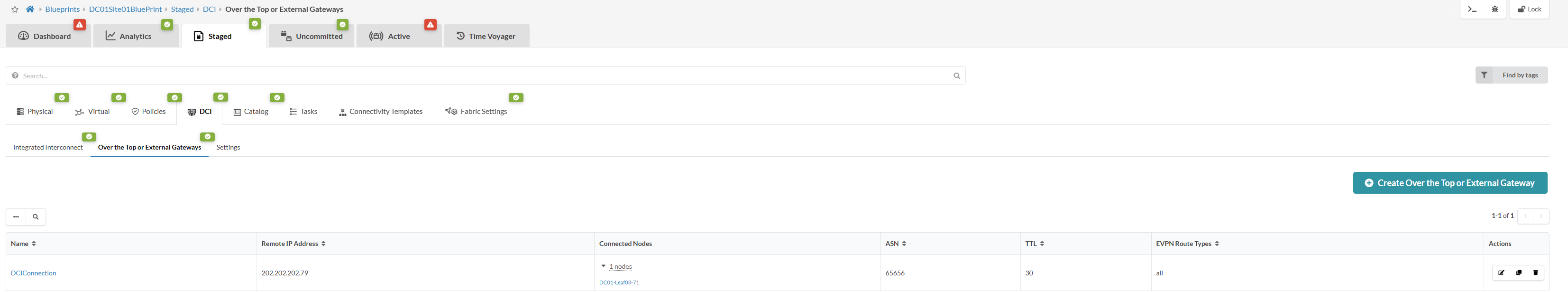

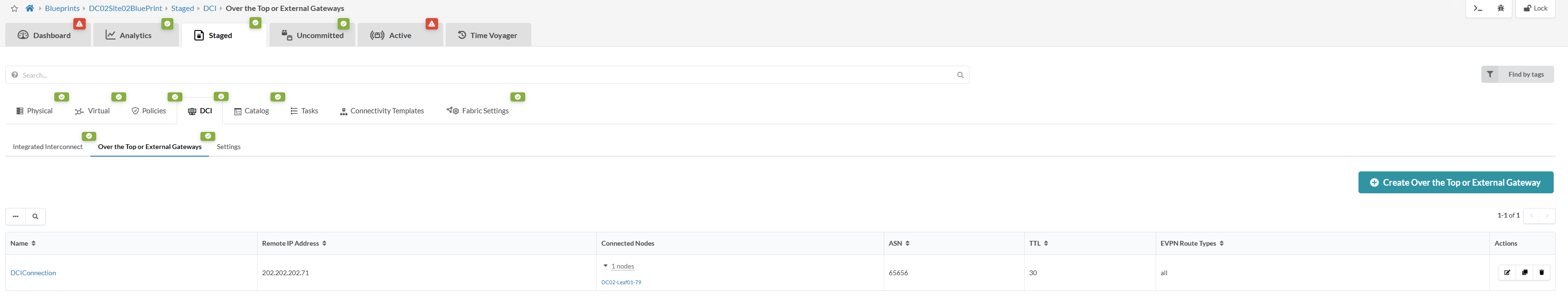

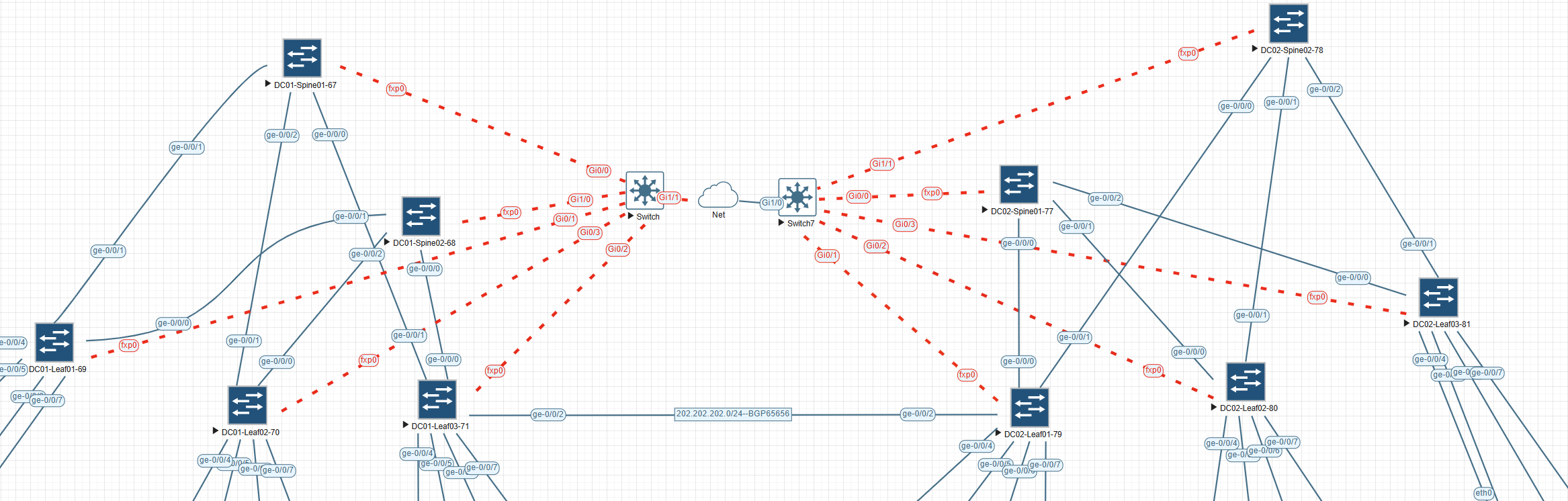

Hello Team , am trying to establish DCI connection using the following Apstra using ge0/0/2 interface with Snapshot but still it is not working .
Thanks for your feedback.
************************************************************
admin@DC01-Leaf03-71# run show configuration routing-instances
ProdTenant {
instance-type vrf;
routing-options {
graceful-restart;
multipath;
auto-export;
}
protocols {
evpn {
irb-symmetric-routing {
vni 10000;
}
ip-prefix-routes {
advertise direct-nexthop;
encapsulation vxlan;
vni 10000;
export BGP-AOS-Policy-ProdTenant;
}
}
}
description ProdTenant;
interface irb.100;
interface irb.101;
interface irb.102;
interface irb.103;
interface lo0.2;
route-distinguisher 10.100.102.4:1000;
vrf-target target:10000:1;
}
evpn-1 {
instance-type mac-vrf;
protocols {
evpn {
encapsulation vxlan;
default-gateway do-not-advertise;
duplicate-mac-detection {
auto-recovery-time 9;
}
extended-vni-list all;
vni-options {
vni 10100 {
vrf-target target:10100:1;
}
vni 10101 {
vrf-target target:10101:1;
}
vni 10102 {
vrf-target target:10102:1;
}
vni 10103 {
vrf-target target:10103:1;
}
}
}
}
vtep-source-interface lo0.0;
service-type vlan-aware;
interface ge-0/0/4.0;
interface ge-0/0/5.0;
interface ge-0/0/6.0;
interface ge-0/0/7.0;
route-distinguisher 10.100.102.4:65534;
vrf-target target:100:100;
vlans {
vn100 {
description VLAN100---VLAN100;
vlan-id 100;
l3-interface irb.100;
vxlan {
vni 10100;
}
}
vn101 {
description VLAN101;
vlan-id 101;
l3-interface irb.101;
vxlan {
vni 10101;
}
}
vn102 {
description VLAN102;
vlan-id 102;
l3-interface irb.102;
vxlan {
vni 10102;
}
}
vn103 {
description VLAN103;
vlan-id 103;
l3-interface irb.103;
vxlan {
vni 10103;
}
}
}
}
mgmt_junos {
routing-options {
static {
route 192.168.3.0/24 next-hop 192.168.3.3;
}
}
description mgmtjunos;
}
[edit]
admin@DC01-Leaf03-71# run show configuration interfaces ge-0/0/2
unit 0 {
family inet;
}
[edit]
admin@DC01-Leaf03-71#
[edit]
admin@DC01-Leaf03-71# run show bgp summary
Warning: License key missing; requires 'BGP' license
Threading mode: BGP I/O
Default eBGP mode: advertise - accept, receive - accept
Groups: 3 Peers: 5 Down peers: 1
Table Tot Paths Act Paths Suppressed History Damp State Pending
inet.0
16 10 0 0 0 0
bgp.evpn.0
36 18 0 0 0 0
Peer AS InPkt OutPkt OutQ Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped...
10.100.101.4 65100 126 123 0 0 54:42 Establ
inet.0: 5/8/8/0
10.100.101.10 65101 124 122 0 0 54:13 Establ
inet.0: 5/8/8/0
10.100.102.0 65100 132 127 0 0 54:38 Establ
bgp.evpn.0: 18/18/18/0
evpn-1.evpn.0: 8/8/8/0
ProdTenant.evpn.0: 10/10/10/0
__default_evpn__.evpn.0: 0/0/0/0
10.100.102.1 65101 132 125 0 0 54:12 Establ
bgp.evpn.0: 0/18/18/0
evpn-1.evpn.0: 0/8/8/0
ProdTenant.evpn.0: 0/10/10/0
__default_evpn__.evpn.0: 0/0/0/0
202.202.202.79 65656 0 0 0 0 25:10 Active
[edit]
admin@DC01-Leaf03-71#
************************************************************
[edit]
admin@DC02-Leaf01-79# run show configuration routing-instances
ProdTenant {
instance-type vrf;
routing-options {
graceful-restart;
multipath;
auto-export;
}
protocols {
evpn {
irb-symmetric-routing {
vni 10000;
}
ip-prefix-routes {
advertise direct-nexthop;
encapsulation vxlan;
vni 10000;
export BGP-AOS-Policy-ProdTenant;
}
}
}
interface irb.100;
interface irb.101;
interface irb.102;
interface irb.103;
interface lo0.2;
route-distinguisher 10.200.102.2:1000;
vrf-target target:10000:1;
}
evpn-1 {
instance-type mac-vrf;
protocols {
evpn {
encapsulation vxlan;
default-gateway do-not-advertise;
duplicate-mac-detection {
auto-recovery-time 9;
}
extended-vni-list all;
vni-options {
vni 10100 {
vrf-target target:10100:1;
}
vni 10101 {
vrf-target target:10101:1;
}
vni 10102 {
vrf-target target:10102:1;
}
vni 10103 {
vrf-target target:10103:1;
}
}
}
}
vtep-source-interface lo0.0;
service-type vlan-aware;
interface ge-0/0/4.0;
interface ge-0/0/5.0;
interface ge-0/0/6.0;
interface ge-0/0/7.0;
route-distinguisher 10.200.102.2:65534;
vrf-target target:100:100;
vlans {
vn100 {
description VLAN100;
vlan-id 100;
l3-interface irb.100;
vxlan {
vni 10100;
}
}
vn101 {
description VLAN101;
vlan-id 101;
l3-interface irb.101;
vxlan {
vni 10101;
}
}
vn102 {
description VLAN102;
vlan-id 102;
l3-interface irb.102;
vxlan {
vni 10102;
}
}
vn103 {
description VLAN103;
vlan-id 103;
l3-interface irb.103;
vxlan {
vni 10103;
}
}
}
}
mgmt_junos {
routing-options {
static {
route 192.168.3.0/24 next-hop 192.168.3.3;
}
}
description mgmtjunos;
}
[edit]
admin@DC02-Leaf01-79#
[edit]
admin@DC02-Leaf01-79# run show configuration interfaces ge-0/0/2
unit 0 {
family inet;
}
[edit]
admin@DC02-Leaf01-79#
[edit]
[edit]
admin@DC02-Leaf01-79# run show bgp summary
Warning: License key missing; requires 'BGP' license
Threading mode: BGP I/O
Default eBGP mode: advertise - accept, receive - accept
Groups: 3 Peers: 5 Down peers: 1
Table Tot Paths Act Paths Suppressed History Damp State Pending
inet.0
16 10 0 0 0 0
bgp.evpn.0
36 18 0 0 0 0
Peer AS InPkt OutPkt OutQ Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped...
10.200.101.0 65500 152 151 0 0 1:07:18 Establ
inet.0: 5/8/8/0
10.200.101.6 65501 153 150 0 0 1:07:08 Establ
inet.0: 5/8/8/0
10.200.102.0 65500 176 161 0 0 1:07:13 Establ
bgp.evpn.0: 5/18/18/0
ProdTenant.evpn.0: 5/10/10/0
evpn-1.evpn.0: 4/8/8/0
__default_evpn__.evpn.0: 0/0/0/0
10.200.102.1 65501 176 160 0 0 1:07:02 Establ
bgp.evpn.0: 13/18/18/0
ProdTenant.evpn.0: 5/10/10/0
evpn-1.evpn.0: 4/8/8/0
__default_evpn__.evpn.0: 0/0/0/0
202.202.202.71 65656 0 0 0 0 23:01 Active
[edit]
admin@DC02-Leaf01-79#
************************************************************
Regards
uni
------------------------------
[uni1389]
------------------------------
