Juniper MPLS Lab 4 Traffic Protection step 4.3 | primary and secondary RSVP seesion up without standby

  • 1.  Juniper MPLS Lab 4 Traffic Protection step 4.3 | primary and secondary RSVP seesion up without standby

    Posted 8 days ago

    I'm working on my labs with Junos OS. i use remote VPN to school to cont routers mxA-1 & -2.

    now working on the Traffic Protection subject (Lab 4). i have created the secondray path called 'any-path'. this path is empty and suppose to use any alternative way if primary path is disabled (on lab) or fall in real sanrio.

    now my ge-0/0/0 is in enable status and working fine. before adding the secoundy part all worked fine and the the stricted primry path was up. after creating the secondary path and commited i excuted the 'show rsvp session ingress detial' to confirm that only the primary path is up as suggusted in the lab. the lab staged that if standby wan't declared only primary path shoud be up. but for my suppsie both rsvp session are on! primary and secondary.. any suggustion?

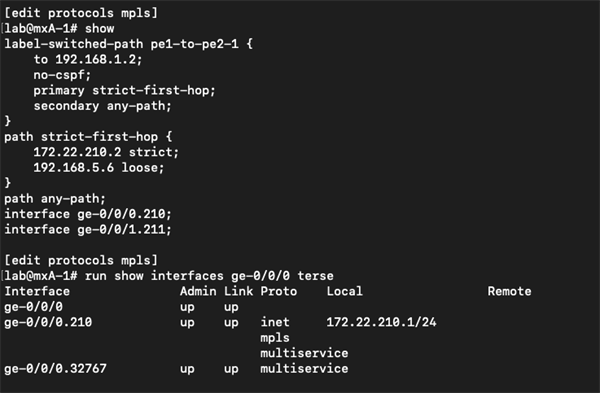

    he is prints of my outputs for you from mxA-1 only (to save length of messge):

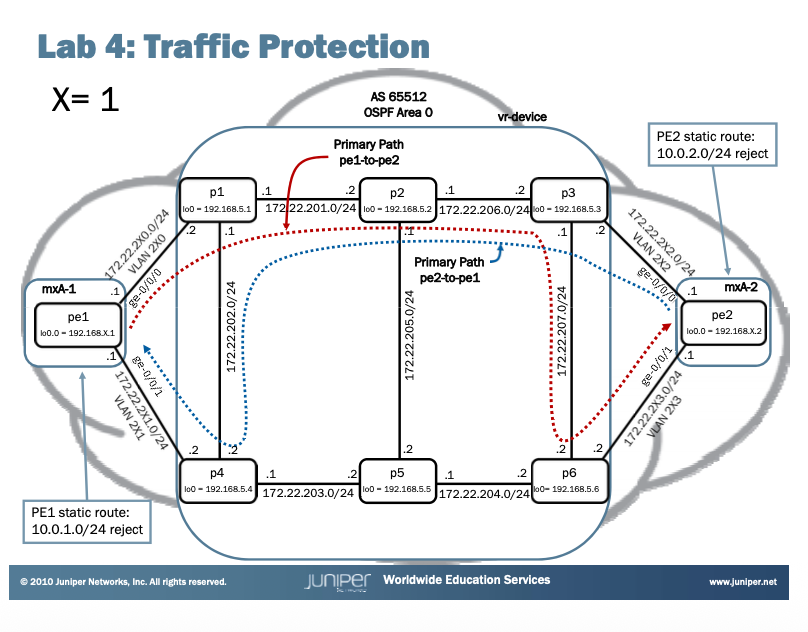

    digram:
    thank you


    ------------------------------
    Yosef Gehasy
    ------------------------------
