Next Generation Port Extender (NGPE): The Right Interface Speed on the Right Box, for the AI Era

By Pankaj Kumar posted 17 days ago



Why we need this NGPE Solution

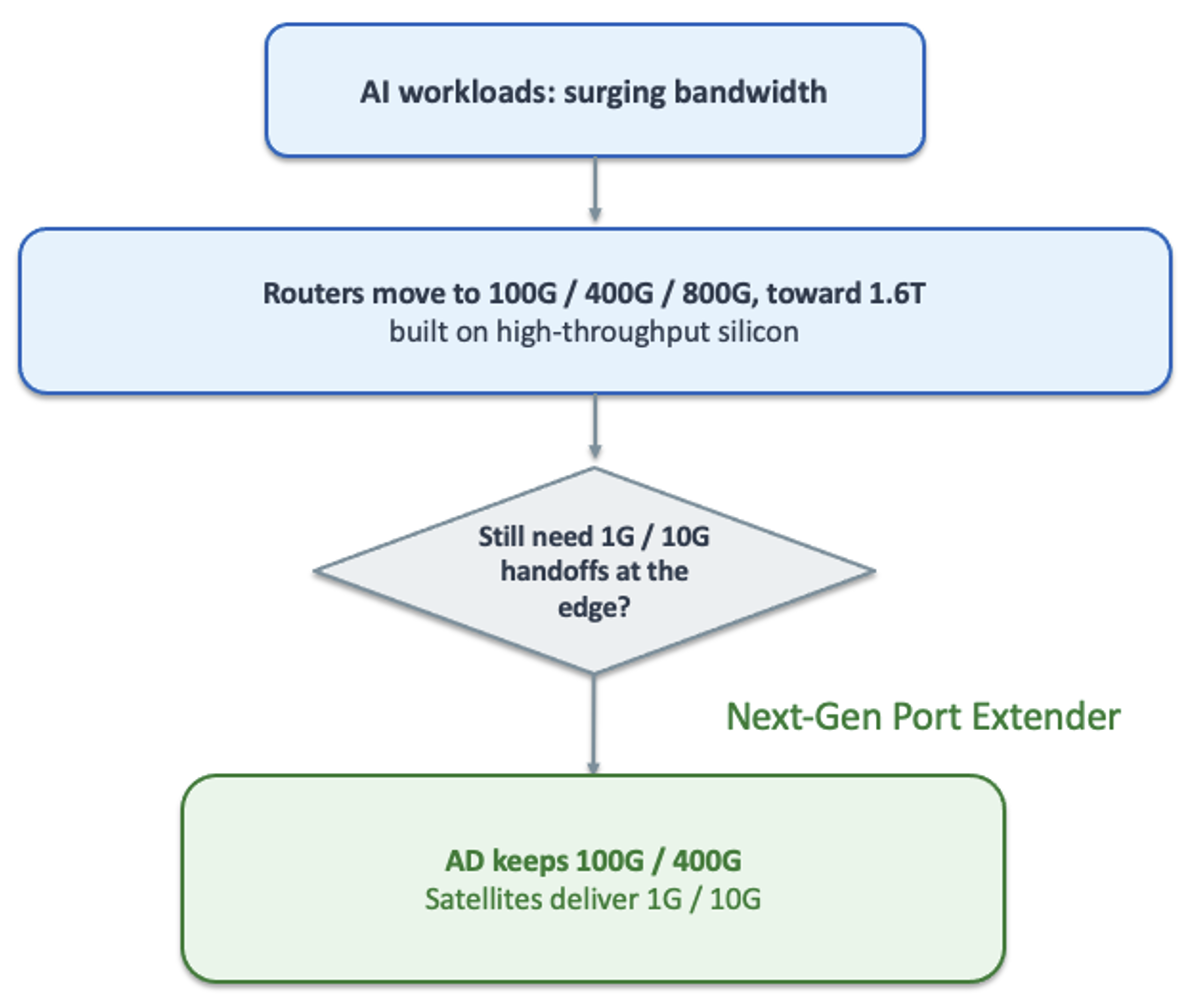

We’re in the middle of a bandwidth step-change. AI workloads — training clusters, inference pipelines, and the east-west traffic they generate — are driving bandwidth utilization to levels the industry hasn’t seen before. To keep up, network platforms are moving to ever-higher-capacity interfaces: 100G and 400G today, 800G now shipping, and the industry already moving toward 1.6T Ethernet.

Those interfaces are built on a new generation of high-throughput forwarding silicon. A modern aggregation router is designed, end to end, to drive high-speed ports at terabits per second — exactly what you want facing the core and the high-bandwidth uplinks.

But there’s a catch at the edge. Networks still need to hand off 1G and 10G to real-world access — customer ports, legacy devices, lower-speed aggregation. If you put those low-speed ports on the same high-throughput router, two things go wrong:

  1. You waste valuable space. Faceplate and slot real estate on a high-capacity platform is precious. Filling it with 1G/10G ports consumes room that should be carrying high-speed interfaces.
  2. You can’t enjoy the full capacity of the ASIC. A forwarding engine built to move terabits ends up tied down serving a handful of 1G/10G handoffs. The expensive, high-throughput silicon is underutilized — you paid for capacity you can’t use.
So the question is: how do you keep the high-capacity router doing what it does best, while still landing all the 1G/10G ports you need — without stranding ASIC capacity or wasting slots?


The answer is the Next-Generation Port Extender

Next Generation Port Extender


Juniper’s Next-Generation Port Extender, and the successor to Junos Fusion — combines one Aggregation Device (AD), an MX router, with one or more Satellite Devices (SD) such as a QFX5120-48Y-8C or an EX4400-48T, and operates them as a single logical router.

JNU delivers a single-node experience across two physical boxes. The control plane — including the management plane where Junos Node Unifier lives — runs on the MX aggregation device, while the data plane is distributed across both the MX and its satellites. To operators, it’s simply one router.

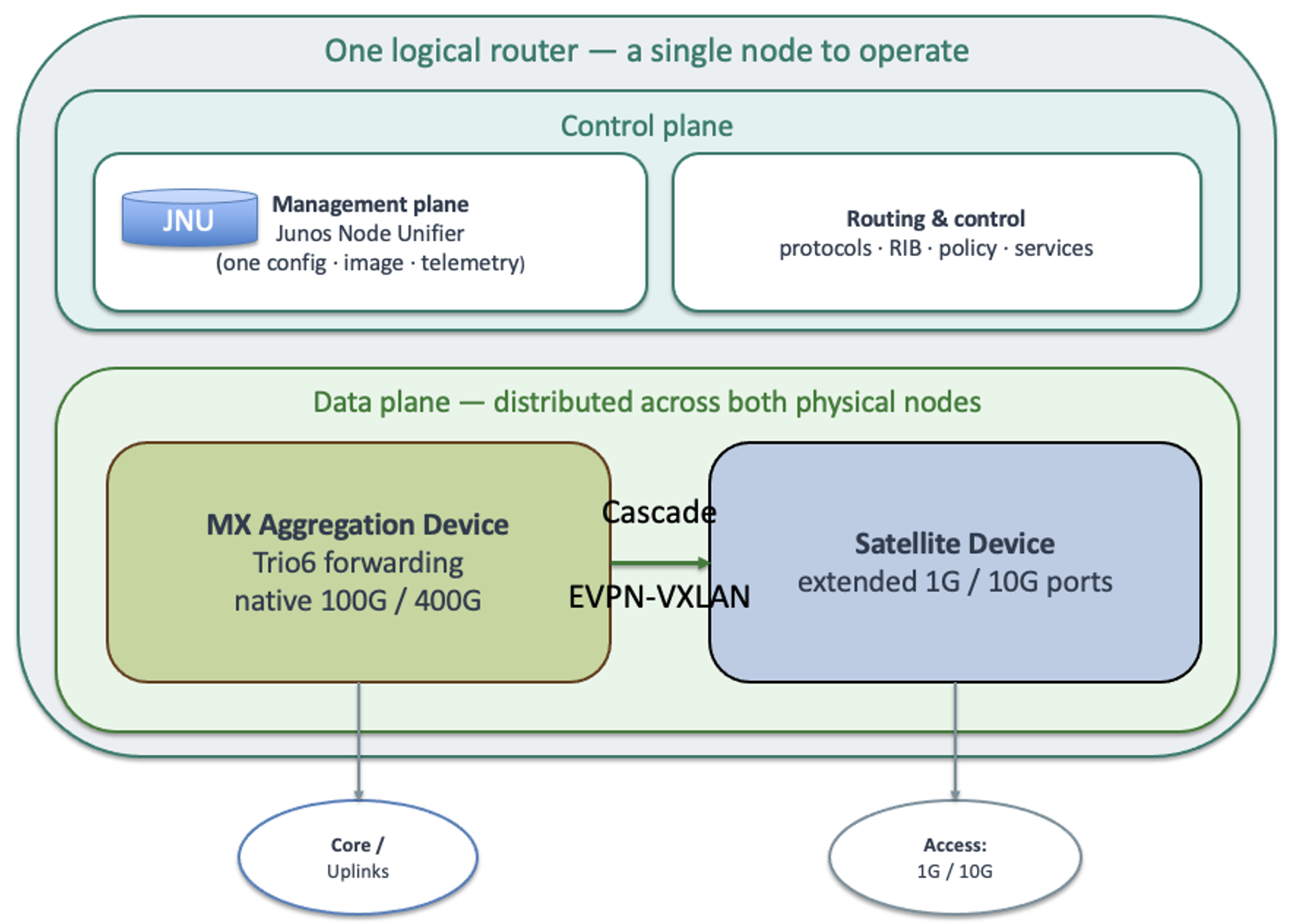

Two boxes, one brain: JNU Controller maintain single control and management plane on the MX and projects it across the satellites, so the aggregation device and its satellites operate — and are managed — as one unified node.

The division of labor maps directly to the AI-era problem above:
  • The aggregation device keeps the high-speed interfaces — native 100G/400G facing the core and uplinks — and its high-throughput Trio6 silicon stays fully utilized doing what it’s built for.
  • The satellites provide the low-speed ports — native 1G/10G handoffs — at a fraction of the cost and without consuming slots on the high-capacity router.

The satellites’ front-panel ports appear on the aggregation device as if they were native line-card ports. Add a satellite, and you’ve added 1G/10G ports — not another router to manage. And because the forwarding intelligence stays on the MX and its Trio6 silicon, every inexpensive satellite port inherits carrier-class capability it could never deliver on its own. Cheap ports, MX-grade scale.


“The satellite gives you the ports. The MX gives them superpowers.”


Simplify the Network: Many Boxes, One Logical Router


The port-extender model attacks a problem operators know well: cost scales with the number of managed nodes, not the traffic they carry. Every standalone access or aggregation switch adds its own image, configuration, telemetry stream, and sparing burden.

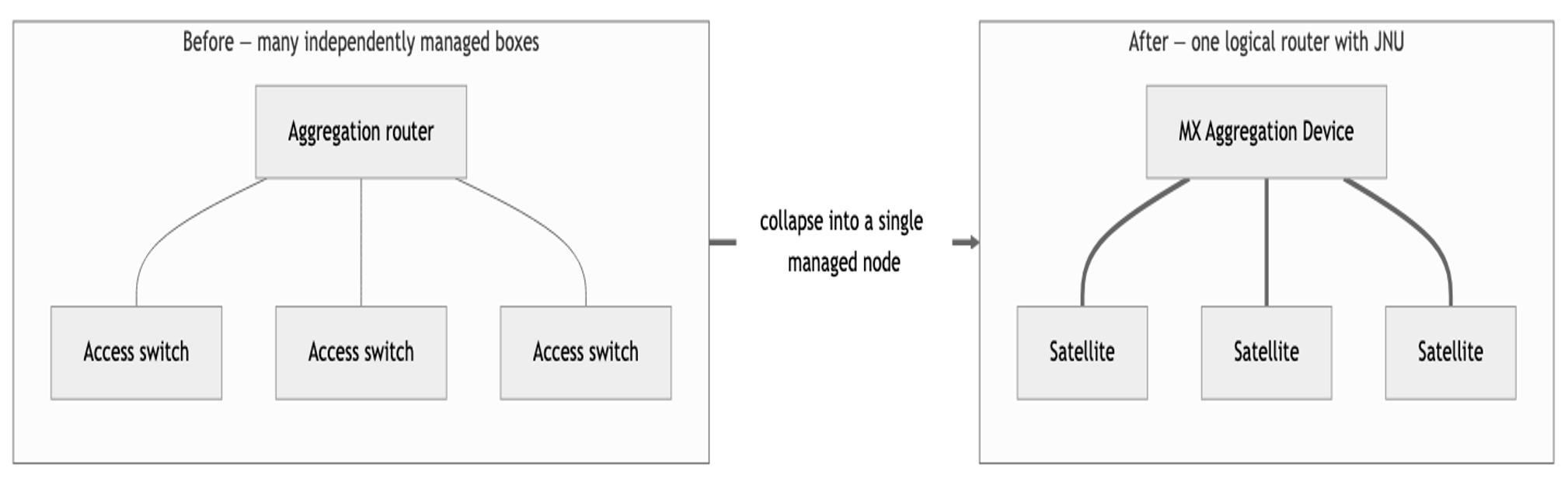

With JNU, all those boxes collapse into one logical router. One image to qualify. One configuration to maintain. One telemetry model. One system to upgrade. The port count grows; the number of things you manage doesn’t.

How it works

JNU keeps a clean division of labor: the aggregation device is the brain act as Controller ; the satellites are Clients.



  • The MX aggregation device owns the intelligence. All routing, forwarding, policy, and services live on the MX and its Trio6 forwarding silicon.

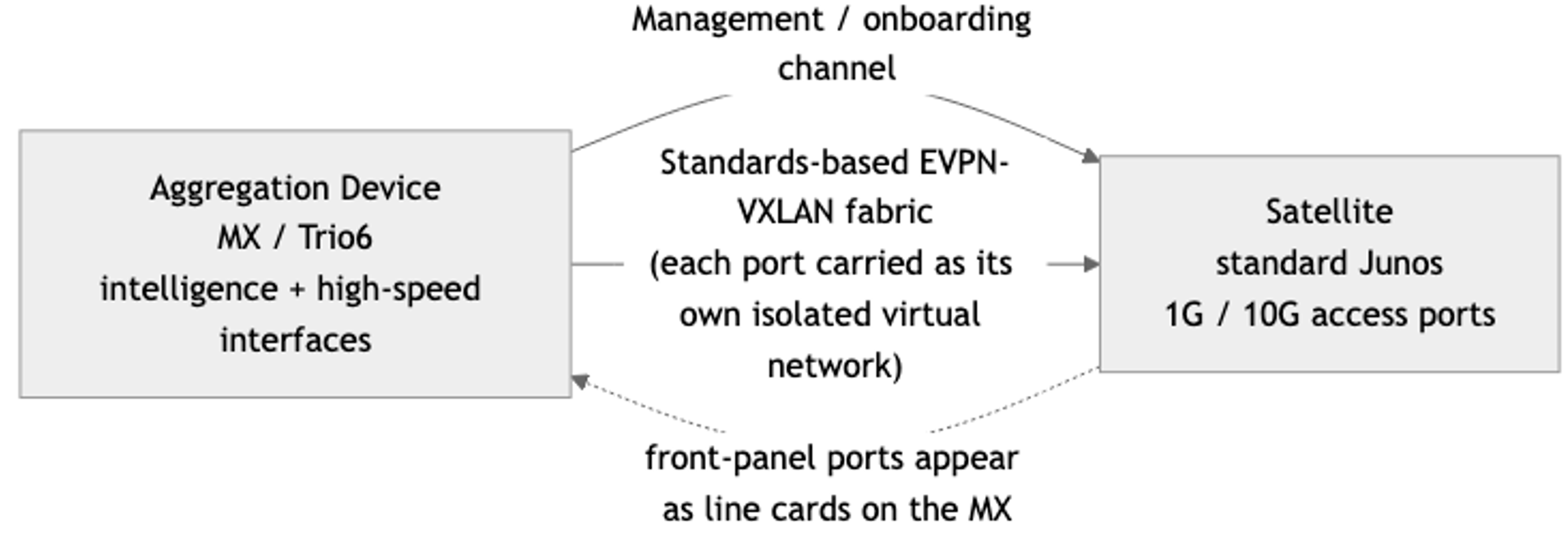

  • Satellites project ports back to the MX. Each satellite connects over a cascade link and becomes, in effect, a remote line card; its 1G/10G front-panel ports show up on the MX and are managed there.
  • A standards-based EVPN-VXLAN fabric carries the traffic. The cascade carries a management/onboarding channel plus a standards-based EVPN-VXLAN fabric, with each extended port carried as its own isolated virtual network — proven, scalable technology operators already run in their data-center and metro fabrics.
  • Satellites run standard Junos. JNU satellites are ordinary Junos switches, not a special version-locked image — so you get broad, modern hardware choices and can mix satellite models behind one aggregation device.
  • One point of management. The system is defined on the aggregation device, and satellite provisioning is rendered and pushed automatically.
The mental model is simple: put the high-speed interfaces and the intelligence on the MX, put the low-speed ports on satellites, and let the MX’s Trio6 forwarding plane give those ports their power.

NGPE Satellite with Trio6

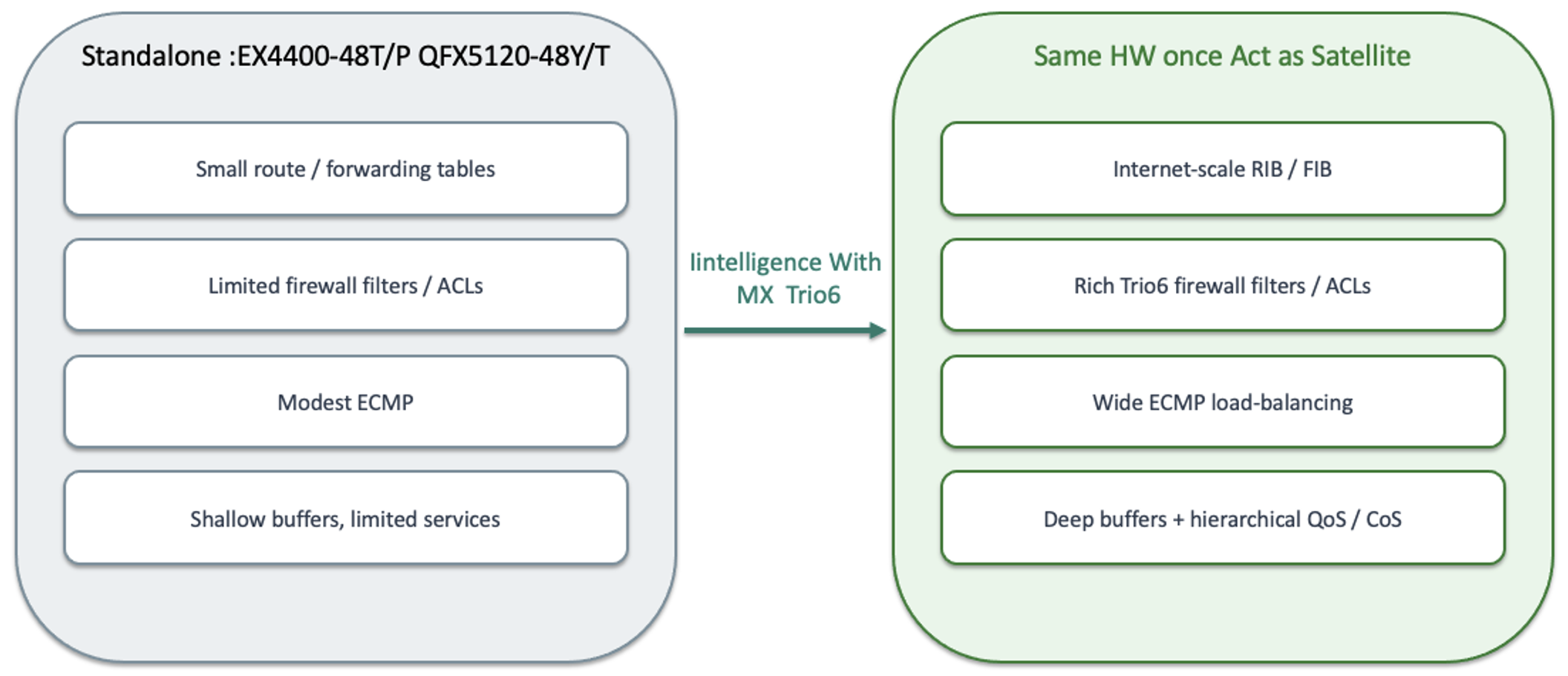

On their own, EX4400-48P/T and QFX5120-48T/Y access switches are low-capacity, limited-scale boxes — by design, they’re affordable, dense, and simple. Standing alone, they carry small route/forwarding tables, limited firewall-filter and ACL capacity, modest ECMP, shallow buffers, and a limited feature set. For many edge locations, that isn’t enough on its own.
NGPE changes the equation. Because the satellite’s 1G/10G ports surface as line-card ports on the MX, and the MX’s Trio6 silicon does the forwarding, every inexpensive access port inherits MX-class scale and features it could never reach standalone.


Put simply: the satellite gives you affordable 1G/10G port density; the MX gives those ports carrier-class intelligence and scale — while its own high-speed interfaces and ASIC stay fully utilized.
That combination pays off across the network:
  • Grow ports, not managed nodes. Extend the MX with cost-effective satellite shelves instead of deploying more full routers — and pay as you grow.
  • Keep the high-capacity router efficient. No more stranding terabit-class silicon or premium slots on 1G/10G handoffs.
  • Standard based Fabric. Fabric is built with standard EVPN-VXLAN no more Specific TAG or proprietary mechanism to forward packets.

The operational game-changer: zero fabric engineering

Every port extender promises simpler operations. JNU is the only one that gives you a full EVPN-VXLAN fabric without asking you to build one.
Under the hood, JNU runs on a proven routing fabric — an OSPF underlay for reachability and an EVPN-VXLAN (BGP-EVPN) overlay for transport. In any other design, that’s precisely the part operators dread: designing, configuring, and maintaining IGP and BGP-EVPN by hand across every node, and keeping it all in sync as the network grows.
With JNU, you never touch it. JNU and its commit scripts automatically generate and push the entire OSPF underlay, the EVPN-VXLAN overlay, and every per-port mapping to the satellites as you onboard them. You express intent at the port level; JNU renders the fabric beneath it and keeps it consistent — automatically.
That’s the operational-efficiency story in one line: fabric-grade capability, zero fabric engineering. No IGP to design. No BGP-EVPN to configure. No VXLAN to hand-stitch. It’s the difference between port extension you operate and port extension that operates itself — and it’s unique to NGPE Solution.

From first-generation port extenders to the next generation

The single-logical-router model isn’t new. Junos Fusion — and Junos Fusion Provider Edge in particular — pioneered it for service providers, and other vendors built their own proprietary satellite and port-extension architectures alongside it. Call them what they are: first-generation port extenders. They proved the model, and they served operators well.
  • Proprietary transport and silicon that lock you to one vendor’s satellites
  • A special satellite software image, lifecycle-locked to the aggregation device
  • A limited, aging set of qualified satellite hardware
  • A rigid or hand-built fabric that’s complex to stand up and operate
  • Per-port scale bounded by the low-cost satellite
  • A legacy lifecycle and an uncertain roadmap

JNU is the next generation. For operators running Junos Fusion today, moving to it is an evolution, not a reinvention: the MX stays the aggregation device, the satellites become modern standard-Junos switches, and the whole system lands on an open, automated, standards-based fabric — one you never have to build.

But across every vendor, first-generation port extenders share the same pain points:


Dimension First-Generation Port Extenders Next-Generation Port Extender with JNU
Model AD + satellites as one logical node Same — one logical router
Transport / data plane Proprietary satellite extension or (802.1BR) Standards-based EVPN-VXLAN
Satellite software Special image, lifecycle-locked to the AD Standard Junos Software
Satellite hardware Limited, aging qualified SKUs HW can be anything EX,QFX,ACX or could be 3rd Party
Fabric setup Rigid / hand-built, complex to operate Fully automated — OSPF + EVPN-VXLAN built by JNU + commit scripts; no fabric to build
Openness Proprietary, one vendor’s satellites only Open by design — extensible to third-party nodes
Lifecycle / roadmap Legacy, steady-state Actively developed go-forward


Why it matters

Strip away the technology and the value is simple: NGPE puts the right interface speed on the right box, and lets you scale ports and per-port capability without scaling the number of things you manage.

  • Built for the AI-era edge. Keep the aggregation router’s high-speed interfaces and high-throughput silicon fully utilized, while satellites handle the 1G/10G handoffs — no wasted slots, no stranded ASIC capacity.
  • Best-of-both economics. Low-cost satellites deliver the ports; the MX with Trio6 delivers the scale and features. Stop over-buying routers just to get capable low-speed ports.
  • Zero fabric engineering. JNU and its commit scripts build and maintain the entire OSPF + EVPN-VXLAN fabric for you — fabric-grade capability with none of the fabric work.
  • The next-generation upgrade path. As the successor to first-generation port extenders like Junos Fusion, JNU is where Juniper’s active investment and the MX roadmap are heading.

Use cases: Next Gen port Extender delivers


Because Next Gen Port Extender is really “carrier-class ports, delivered cheaply and managed as one logical node,” it maps onto a set of well-defined service-provider and data-center deployments. These are the primary Next-Generation Port Extender use cases.

Provider Edge (SP / Telco)

The MX is a regular P/PE router in the service-provider or telco network, delivering full L2/L3 VPN and EVPN services. Satellites (EX/QFX) connect to the MX directly or across an intervening L1/L2 network and fan out 1G/10G/25G customer-facing ports

Low-speed peering

The MX becomes a peering aggregation point. Many peering partners land on 1G/10G/25G interfaces (or sub-interfaces) through the satellites and run EBGP to the MX — no MPLS required. All routing intelligence and the full peering table stay concentrated on the MX; the satellites simply add port density.

DC collapsed spine (small / medium DC)

In a small or medium data center, the MX acts as the collapsed spine: WAN ports terminate directly on the MX, and access interfaces fan out across the satellites — spine plus access in one logical box. It is ideal wherever you need large numbers of low-speed interfaces. NGPE: collapse spine and access into a single logical router — WAN on the MX, dense low-speed access on satellites.

DC border leaf

The AD/SD pair acts as a border leaf in a spine-leaf fabric, handling low-speed interfaces plus MPLS to EVPN/VXLAN stitching. The MX brings higher firewall-filter scale, larger MAC scale, and peering with a full Internet routing table, while the satellites supply the port fan-out. JNU value: a border-leaf gateway with MPLS/EVPN-VXLAN stitching, full-table peering, and high filter/MAC scale — plus satellite port density.

Across all four, the pattern is the same: the MX keeps the high-speed interfaces and the intelligence; the satellites deliver the low-speed ports; you manage one logical router.

Redundancy Deployment Models

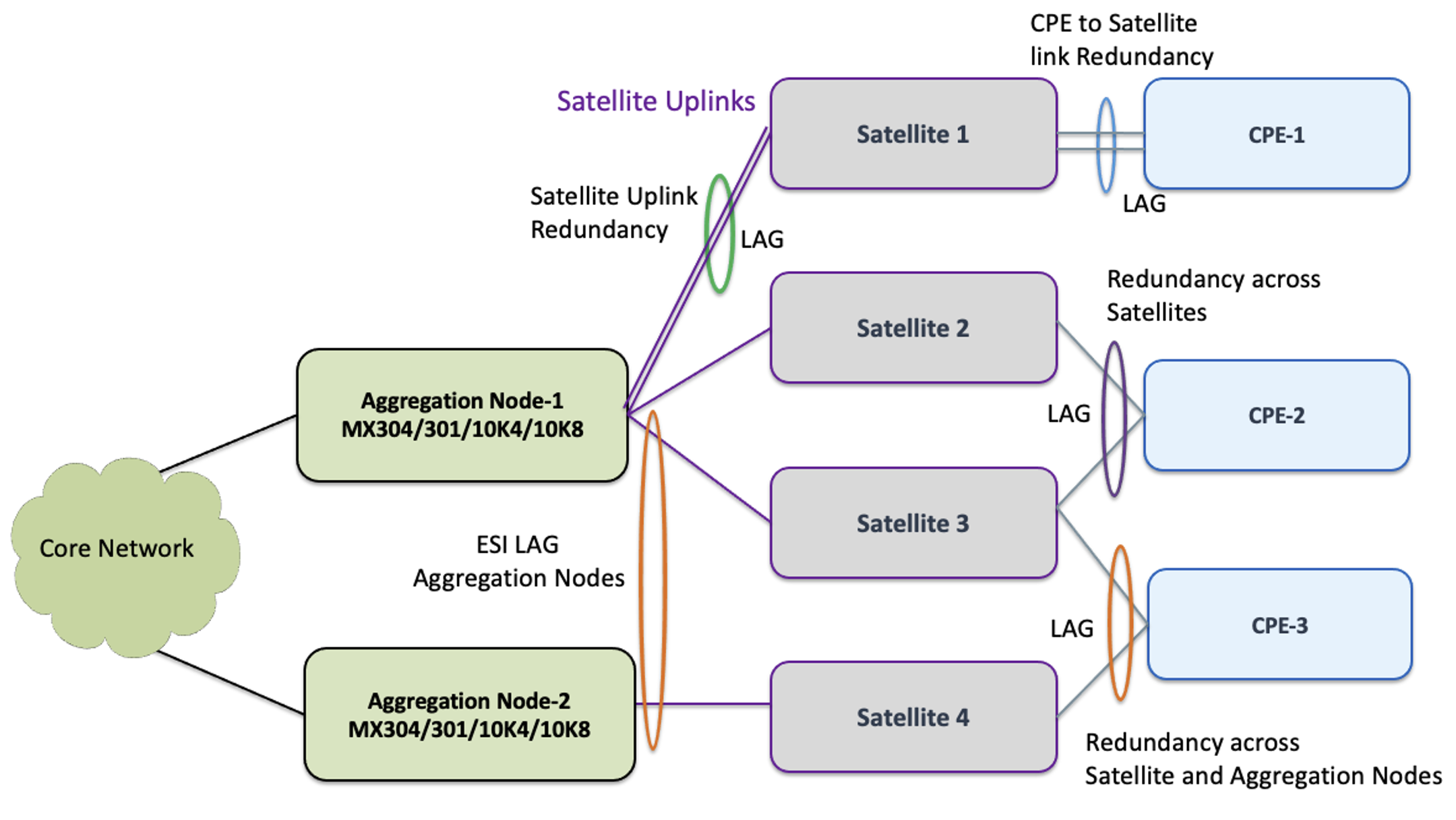

  1. Cascade / uplink link redundancy: The satellite's uplink to the aggregation device is a LACP LAG (SD ↔ AD cascade Protects the AD↔SD link.
  2. Single-homed CPE with LAG to one satellite: The CPE attaches to a single SD over a standard LAG across two access ports on that satellite. Refer CPE-2
  3. CPE multihomed across two satellites: The CPE is dual homed to two different SDs so losing an entire satellite fails traffic to the second Protects against loss of a whole satellite (SD). Refer CPE-3
  4. Full AD + SD node redundancy via ESI-LAG: The highest tier: the CPE runs a standard LAG on its side, while on the aggregation side two ADs present a shared EVPN ESI-LAG toward the satellites. This survives a cascade-link failure, a full satellite failure, and a complete aggregation-device failure — no single point of failure end to end. Protects satellite + aggregation node together. Refer CPE-3


Key takeaways


  • Right speed, right box. High-speed 100G/400/800G stays on the MX; 1G/10G lives on low-cost satellites.
  • One logical router. Two (or many) physical boxes, one control and management plane, one node to operate.
  • Cheap ports, carrier-class scale. Satellite ports inherit full MX/Trio6 routing, filtering, ECMP, and QoS.
  • Zero fabric engineering. JNU + commit scripts build and maintain the OSPF + EVPN-VXLAN fabric automatically.
  • Open Standards-based EVPN-VXLAN, flexible across HPE’s routing portfolio, extensible to third-party nodes.
  • The next-gen upgrade. An evolution from first-generation port extenders like Junos Fusion — keep the model, modernize the foundation.

Supported platforms


NGPE pairs a high-capacity MX aggregation device with a choice of low-cost satellites — so you can size each role independently and mix satellite models to fit each site.

Role Supported Platforms
Aggregation Device (AD)  MX304, MX10K(LC4800,LC9600), MX301*(RoadMap)
Satellite Device (SD) EX-440048T/P , QFX5120-48T/Y, ACX*(RoadMap)


Ready to build the AI-era edge?


As bandwidth demands climb, the smart move isn’t to consolidate every port speed onto one expensive platform — it’s to put each interface where it belongs. NGPE lets your aggregation router do what it’s built for at 100G/400G and beyond, while low-cost satellites land the 1G/10G ports with full MX/Trio6 scale behind them — and JNU automates the entire fabric so you never have to build it.
Right interface speed on the right box, carrier-class scale where it counts — that’s Next Generation Port Extender.
