Introduction

In L3VPN‑over‑SRv6 design, the metros and the core speak the same transport — IPv6 with Segment Routing. Production networks are rarely that tidy. Most operators run large, mature SR‑MPLS metros and want to slide a modern SRv6 core underneath them — without a flag day and without rebuilding the metros.

This post shows how to carry a customer IPv4 L3VPN end‑to‑end across two SR‑MPLS metros that are glued together by an IPv6‑only SRv6 uSID core, using MPLS‑over‑SRv6 (Mo6) transport interworking and Inter‑AS Option C. The two border routers do all the heavy lifting: they encapsulate MPLS into SRv6 on the way in (H.Encaps) and decapsulate SRv6 back to MPLS on the way out (End.DTM). The customer never knows; the core never sees an IPv4 address.

Everything below is captured from a vmx based lab (CE1–CE2).

Tech post flow in natural order — problem → solution → configuration → verification → control‑plane and data‑plane walkthrough.

Three ideas to keep in mind throughout:

• Option C ⇒ the VPN label is assigned once by the egress PE and preserved end‑to‑end; the borders never touch it.
• BGP‑LU ⇒ the core and borders hold no customer/VPN routes — only PE loopbacks plus a transport label. State is O(#PEs).
• Standards‑based ⇒ End.DTM, H.Encaps, BGP‑LU and Option C are all IETF‑defined, so multivendor interop is a given.

Problem Statement

You operate large, brownfield SR‑MPLS metros. Transport there is an MPLS label stack — deployed, mature, working. You are now introducing an SRv6 core, where transport is native IPv6 and forwarding is a longest‑match on an SRv6 locator. These are two different transport data planes, and they meet in the middle of your network:

A customer L3VPN must ride end‑to‑end across both, from a CE in metro‑1 to a CE in metro‑2, while the transport encapsulation changes mid‑path — and it must happen without ripping and replacing the metros to light up the core.

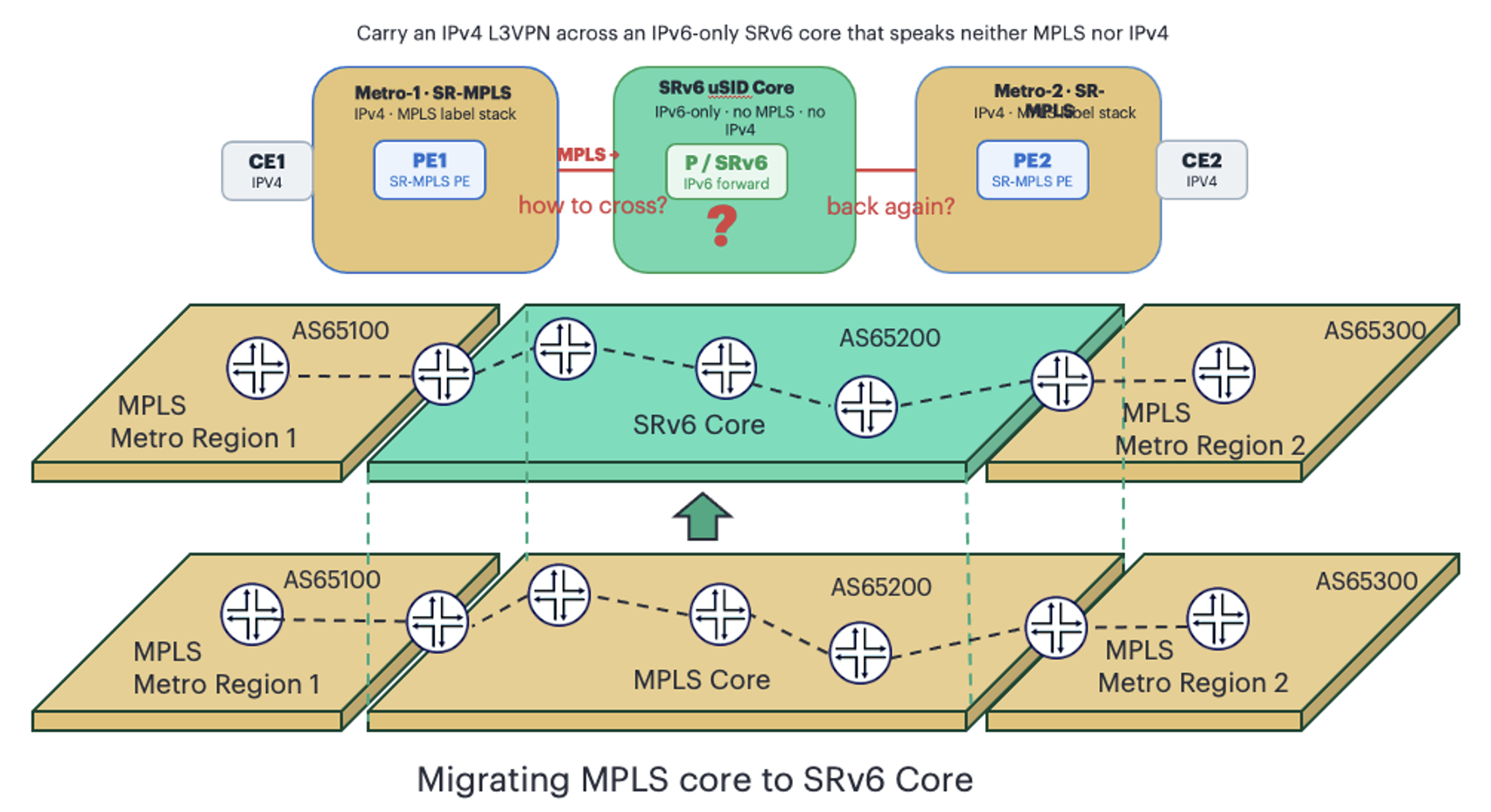

Figure 1 — Two transport islands, and the gap at the borders. The customer service is IPv4 L3VPN; the core is IPv6‑only.
So the question is: who translates MPLS ↔ SRv6, where, and how does the VPN service survive the handoff — over a core that carries no IPv4 at all?

Solution Overview

MPLS‑over‑SRv6 (Mo6) transport interworking + Inter‑AS Option C. The two ASBRs become the translators. At the metro→core border, the ASBR takes the MPLS‑encapsulated VPN packet and H.Encaps it into SRv6, toward the far border’s locator. At the core→metro border, the ASBR runs the End.DTM SID behavior — Endpoint with Decapsulation and MPLS table lookup — to strip SRv6 and hand a clean MPLS packet back to the metro. Because it is Option C, the VPN label is end‑to‑end: the egress PE assigns it, the ingress PE pushes it, and the borders only ever touch transport.

Two Junos primitives close the two gaps that an IPv6‑only core creates:

family inet labeled-unicast … local-ipv4-address — lets the IPv4 PE‑loopback transport route ride the IPv6‑only iBGP session (carrying its SRv6 End.DTM SID).

family inet-vpn unicast extended-nexthop — lets the IPv4 VPN service route ride a direct PE‑to‑PE session with an IPv6‑encoded next hop (RFC 8950).

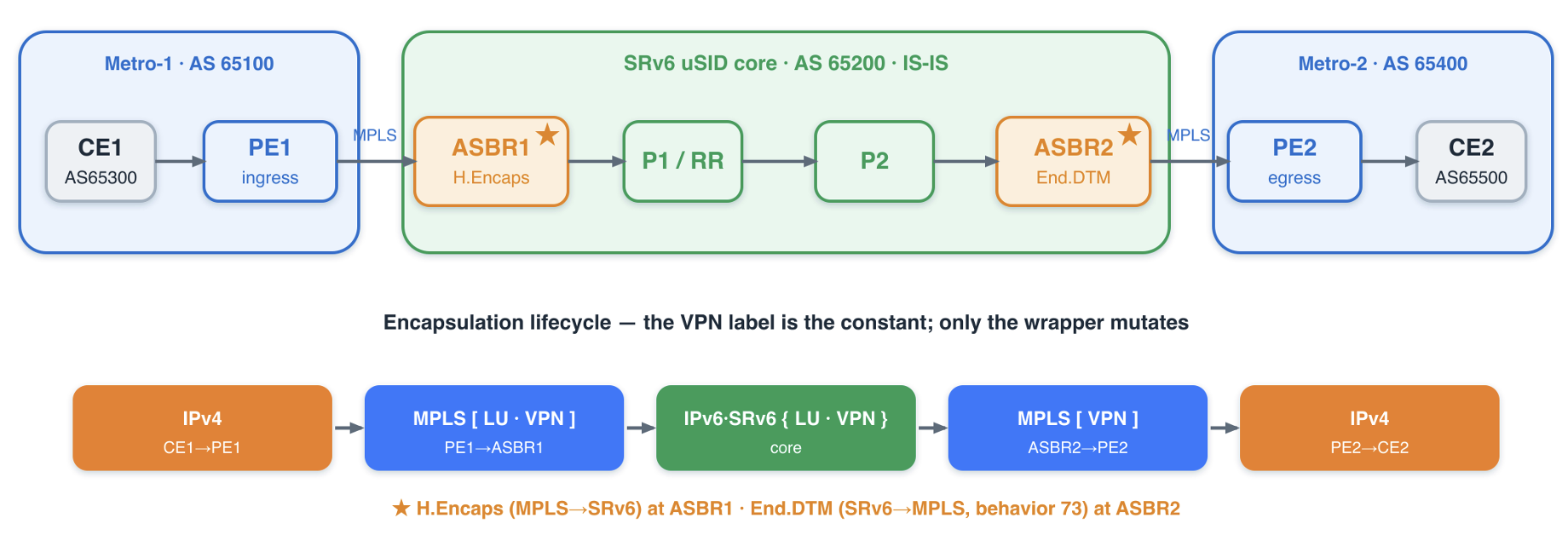

Figure 2 — The solution. The two ★ borders are the only places transport changes; the VPN label (Option C) is constant from PE1 to PE2.

The whole design in one line: IP → MPLS[LU|VPN] → IPv6+SRv6{[LU|VPN]} → MPLS[VPN] → IP — the VPN label is the constant; only the transport wrapper mutates, and only at the two ASBRs.

How We Solve It — the CLI, in Bullets

Before the full configuration, here is the shortlist of the exact knobs that make each piece work:

• SRv6 core identity — routing-options source-packet-routing srv6 block/locator + IS‑IS source-packet-routing srv6 locator … micro-node-sid (each core node gets a 5f00:0:XX::/48 locator, flavor usd).
• The MPLS↔SRv6 stitch — protocols bgp source-packet-routing srv6 locator SL-USID1 end-dtm-sid on each ASBR (this is H.Encaps in / End.DTM out, SID behavior 73). MPLS is enabled only on the metro‑facing interface.
• IPv4 transport across the IPv6 core — core iBGP family inet labeled-unicast { advertise-srv6-service; accept-srv6-service; } plus neighbor <v6> family inet labeled-unicast local-ipv4-address <A.B.C.D> + global rfc8950-compliant. This is the key trick: IPv4 NLRI riding an IPv6 iBGP session.
• Metro transport — eBGP‑LU family inet labeled-unicast resolve-vpn on the PE (so the far PE loopback lands in inet.3 for VPN resolution).
• The VPN service — direct multihop family inet-vpn unicast extended-nexthop between PE loopbacks (Option C, end‑to‑end VPN label).
• The customer edge — plain family inet unicast PE‑CE eBGP; the CE is IPv4‑only.

The next two sections show all of this: first every Configuration, then every Verification.

Configuration

Addressing (documentation ranges only — RFC 5737 / 3849 / 9602):

C1 — SRv6 core (each core node; locator value differs)

#Config Block and Locator
set routing-options source-packet-routing srv6 block BL-BLOCK 5f00:0::/32
set routing-options source-packet-routing srv6 block BL-BLOCK global-micro-sid maximum-sids 16384
set routing-options source-packet-routing srv6 block BL-BLOCK global-micro-sid maximum-static-sids 1000
set routing-options source-packet-routing srv6 block BL-BLOCK local-micro-sid maximum-static-sids 1000
set routing-options source-packet-routing srv6 locator SL-USID1 5f00:0:2::/48
set routing-options source-packet-routing srv6 locator SL-USID1 micro-sid block-name BL-BLOCK
set routing-options source-packet-routing srv6 locator SL-USID1 micro-sid flavor usd

#Advertise Locator in ISIS
set protocols isis interface lo0.0 passive
set protocols isis source-packet-routing srv6 locator SL-USID1 micro-node-sid
set protocols isis level 1 disable
set protocols isis level 2 wide-metrics-only

Configuration 1 — SRv6 block + locator, advertised into IS‑IS as a micro‑node‑SID.

C2 — the ASBR MPLS↔SRv6 stitch (both ASBRs)

# THE STITCH — End.DTM service SID from the locator
set protocols bgp source-packet-routing srv6 locator SL-USID1 end-dtm-sid
## MPLS only on the metro-facing interface (core side is pure IPv6)
set interfaces ge-0/0/0 unit 0 family mpls
set protocols mpls interface ge-0/0/0.0

Configuration 2 — one line turns the ASBR into an MPLS↔SRv6 translator.

C3 — core iBGP: IPv4 transport over the IPv6 core

## ASBR1 → RR (mirror on ASBR2; RR peers both ASBRs)
set protocols bgp group GR-TO-RR type internal
set protocols bgp group GR-TO-RR local-address 2001:db8:bad:cafe::2
set protocols bgp group GR-TO-RR family inet labeled-unicast advertise-srv6-service
set protocols bgp group GR-TO-RR family inet labeled-unicast accept-srv6-service
set protocols bgp group GR-TO-RR neighbor 2001:db8:bad:cafe::4 family inet labeled-unicast local-ipv4-address 10.10.10.1 <This IPv4 no role In Routing and Traffic forwarding>

## ASBR1 → PE1 (mirror on ASBR2)
set protocols bgp group GR-TO-PE1-V4 type external
set protocols bgp group GR-TO-PE1-V4 local-address 198.51.100.13
set protocols bgp group GR-TO-PE1-V4 neighbor 198.51.100.12 family inet labeled-unicast <BLP-LU exchange>
set protocols bgp group GR-TO-PE1-V4 neighbor 198.51.100.12 peer-as 65100
set protocols bgp group GR-TO-PE1-V4 neighbor 198.51.100.12 local-as 65200

Configuration 3 — the key: IPv4 labeled‑unicast on an IPv6 iBGP session via local-ipv4-address (ASBR1 10.10.10.1, RR 11.11.11.11, ASBR2 12.12.12.12, Keep in mind these IPv4 address have no role in the routing or Data forwarding.Consider as dummy IPs).

C4 — metro eBGP‑LU (Option C)

# PE1 → ASBR1
set protocols bgp group GR-TO-ASBR1-V4 type external
set protocols bgp group GR-TO-ASBR1-V4 local-address 198.51.100.12
set protocols bgp group GR-TO-ASBR1-V4 export PS-LO0-EXPORT4
set protocols bgp group GR-TO-ASBR1-V4 neighbor 198.51.100.13 family inet labeled-unicast resolve-vpn
set protocols bgp group GR-TO-ASBR1-V4 neighbor 198.51.100.13 peer-as 65200 local-as 65100

Configuration 4 — metro BGP‑LU with resolve-vpn so the remote PE loopback resolves VPN next hops.

C5 — the PE↔PE L3VPN (Option C, inet‑vpn)

## PE1 (mirror on PE2)
set protocols bgp group GR-TO-PE2 type external
set protocols bgp group GR-TO-PE2 multihop ttl 15
set protocols bgp group GR-TO-PE2 local-address 198.51.100.1
set protocols bgp group GR-TO-PE2 neighbor 198.51.100.7 family inet-vpn unicast extended-nexthop
set protocols bgp group GR-TO-PE2 neighbor 198.51.100.7 peer-as 65400 local-as 65100

Configuration 5 — direct multihop inet‑vpn session; extended-nexthop carries VPN‑IPv4 with an IPv6 next hop.

C6 — VRF + PE‑CE, and the CE

## PE1 VRF (mirror on PE2)
set routing-instances RI-VPN1 instance-type vrf
set routing-instances RI-VPN1 interface ge-0/0/2.0
set routing-instances RI-VPN1 route-distinguisher 100:1
set routing-instances RI-VPN1 vrf-import PS-VPN1-IMPORT
set routing-instances RI-VPN1 vrf-export PS-VPN1-EXPORT
set routing-instances RI-VPN1 vrf-table-label
set routing-instances RI-VPN1 protocols bgp group GR-TO-CE1-V4 type external
set routing-instances RI-VPN1 protocols bgp group GR-TO-CE1-V4 local-address 198.51.100.11
set routing-instances RI-VPN1 protocols bgp group GR-TO-CE1-V4 neighbor 198.51.100.10 family inet unicast
set routing-instances RI-VPN1 protocols bgp group GR-TO-CE1-V4 neighbor 198.51.100.10 peer-as 65300 local-as 65100
## CE1 (mirror on CE2 with 203.0.113.0/24)
set routing-options static route 192.0.2.0/24 discard
set protocols bgp group GR-TO-PE1-V4 type external
set protocols bgp group GR-TO-PE1-V4 local-address 198.51.100.10 export PS-ADV-CE1
set protocols bgp group GR-TO-PE1-V4 neighbor 198.51.100.11 family inet unicast peer-as 65100 local-as 65300

Configuration 6 — the VRF, the IPv4 PE‑CE session, and the customer prefix on the CE.

Verification

V1 — the SRv6 underlay: locators reachable as SRv6 tunnels

root@ASBR1> show route table inet6.3
5f00:0:4::/48     *[SRV6-ISIS/14]     >     to fe80::…:47a6 via ge-0/0/2.0, SRV6-Tunnel, Dest: 5f00:0:4::
5f00:0:5::/48     *[SRV6-ISIS/14]     >     to fe80::…:47a6 via ge-0/0/2.0, SRV6-Tunnel, Dest: 5f00:0:5::
5f00:0:6::/48     *[SRV6-ISIS/14]     >     to fe80::…:47a6 via ge-0/0/2.0, SRV6-Tunnel, Dest: 5f00:0:6::

CLI‑Output 1 — every core locator reachable via an SRv6 tunnel.

V2 — IPv4 NLRI riding the IPv6 core session

root@ASBR1> show bgp summary
Peer                     AS   ...  State|#Active/Received/Accepted/...
198.51.100.12         65100  ...  Establ   inet.0: 1/1/1/0        (metro eBGP-LU)
2001:db8:bad:cafe::4  65200  ...  Establ   inet.0: 1/1/1/0        <-- IPv4 over an IPv6 iBGP peer

CLI‑Output 2 — the peer is an IPv6 loopback, the family table is inet.0 (IPv4).

V3 — the IPv4 transport route arrives with its SRv6 SID

root@P1_RR> show route receive-protocol bgp 2001:db8:bad:cafe::6 198.51.100.7/32 detail
* 198.51.100.7/32
     Route Label: 300192
     Nexthop: 12.12.12.12
     SRv6 SID: 5f00:0:6:4000:: Prefix-SID tlv type: 7 Behavior: 73 BL: 32 NL: 16 FL: 16

CLI‑Output 3 — IPv4 loopback + End.DTM SID 5f00:0:6:4000:: (behavior 73), next hop = ASBR2’s local-ipv4-address.

V4 — the stitch in the forwarding plane (ASBR1)

root@ASBR1> show route 198.51.100.7/32 extensive
   Advertised metrics:  Nexthop: Self   Label: 32
   Next hop: via Chain Tunnel Composite, SRv6 (src abcd::…238 dest 5f00:0:6::)
   SRV6-Tunnel: … Src: abcd::…238  Dest: 5f00:0:6::  Segment-list[0] 5f00:0:6::
                Protocol next hop: 5f00:0:6::  Label operation: Push 300192

CLI‑Output 4 — MPLS→SRv6: swap the metro label into an SRv6 encap toward ASBR2, re‑advertise to PE1 with label 32.

V5 — the L3VPN comes up; the customer prefix resolves

root@PE1> show bgp summary
198.51.100.7   65400  ...  Establ   bgp.l3vpn.0: 2/2/2/0   RI-VPN1.inet.0: 2/2/2/0
root@PE1> show route table RI-VPN1.inet.0 203.0.113.0/24 extensive
203.0.113.0/24  *BGP  RD 700:1  Next hop: 198.51.100.13  Label operation: Push 17, Push 32(top)
                Protocol next hop: 198.51.100.7   VPN Label: 17

CLI‑Output 5 — VPN session up; CE2’s prefix resolves as [transport 32][VPN 17].

V6 — the egress and end‑to‑end proof

root@ASBR2> show route 198.51.100.7/32       >  to 198.51.100.15 via ge-0/0/3.0     (PHP — no transport label to egress PE)
root@PE2>   show route table mpls.0 label 17  *[VPN/0]  > via lsi.1 (RI-VPN1), Pop   (VPN label pops into the VRF)
root@CE1> ping 203.0.113.1 source 192.0.2.1 count 5 rapid
!!!!!  5 packets transmitted, 5 packets received, 0% packet loss

CLI‑Output 6 — ASBR2 PHP, PE2 pops the VPN label into the VRF, and CE1 → CE2 is 0 % loss.

Control Plane — Hop by Hop

Two independent BGP planes converge: the transport (make the PE loopbacks reachable) and the service (carry the VPN prefix). Figure 3 traces both, in the order they happen.

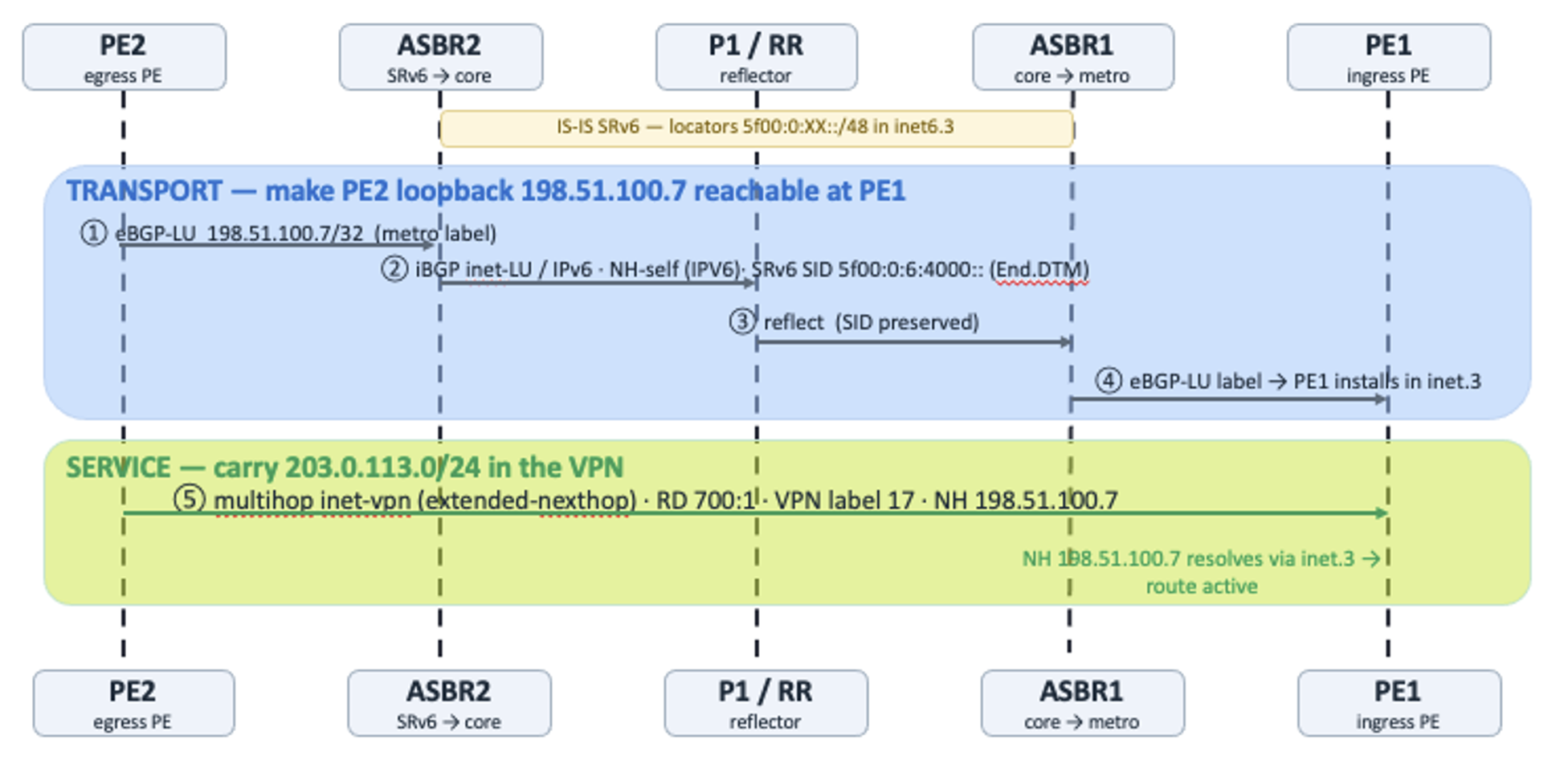

Figure 3 — Control‑plane establishment: transport first, then service.

Step by step:

1. PE2 → ASBR2 (eBGP‑LU). 198.51.100.7/32 is advertised with a metro transport label — the transport plane.
2. ASBR2 (MPLS→SRv6). Re‑advertises 198.51.100.7/32 into the IPv6 core iBGP as inet labeled-unicast, next‑hop‑self, with its End.DTM SID 5f00:0:6:4000::; local-ipv4-address gives the IPv4 NLRI its identity on the IPv6 session.
3. RR (P1) reflects — SID intact — to ASBR1. Control plane only.
4. ASBR1 (SRv6→MPLS). Resolves ASBR2’s SID over inet6.3, re‑advertises to PE1 over eBGP‑LU with next‑hop‑self and label 32. PE1 installs it in inet.3.
5. PE2 (egress). allocates VPN label  (vrf-table-label), re‑originates into the multihop inet-vpn session with next hop = its own loopback 198.51.100.7. The VPN label is now fixed end‑to‑end (Option C).

Control‑plane summary

Data Path — Hop by Hop

Now one customer packet, IPv4 192.0.2.1 → 203.0.113.1, from CE1 to CE2.

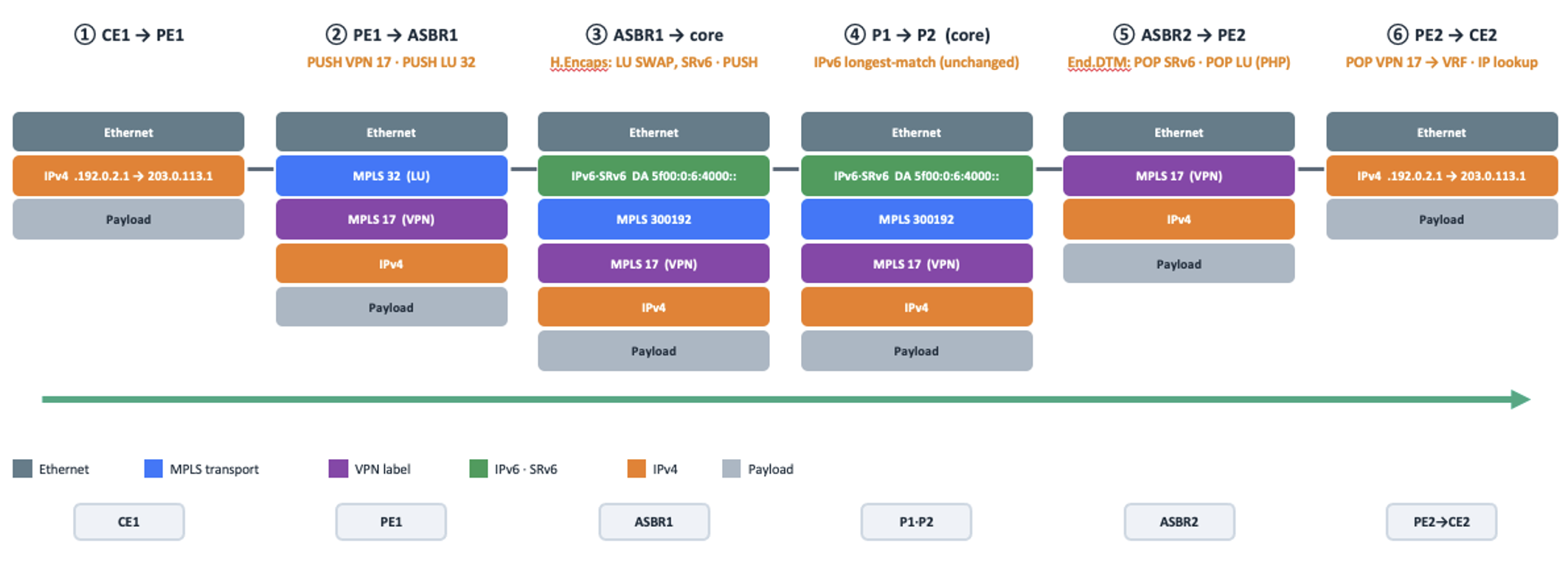

Figure 4 — The byte‑wrapper at every hop. The VPN label 17 is the invariant; only the transport wrapper mutates.

Step by step:

1. CE1 → PE1 — native IPv4 into the VRF.
2. PE1 (ingress). Lookup in RI-VPN1.inet.0 → PUSH VPN 17, then PUSH transport 32. On the wire: [MPLS 32 | MPLS 17 | IPv4].
3. ASBR1 (MPLS→SRv6, H.Encaps). Swap the metro label into an SRv6 encapsulation toward ASBR2’s End.DTM (DA 5f00:0:6:4000::), push the core label 300192; VPN 17 untouched. On the wire: [IPv6/SRv6 | 300192 | 17 | IPv4].
4. P1 → P2 (core). Pure IPv6 longest‑match on 5f00:0:6::/48 — no MPLS, no IPv4, no label operations.
5. ASBR2 (SRv6→MPLS, End.DTM behavior 73). POP the IPv6/SRv6 header, MPLS‑lookup 300192; PE2 signalled implicit‑null so the transport label is popped (PHP); VPN 17 untouched. On the wire: [MPLS 17 | IPv4].
6. PE2 (egress). POP VPN 17 (via lsi.1 (RI-VPN1)) → IPv4 lookup in the VRF.
7. PE2 → CE2 — native IPv4, byte‑for‑byte unchanged.

Data‑plane summary

Option C in one line: the transport wrapper flips MPLS → SRv6 → MPLS at the two ASBRs, while the VPN label 17 rides untouched end‑to‑end and the customer IPv4 header never changes.
