Automating the MPLS and SR network with Juniper Routing Director network optimization use case.
Introduction
Service providers and large enterprise networks nowadays offer multiple services with different traffic criteria, e.g., high bandwidth, moderate bandwidth with moderate latency, and small bandwidth with latency-sensitive requirements, etc. These requirements are also commonly used for 5G transport network slicing in IP networks. To meet the demand, using LSP (RSVP-TE, SR-TE, or SRv6-TE) is one of the solutions.
Manual CLI configuration is time-consuming and requires a high level of operational and maintenance expertise. We need to configure every ingress router and ensure the LSP paths are reachable from every router. The strict LSP path creation also complicates the network engineer to be absolutely aware of the hop-by-hop path (i.e., P2P IP, loopback IP, adj-SID, node-SID, etc., depending on what technology is being used in the network) from the ingress to the egress router. Imagine a customer willing to add multiple nodes to expand their network, they need to manually configure numerous routers to create new LSPs tunnels between the existing and the new nodes.
Juniper Routing Director (RD), formerly known as Paragon Automation, is built to solve this problem. It automates the LSP creation, but also the traffic steering based on defined constraints. The automation could be done via PCEP or NETCONF. RD is a multi-vendor solution by nature, hence it can also automate and monitor third-party hardware. However, I will only focus on Juniper router in this Techpost article.
You may head to this article [1], if you want to learn more about RD.
[1] https://www.juniper.net/documentation/us/en/quick-start/software/juniper-routing-director2.5.0/rd-quick-start-guide/
Topology Connection Infrastructure

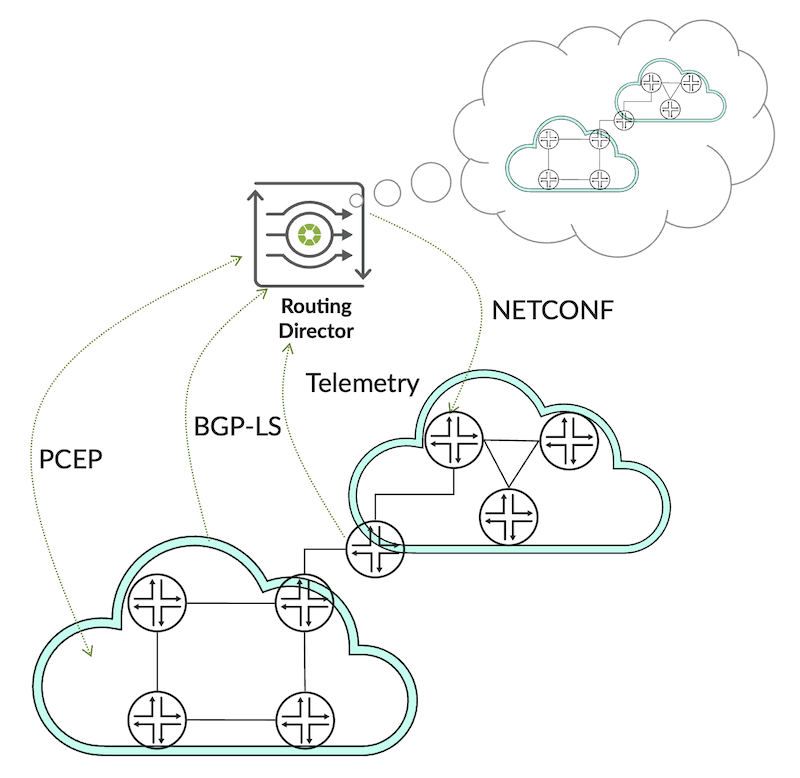

The high-level topology below describes how the routers communicate with RD:
Figure 1 Logical Connection Infrastructure
There are some essential key protocols to enable the communication:
- 1. BGP-LS (BGP Link State): this connection is required for Routing Director to learn the full IGP topology, metric, bandwidth, delay, Segment-ID information and many more. BGP-LS is a standard defined on RFC8571.
- 2. PCEP (Path Computation Element Protocol): protocol used between routers, or Path Computation Client, and the Routing Director (Path Computation Element). PCEP is based on RFC5440 and the PCEP extension function is defined in RFC8231 (Stateful-PCE), RFC8281(PCE-Initiated LSP), SR-PCE ,etc.
- 3. NETCONF (Network Configuration Protocol) over SSH: provides fine-grained structured configuration management. In this case, routers are NETCONF servers and RD is the NETCONF client. NETCONF is a standard based on RFC6241.
Demonstration Topology
I will use the same topology (figure 2) than my previous Techpost article (Service Orchestration in RD) with the addition of SR-MPLS (ISIS) as an underlay protocol. If you have not read it yet, please go here.

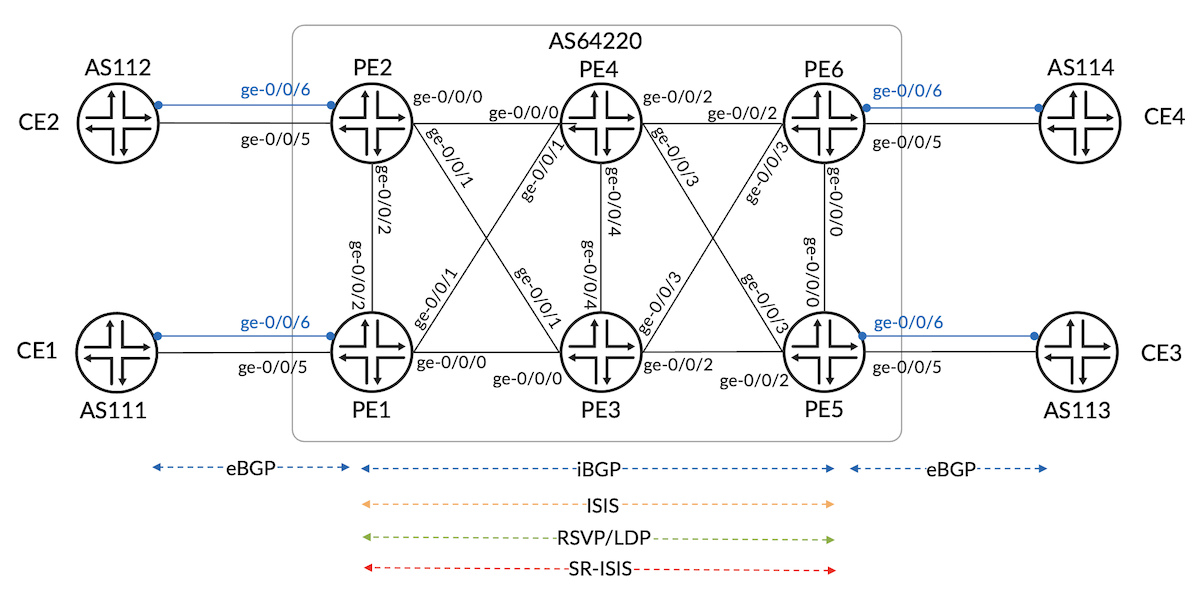

Figure 2 Network Topology
RD offers real-time topology discovery by BGP-LS. When the devices are connected by IGP, the topology can be visualized on the GUI depicted in Figure 3. Routing Director 2.5 (Figure 4) and Junos 23.4R1.9 are used in this demonstration.

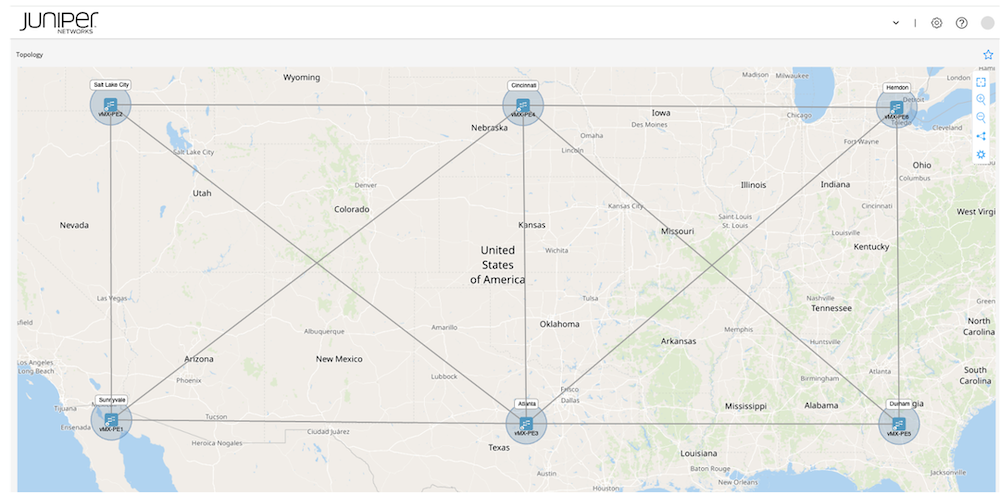

Figure 3 Paragon Automation Topology View

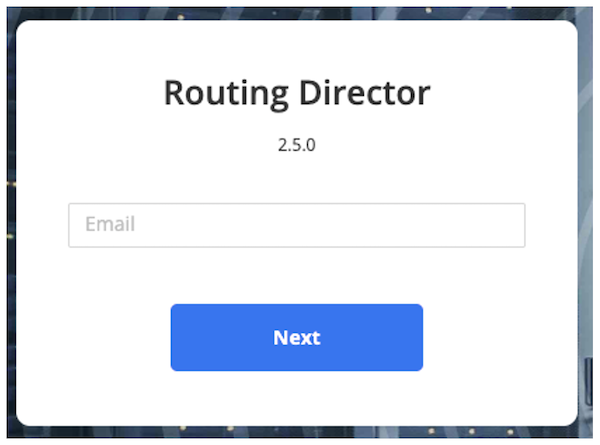

Figure 4: Routing Director 2.5 Version
jcluser@vMX-PE1> show version
Hostname: vMX-PE1
Model: vmx
Junos: 23.4R1.9
JUNOS OS Kernel 64-bit [20231122.ee0e992_builder_stable_12_234]
JUNOS OS libs [20231122.ee0e992_builder_stable_12_234]
JUNOS OS runtime [20231122.ee0e992_builder_stable_12_234]
... Truncated ...
Let’s verify the prerequisite connectivity from the router perspective.
BGP-LS connection to RD.
jcluser@vMX-PE2> show bgp summary
Threading mode: BGP I/O
Default eBGP mode: advertise - accept, receive - accept
Groups: 3 Peers: 7 Down peers: 1
Unconfigured peers: 1
Table Tot Paths Act Paths Suppressed History Damp State Pending
lsdist.0
0 0 0 0 0 0
bgp.l3vpn.0
0 0 0 0 0 0
bgp.evpn.0
1 1 0 0 0 0
inet.0
0 0 0 0 0 0
inet6.0
0 0 0 0 0 0
Peer AS InPkt OutPkt OutQ Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped...
1.1.192.0 64220 3749 3726 0 0 1d 4:26:02 Establ
bgp.l3vpn.0: 0/0/0/0
bgp.evpn.0: 0/0/0/0
bc7e1b55-7c1a-11f0-8e80-2abea23635c2.evpn.0: 0/0/0/0
__default_evpn__.evpn.0: 0/0/0/0
2.2.2.0 64220 3750 3726 0 0 1d 4:25:50 Establ
bgp.l3vpn.0: 0/0/0/0
bgp.evpn.0: 0/0/0/0
bc7e1b55-7c1a-11f0-8e80-2abea23635c2.evpn.0: 0/0/0/0
__default_evpn__.evpn.0: 0/0/0/0
2.2.2.2 64220 3748 3726 0 0 1d 4:25:49 Establ
bgp.l3vpn.0: 0/0/0/0
bgp.evpn.0: 0/0/0/0
bc7e1b55-7c1a-11f0-8e80-2abea23635c2.evpn.0: 0/0/0/0
__default_evpn__.evpn.0: 0/0/0/0
2.2.2.3 64220 3749 3726 0 0 1d 4:25:54 Establ
bgp.l3vpn.0: 0/0/0/0
bgp.evpn.0: 0/0/0/0
bc7e1b55-7c1a-11f0-8e80-2abea23635c2.evpn.0: 0/0/0/0
__default_evpn__.evpn.0: 0/0/0/0
3.3.3.0 64220 3751 3727 0 0 1d 4:26:05 Establ
bgp.l3vpn.0: 0/0/0/0
bgp.evpn.0: 1/1/1/0
bc7e1b55-7c1a-11f0-8e80-2abea23635c2.evpn.0: 1/1/1/0
__default_evpn__.evpn.0: 0/0/0/0
100.123.42.4 64220 3790 25469 0 0 1d 4:27:14 Establ
lsdist.0: 0/0/0/0
192.168.2.1 112 0 0 0 0 1d 4:27:46 Idle
Topology information advertisement from router to RD.
jcluser@vMX-PE2> show route advertising-protocol bgp 100.123.42.4
lsdist.0: 98 destinations, 98 routes (98 active, 0 holddown, 0 hidden)
Prefix Nexthop MED Lclpref AS path
NODE { AS:64220 ISO:0010.0119.2000.00 ISIS-L1:0 }/1216
* Self 100 I
IPv4 Router-ids:
1.1.192.0
Area border router: No
External router: No
Attached: No
Overload: No
Hostname: vMX-PE3
Area membership:
49 00 03
SPRING-Capabilities:
- SRGB block [Start: 16000, Range: 8000, Flags: 0xc0]
SPRING-Algorithms:
- Algo: 0
- Algo: 1
- Algo: 129
SPRING Flex-Algorithms Definition:
- Flex-Algo: 129
Metric: 0, Calc: 0, Priority: 100
- Flags: 0x00000000
Node MSD:
- Type: 1, Value: 3
- Type: 2, Value: 16
Prefix Nexthop MED Lclpref AS path
LINK { Local { AS:64220 ISO:0010.0119.2000.00 }.{ IPv4:11.11.11.1 } Remote { AS:64220 ISO:0020.0200.2002.00 }.{ IPv4:11.11.11.2 } ISIS-L1:0 }/1216
* Self 100 I
Color: 0
Maximum bandwidth: 1000Mbps
Reservable bandwidth: 1000Mbps
Unreserved bandwidth by priority:
0 1000Mbps
1 1000Mbps
2 1000Mbps
3 1000Mbps
4 1000Mbps
5 1000Mbps
6 1000Mbps
7 1000Mbps
Metric: 10
TE Metric: 10
Average delay: 809
Minimum delay: 645
Maximum delay: 1112
Delay variation: 184
Label: 25, Flags: 0x30, Weight: 0
Link MSD:
- Type: 1, Value: 3
... Truncated ...
PCE connection from router to RD.
jcluser@vMX-PE1> show configuration protocols pcep | display inheritance no-comments
disable-multipath-capability;
pce pso-pce-server {
destination-ipv4-address 100.123.42.9;
pce-type active stateful;
lsp-provisioning;
spring-capability;
delegation-cleanup-timeout 10;
pce-traffic-steering;
}
jcluser@vMX-PE1> show path-computation-client status
Session Type Provisioning Status Uptime
pso-pce-server Stateful Active On Up 102875
LSP Summary
Total number of LSPs : 20
Static LSPs : 8
Externally controlled LSPs : 0
Externally provisioned LSPs : 12/16000 (current/limit)
Orphaned LSPs : 0
pso-pce-server (main)
Delegated : 0
... Truncated ...
NETCONF connection from router to RD (RD uses port 2200).
jcluser@vMX-PE1> show configuration system services
netconf {
ssh {
rate-limit 20;
}
}
jcluser@vMX-PE1> show system connections | match 2200
tcp4 0 0 100.123.1.4.62479 100.123.42.100.2200 ESTABLISHED
... Truncated ...
Since all prerequisite protocols are clear, let’s head up to the use cases.
Demonstration Use Cases
I will demonstrate the following use cases :
- 1. RSVP-TE PCEP tunnel link diversity
- 2. RSVP-TE Netconf tunnel creation and delegation
- 3. SR-TE PCEP Flex-algo delay-based constraint tunnel
- 4. SR-TE full mesh path intent creation
1. RSVP-TE PCEP tunnel link diversity
The objective is to demonstrate that RD could automate the creation of two active paths using different links from ingress to egress. Diversity tunnel is commonly used for critical service that has strict requirements for resiliency.
I will create diversity tunnels from PE1 to PE6 for this use case.

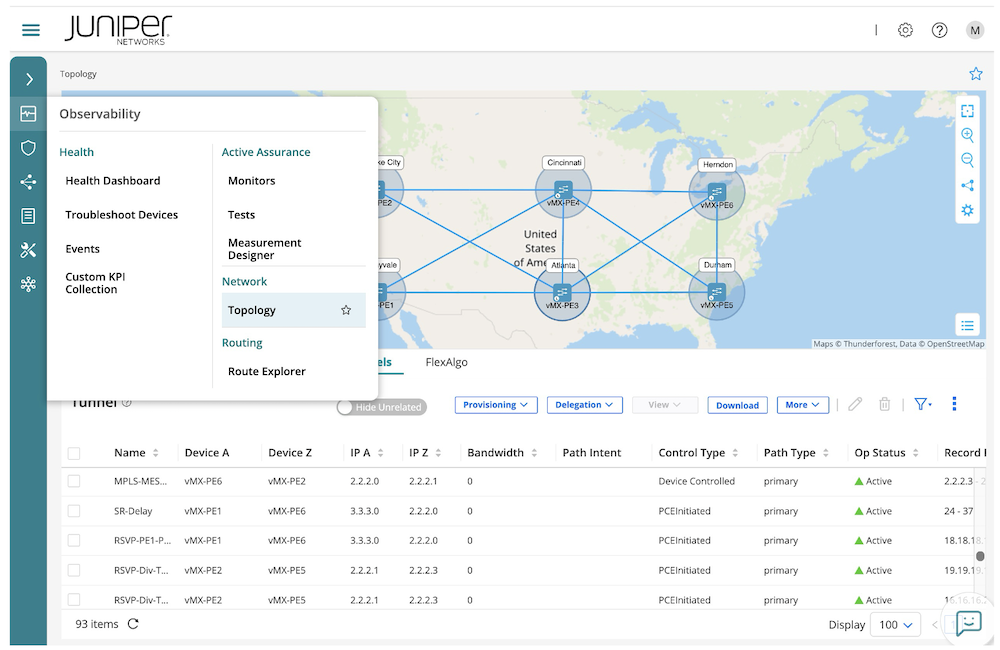

First, we need to go to Observability --> Network --> Topology.
Figure 5 - RD Topology GUI
Then, we go to the Tunnels tab to create the Diverse Tunnels.

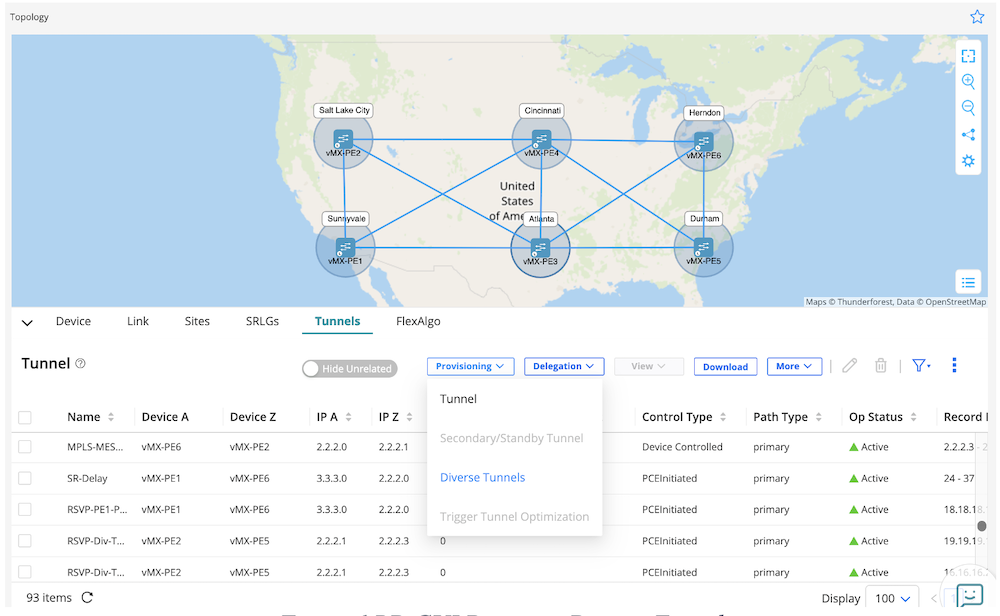

Figure 6: RD GUI Provision Diverse Tunnel
We define the following variables in the GUI:
- Provisioning Method: PCEP
- Provision Type: RSVP
- Diversity Group: Div-Tunnel
- Diversity Level: Link
- Tunnel 1 Name: Div-Tunnel1
- Device A: vMX-PE1
- Device Z: vMX-PE6
- Tunnel 2 Name: Div-Tunnel2
- Device A: vMX-PE1
- Device Z: vMX-PE6
- And the click “Add”

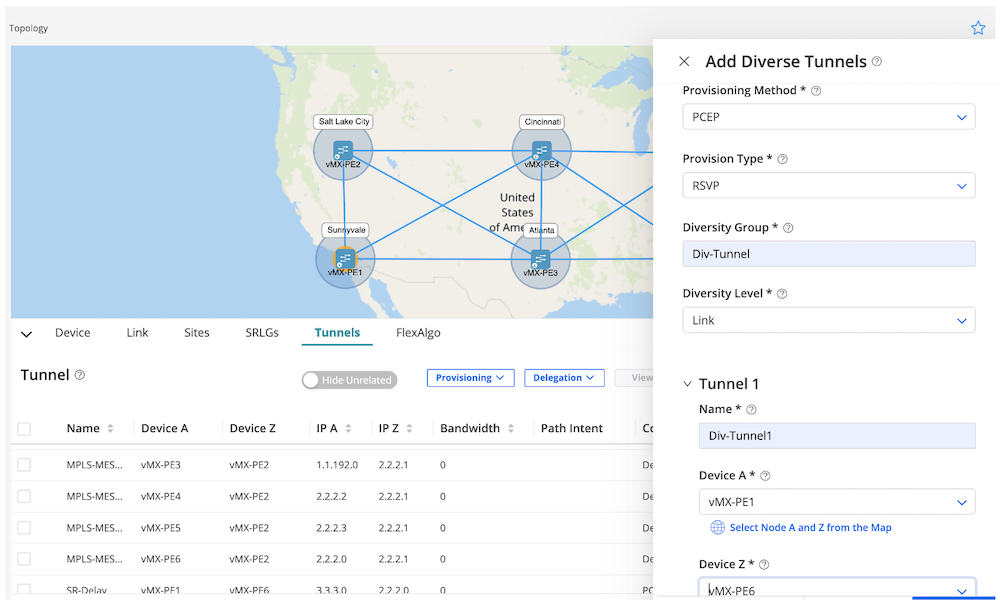

Figure 7: Variable Definition for Diverse Tunnel (1)

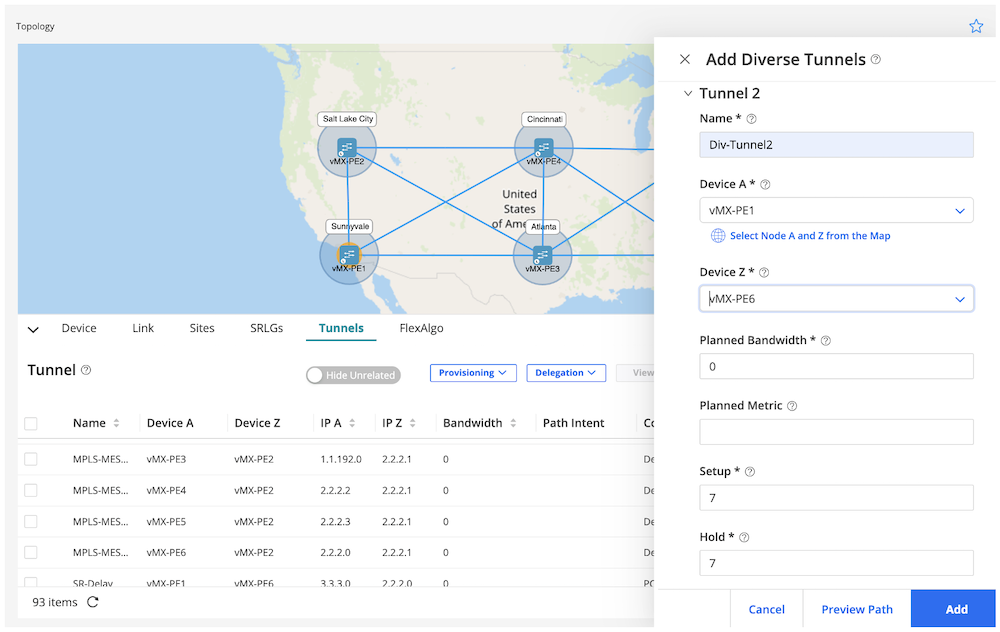

Figure 8: Variable Definition for Diverse Tunnel (2)

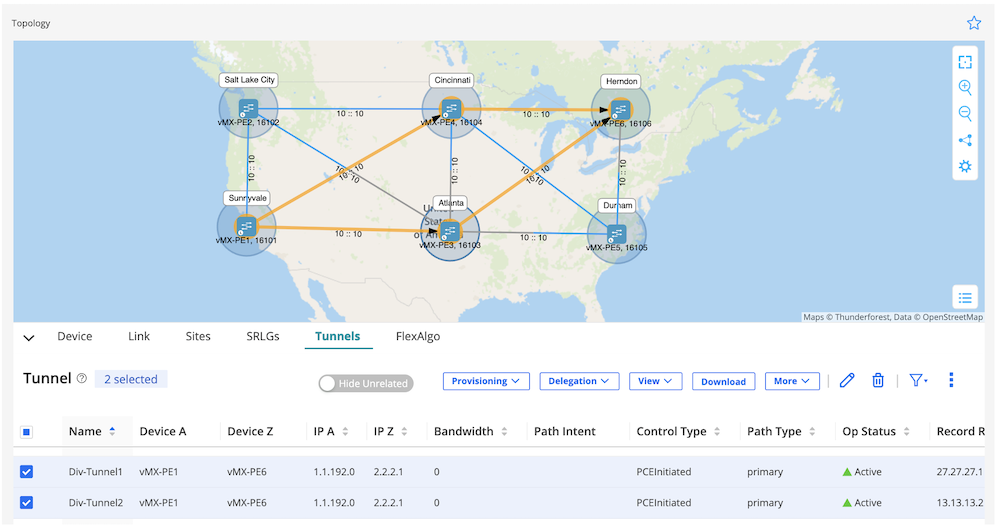

We see in Figure 9 that the tunnels were successfully created with different paths.
Figure 9: RSVP-TE Tunnel Diversity Result
Now, let’s check from the router side.
jcluser@vMX-PE1> show mpls lsp ingress
Ingress LSP: 7 sessions
To From State Rt P ActivePath LSPname
2.2.2.1 1.1.192.0 Up 0 * Div-Tunnel1
2.2.2.1 1.1.192.0 Up 0 * Div-Tunnel2
1.1.192.2 1.1.192.0 Up 0 * MPLS-MESH-from-vMX-PE1-to-vMX-PE2
2.2.2.2 1.1.192.0 Up 0 * MPLS-MESH-from-vMX-PE1-to-vMX-PE3
2.2.2.0 1.1.192.0 Up 0 * MPLS-MESH-from-vMX-PE1-to-vMX-PE4
1.1.192.1 1.1.192.0 Up 0 * MPLS-MESH-from-vMX-PE1-to-vMX-PE5
2.2.2.1 1.1.192.0 Up 0 * MPLS-MESH-from-vMX-PE1-to-vMX-PE6
jcluser@vMX-PE1> show mpls lsp ingress name Div-Tunnel1 detail
Ingress LSP: 7 sessions
2.2.2.1
From: 1.1.192.0, State: Up, ActiveRoute: 0, LSPname: Div-Tunnel1, LSPid: 7
ActivePath: (primary)
LSPtype: Externally provisioned, Penultimate hop popping
LSP Control Status: Externally controlled
LoadBalance: Random
Follow destination IGP metric
Encoding type: Packet, Switching type: Packet, GPID: IPv4
LSP Self-ping Status : Enabled
*Primary State: Up
Priorities: 7 7
External Path CSPF Status: external
SmartOptimizeTimer: 180
Flap Count: 0
MBB Count: 0
Externally Computed ERO (S [L] denotes strict [loose] hops):
27.27.27.1 S 31.31.31.2 S
Received RRO (ProtectionFlag 1=Available 2=InUse 4=B/W 8=Node 10=SoftPreempt 20=Node-ID):
27.27.27.1(Label=41) 31.31.31.2(Label=3)
Total 1 displayed, Up 1, Down 0
jcluser@vMX-PE1> show mpls lsp ingress name Div-Tunnel2 detail
Ingress LSP: 7 sessions
2.2.2.1
From: 1.1.192.0, State: Up, ActiveRoute: 0, LSPname: Div-Tunnel2, LSPid: 8
ActivePath: (primary)
LSPtype: Externally provisioned, Penultimate hop popping
LSP Control Status: Externally controlled
LoadBalance: Random
Follow destination IGP metric
Encoding type: Packet, Switching type: Packet, GPID: IPv4
LSP Self-ping Status : Enabled
*Primary State: Up
Priorities: 7 7
External Path CSPF Status: external
SmartOptimizeTimer: 180
Flap Count: 0
MBB Count: 0
Externally Computed ERO (S [L] denotes strict [loose] hops):
13.13.13.2 S 16.16.16.1 S
Received RRO (ProtectionFlag 1=Available 2=InUse 4=B/W 8=Node 10=SoftPreempt 20=Node-ID):
13.13.13.2(Label=30) 16.16.16.1(Label=3)
Total 1 displayed, Up 1, Down 0
Let’s simulate a link failure to check the link diversity consistency. I will create a link fiber cut between PE1 (ge-0/0/0) and PE3 (ge-0/0/0).

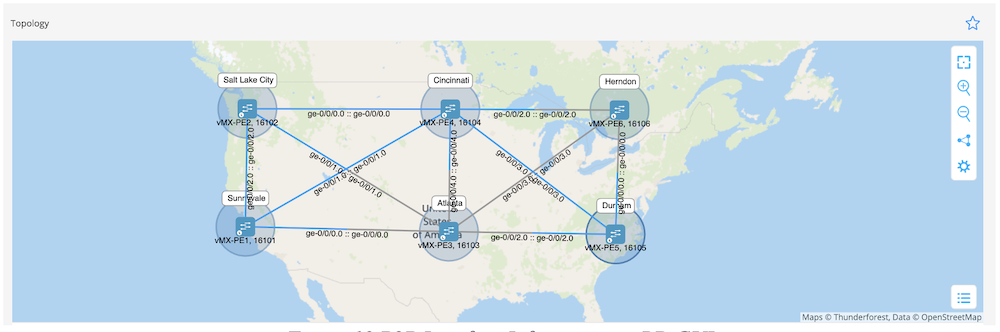

Figure 10: P2P Interface Information in RD GUI
jcluser@vMX-PE1# show | compare
[edit groups paragon-service-orchestration interfaces ge-0/0/0]
+ disable;
jcluser@vMX-PE1# commit and-quit
warning: Could not connect to re1 : No route to host
warning: Cannot connect to other RE, ignoring it
kenv: unable to get vmtype
commit complete
Exiting configuration mode
jcluser@vMX-PE1> show isis adjacency
Interface System L State Hold (secs) SNPA
ge-0/0/0.0 vMX-PE3 3 Down 0
ge-0/0/1.0 vMX-PE4 3 Up 26
ge-0/0/2.0 vMX-PE2 3 Up 25

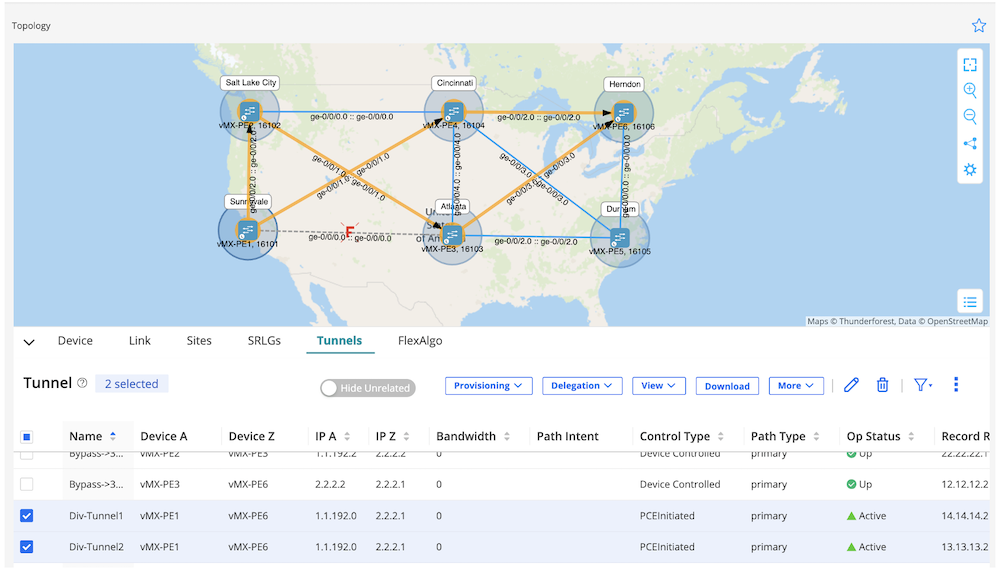

Figure 11 - Tunnel Diversity Path After Simulate Fibre Cut
We can see the result in figure 11: RD will announce two important things:
- 1. Link between PE1 and PE6 is declared down and a dotted line with “F” (Fail) link is represented in the topology GUI. It will not being used for traffic.
- 2. Div-Tunnel1 LSP initially used the PE1 >< PE3 link. It's now rerouted through other path (in this demo to PE1 >< PE2 link) and we still maintain the link diversity constraint with Div-Tunnel2 LSP.

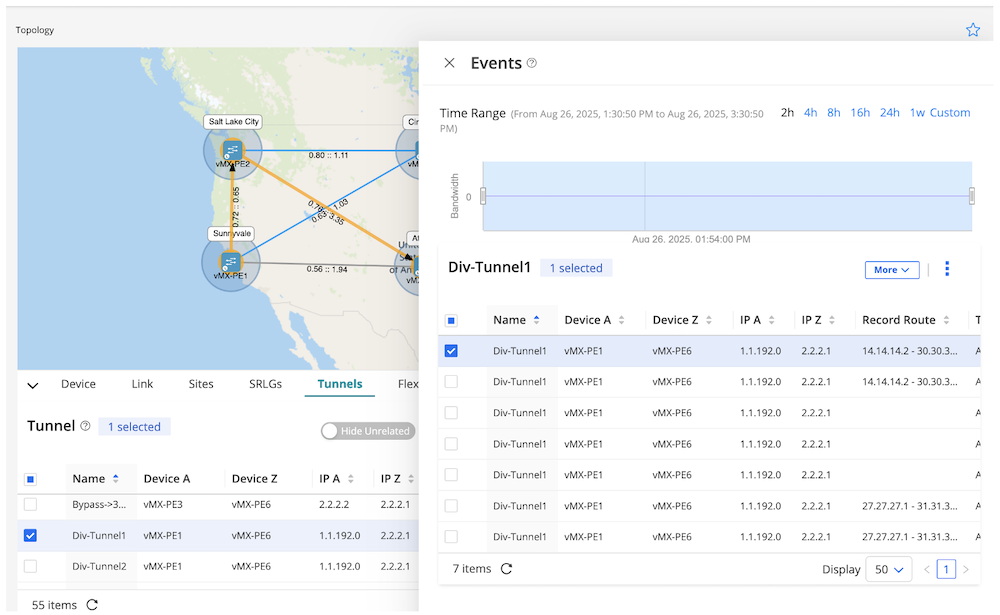

Furthermore, starting from RD2.5, we can track the tunnel changes with complete detailed information, including timestamp and record route.
Figure 12: Tunnel Events History
2. RSVP-TE Netconf tunnel creation and delegation
Let's demonstrate we can create an RSVP-TE tunnel and associate it with the CLI configuration. This will result in the control type from RD GUI being “Device Controlled”. The LSP is initiated from RD but is statically controlled by the router itself.
We can delegate it to RD after the LSP is successfully created. The RD will take control of the LSP, the control type becomes “Delegated”.
I will create a tunnel from PE2 to PE5 for this use case.
First, we go to Tunnels --> Provisioning and we define key variables in the GUI:
- Provisioning Method: NETCONF
- Provision Type: RSVP
- Name: Netconf-LSP
- Device A: vMX-PE2
- Device B: vMX-PE5
- Routing Method: Routed by Device

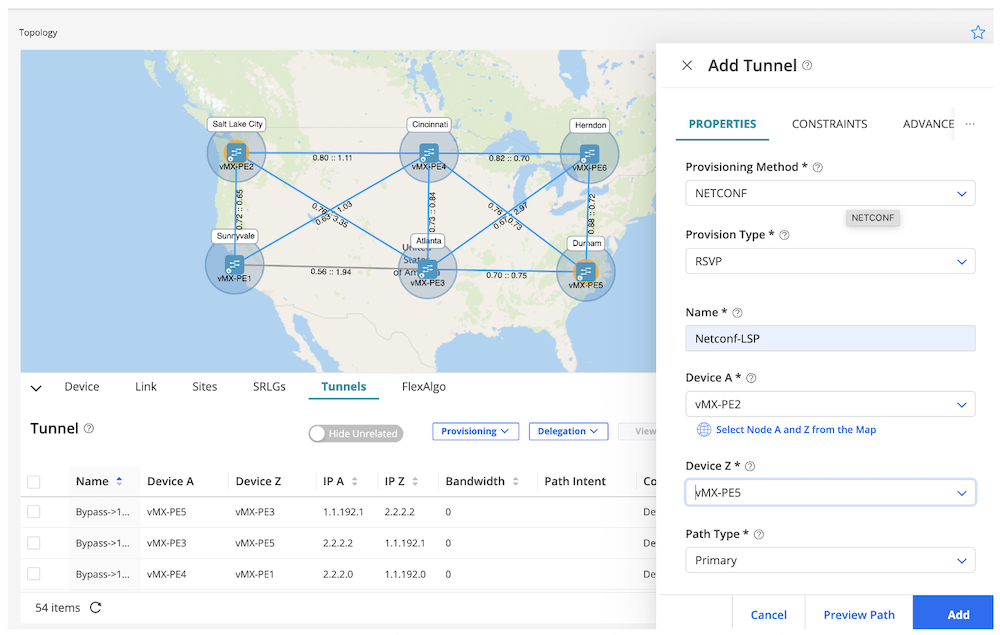

Figure 13: RD GUI for NETCONF Tunnel Provisioning Flow
Click Add after finishing defining everything.

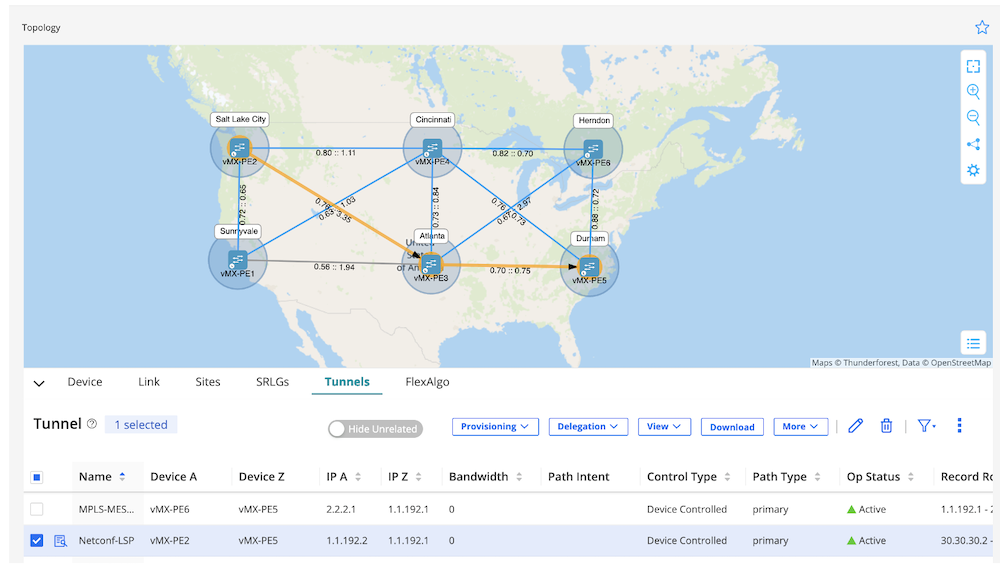

Figure 14: Netconf-LSP Successfully Created

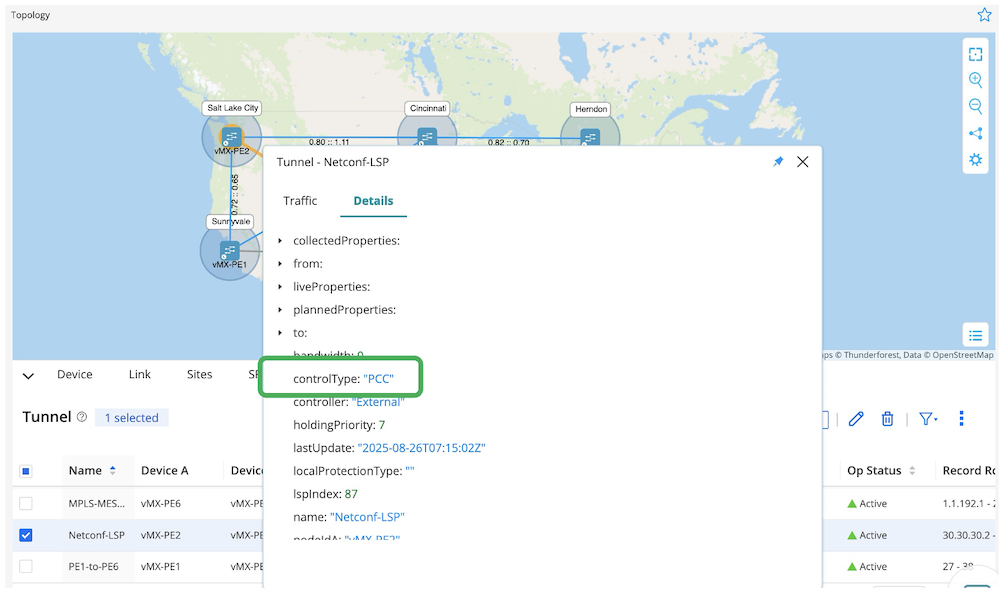

Figure 15: Control Type: PCC Information from RD GUI
We can see in Figure 14 and Figure 15 that the LSP has been successfully created.
Let’s check from the PE2 router:
jcluser@vMX-PE2> show mpls lsp ingress
Ingress LSP: 6 sessions
To From State Rt P ActivePath LSPname
1.1.192.0 1.1.192.2 Up 0 * MPLS-MESH-from-vMX-PE2-to-vMX-PE1
2.2.2.2 1.1.192.2 Up 0 * MPLS-MESH-from-vMX-PE2-to-vMX-PE3
2.2.2.0 1.1.192.2 Up 0 * MPLS-MESH-from-vMX-PE2-to-vMX-PE4
1.1.192.1 1.1.192.2 Up 0 * MPLS-MESH-from-vMX-PE2-to-vMX-PE5
2.2.2.1 1.1.192.2 Up 0 * MPLS-MESH-from-vMX-PE2-to-vMX-PE6
1.1.192.1 1.1.192.2 Up 0 * Netconf-LSP Netconf-LSP
jcluser@vMX-PE2> show configuration protocols mpls
label-switched-path Netconf-LSP {
from 1.1.192.2;
to 1.1.192.1;
adaptive;
primary Netconf-LSP {
bandwidth 0;
priority 7 7;
}
}
path Netconf-LSP;
jcluser@vMX-PE2> show mpls lsp name Netconf-LSP detail
Ingress LSP: 6 sessions
1.1.192.1
From: 1.1.192.2, State: Up, ActiveRoute: 0, LSPname: Netconf-LSP, LSPid: 7
ActivePath: Netconf-LSP (primary)
LSPtype: Static Configured, Penultimate hop popping
LoadBalance: Random
Follow destination IGP metric
Encoding type: Packet, Switching type: Packet, GPID: IPv4
LSP Self-ping Status : Enabled
*Primary Netconf-LSP State: Up
Priorities: 7 7
SmartOptimizeTimer: 180
Flap Count: 0
MBB Count: 0
Computed ERO (S [L] denotes strict [loose] hops): (CSPF metric: 20)
30.30.30.2 S 12.12.12.2 S
Received RRO (ProtectionFlag 1=Available 2=InUse 4=B/W 8=Node 10=SoftPreempt 20=Node-ID):
30.30.30.2(Label=47) 12.12.12.2(Label=3)
Total 1 displayed, Up 1, Down 0
RD2.5 successfully provisioned the Netconf-LSP tunnel via NETCONF, and the tunnel configuration appeared in CLI. I will delegate this Netconf-LSP to Routing Director for the next step.
We need to select in the list: Netconf-LSP --> Delegation --> Configure Delegation

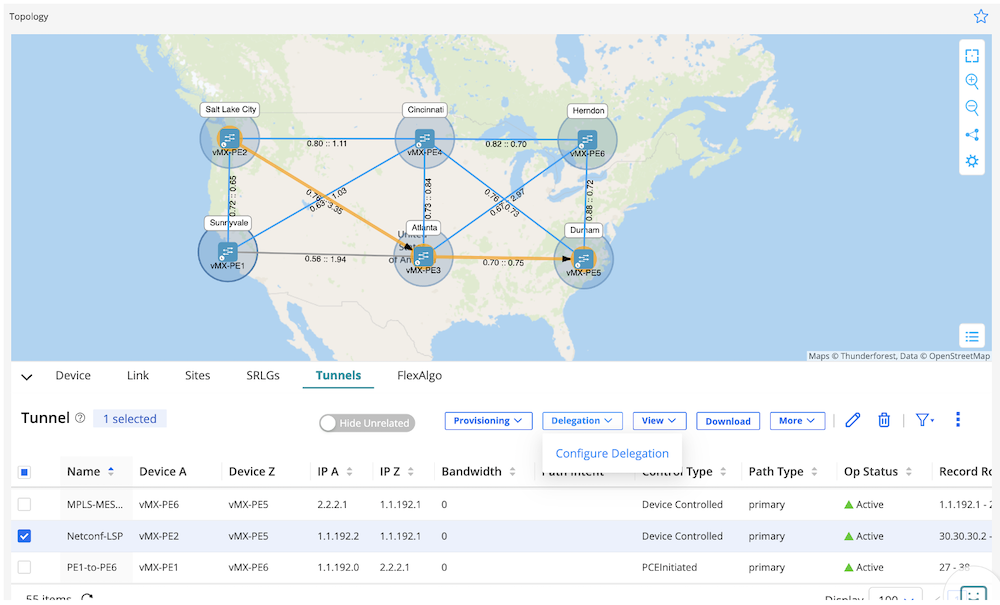

Figure 16 LSP Delegation Preparation

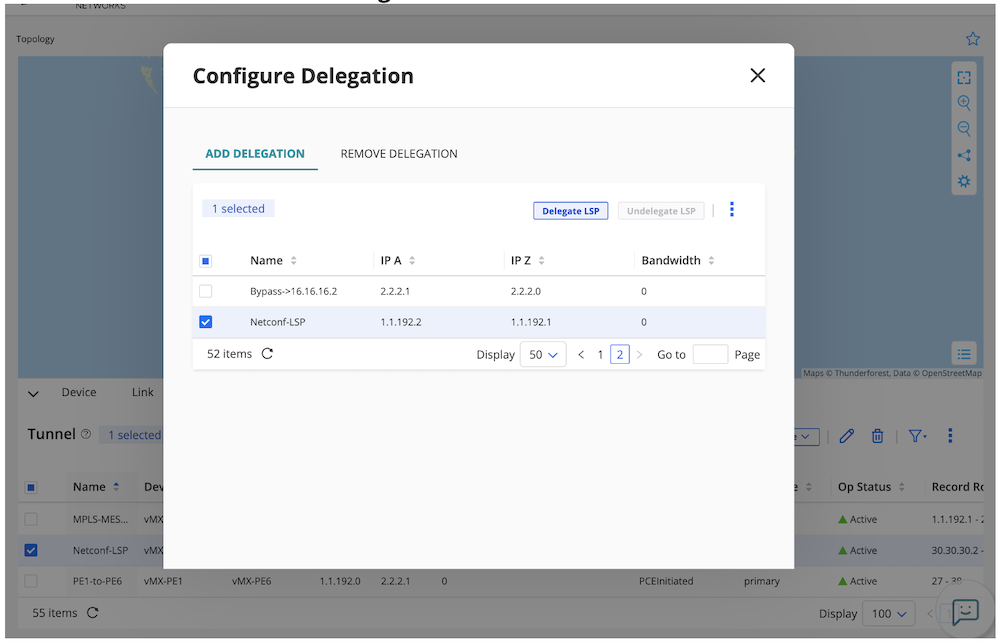

Select Netconf-LSP and click on “Delegate LSP”
Figure 17 Final LSP Delegation Step
Once successful, RD GUI will provide the new information for this LSP.

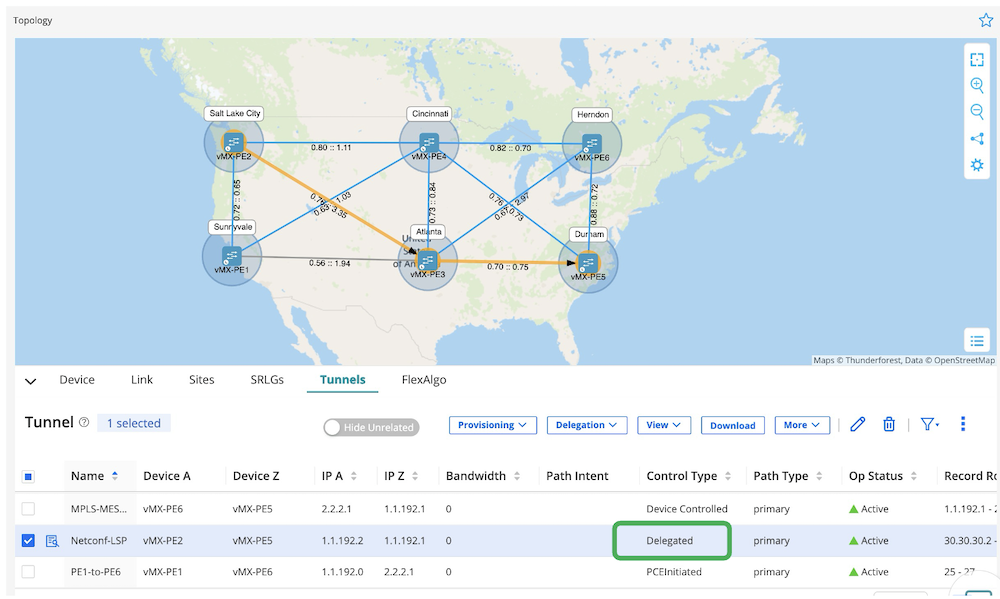

Figure 18: Control Type change to "Delegated"
The new details are also reflected in the router:
jcluser@vMX-PE2> show configuration protocols mpls
sensor-based-stats;
label-switched-path Netconf-LSP {
from 1.1.192.2;
to 1.1.192.1;
adaptive;
primary Netconf-LSP {
bandwidth 0;
priority 7 7;
}
lsp-external-controller pccd; Additional command added after control type change
}
path Netconf-LSP;
jcluser@vMX-PE2> show mpls lsp name Netconf-LSP detail
Ingress LSP: 6 sessions
1.1.192.1
From: 1.1.192.2, State: Up, ActiveRoute: 0, LSPname: Netconf-LSP, LSPid: 7
ActivePath: Netconf-LSP (primary)
LSPtype: Externally controlled - static configured, Penultimate hop popping
LSP Control Status: Externally controlled the LSP is now controlled by RD
LoadBalance: Random
Follow destination IGP metric
Encoding type: Packet, Switching type: Packet, GPID: IPv4
LSP Self-ping Status : Enabled
*Primary Netconf-LSP State: Up
Priorities: 7 7
External Path CSPF Status: external
SmartOptimizeTimer: 180
Flap Count: 0
MBB Count: 0
Received RRO (ProtectionFlag 1=Available 2=InUse 4=B/W 8=Node 10=SoftPreempt 20=Node-ID):
30.30.30.2(Label=47) 12.12.12.2(Label=3)
Total 1 displayed, Up 1, Down 0
3. SR-TE PCEP Flex-algo delay-based constraint tunnel
IP Transport network slicing is one of the use cases for this demo. Flex-algo will logically create topology isolation. I will make two flex-algo (128 and 129) topology in this demo and create one SR-TE flex-algo-aware LSP with delay-based constraint. An example of this use case is a latency-sensitive service, e.g., voice, video call, gaming, etc.
My high-level flex-algo topology will be:
- PE1: Flex-algo 128 and 129
- PE2: Flex-algo 129
- PE3: Flex-algo 129
- PE4: Flex-algo 128
- PE5: Flex-algo 128
- PE6: Flex-algo 128 and 129
Some configurations in the router are mandatory to ensure SR-TE flex-algo with delay-based constraint will behave properly.
Configuration from PE1:
jcluser@vMX-PE1#
set protocols isis source-packet-routing srgb start-label 16000
set protocols isis source-packet-routing srgb index-range 8000
set protocols isis source-packet-routing node-segment ipv4-index 101
set protocols isis source-packet-routing flex-algorithm 128
set protocols isis source-packet-routing flex-algorithm 129
set protocols source-packet-routing lsp-external-controller pccd
set protocols pcep pce pso-pce-server spring-capability
set routing-options flex-algorithm 128 definition metric-type te-metric
set routing-options flex-algorithm 128 definition priority 100
set routing-options flex-algorithm 128 color 128
set routing-options flex-algorithm 129 definition metric-type te-metric
set routing-options flex-algorithm 129 definition priority 100
set routing-options flex-algorithm 129 color 129
set services rpm twamp server authentication-mode none
set services rpm twamp server light
set groups p2p-protocols protocols isis interface <*> delay-measurement
Next step, we verify the SR-TE in this router:
jcluser@vMX-PE1> show isis overview
Instance: master
Router ID: 1.1.192.0
Hostname: vMX-PE1
Sysid: 0010.0119.2000
Areaid: 49.0003
Adjacency holddown: enabled
Maximum Areas: 3
LSP life time: 1200
Attached bit evaluation: enabled
SPF delay: 200 msec, SPF holddown: 5000 msec, SPF rapid runs: 3
IPv4 is enabled, IPv6 is enabled, SPRING based MPLS is enabled
Traffic engineering: enabled
Traffic engineering v6: disabled
Restart: Disabled
Helper mode: Enabled
Layer2-map: Disabled
Source Packet Routing (SPRING): Enabled
SRGB Config Range :
SRGB Start-Label : 16000, SRGB Index-Range : 8000
SRGB Block Allocation: Success
SRGB Start Index : 16000, SRGB Size : 8000, Label-Range: [ 16000, 23999 ]
Node Segments: Enabled
Ipv4 Index : 101
SRv6: Disabled
...Truncated...
jcluser@vMX-PE1> show isis database level 2 flex-algorithm-id 128
IS-IS level 2 link-state database:
LSP ID Sequence Checksum Lifetime Attributes
vMX-PE1.00-00 0x10e 0xe161 1145 L1 L2
vMX-PE5.00-00 0x108 0x9d33 1131 L1 L2
vMX-PE4.00-00 0x27 0x63a9 879 L1 L2
vMX-PE4.00-01 0x19a 0xa353 1192 L1 L2
vMX-PE6.00-00 0x108 0x5e56 1140 L1 L2
5 LSPs
jcluser@vMX-PE1> show isis database level 2 flex-algorithm-id 129
IS-IS level 2 link-state database:
LSP ID Sequence Checksum Lifetime Attributes
vMX-PE1.00-00 0x10e 0xe161 1143 L1 L2
vMX-PE2.00-00 0x106 0xc608 1128 L1 L2
vMX-PE6.00-00 0x109 0xffb 1194 L1 L2
vMX-PE3.00-00 0x2b 0x649b 608 L1 L2
vMX-PE3.00-01 0x19f 0xcccd 1179 L1 L2
5 LSPs
In addition of SR information, delay-measurement and Flex-algo details are also advertised to Routing Director.
jcluser@vMX-PE6> show ted database extensive
TED database: 6 ISIS nodes 6 INET nodes 0 INET6 nodes
NodeID: vMX-PE1.00(1.1.192.0)
Type: Rtr, Age: 77 secs, LinkIn: 3, LinkOut: 3
Protocol: IS-IS(2)
1.1.192.0
To: vMX-PE4.00(2.2.2.0), Local: 13.13.13.1, Remote: 13.13.13.2
Local interface index: 335, Remote interface index: 334
Color: 0 <none>
Metric: 10
IGP metric: 10
Average delay: 1540
Minimum delay: 697
Maximum delay: 6612
Delay variation: 2886
Static BW: 10Mbps
Reservable BW: 10Mbps
Available BW [priority] bps:
[0] 10Mbps [1] 10Mbps [2] 10Mbps [3] 10Mbps
[4] 10Mbps [5] 10Mbps [6] 10Mbps [7] 10Mbps
Interface Switching Capability Descriptor(1):
Switching type: Packet
Encoding type: Packet
Maximum LSP BW [priority] bps:
[0] 10Mbps [1] 10Mbps [2] 10Mbps [3] 10Mbps
[4] 10Mbps [5] 10Mbps [6] 10Mbps [7] 10Mbps
P2P Adjacency-SID:
IPV4, SID: 25, Flags: 0x30, Weight: 0
Link MSD:
- Type: 1, Value: 3
To: vMX-PE3.00(2.2.2.2), Local: 27.27.27.2, Remote: 27.27.27.1
Local interface index: 334, Remote interface index: 333
Color: 0 <none>
Metric: 10
IGP metric: 10
Average delay: 687
Minimum delay: 513
Maximum delay: 842
Delay variation: 173
Static BW: 10Mbps
Reservable BW: 10Mbps
Available BW [priority] bps:
[0] 10Mbps [1] 10Mbps [2] 10Mbps [3] 10Mbps
[4] 10Mbps [5] 10Mbps [6] 10Mbps [7] 10Mbps
Interface Switching Capability Descriptor(1):
Switching type: Packet
Encoding type: Packet
Maximum LSP BW [priority] bps:
[0] 10Mbps [1] 10Mbps [2] 10Mbps [3] 10Mbps
[4] 10Mbps [5] 10Mbps [6] 10Mbps [7] 10Mbps
P2P Adjacency-SID:
IPV4, SID: 27, Flags: 0x30, Weight: 0
Link MSD:
- Type: 1, Value: 3
SPRING-Capabilities:
SRGB block [Start: 16000, Range: 8000, Flags: 0xc0]
SPRING-Algorithms:
Algo: 0
Algo: 1
Algo: 128
Algo: 129
SPRING Flex-Algorithms:
Flex-Algo: 128
Metric: 2, Calc: 0, Prio: 100
Flags: 0x00000000
Flex-Algo: 129
Metric: 2, Calc: 0, Prio: 100
Flags: 0x00000000
Node MSD:
- Type: 1, Value: 3
- Type: 2, Value: 16
... Truncated ...
Looks like everything is working perfectly from the router perspective, let’s do a quick check in RD, shall we?

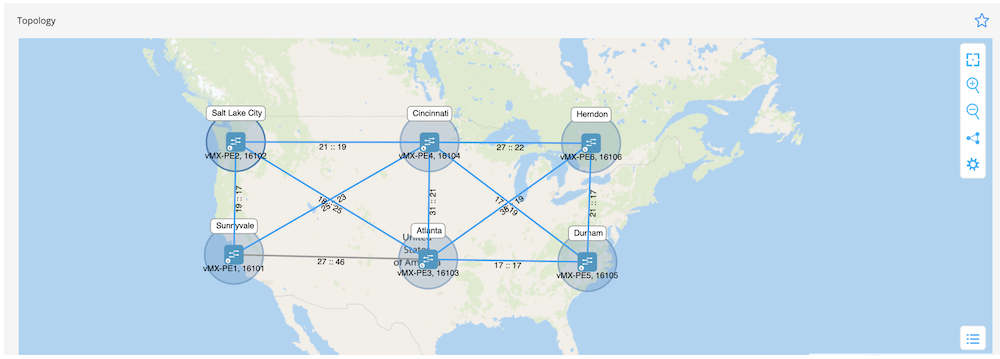

Figure 19: Node-SID and Adj-SID Information

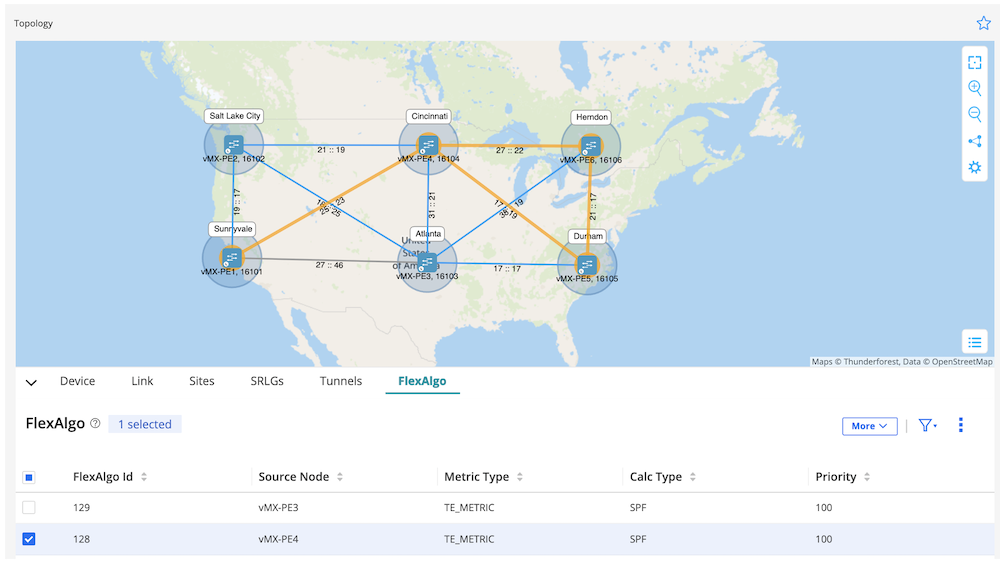

Figure 20: Flex-Algo 128 Topology

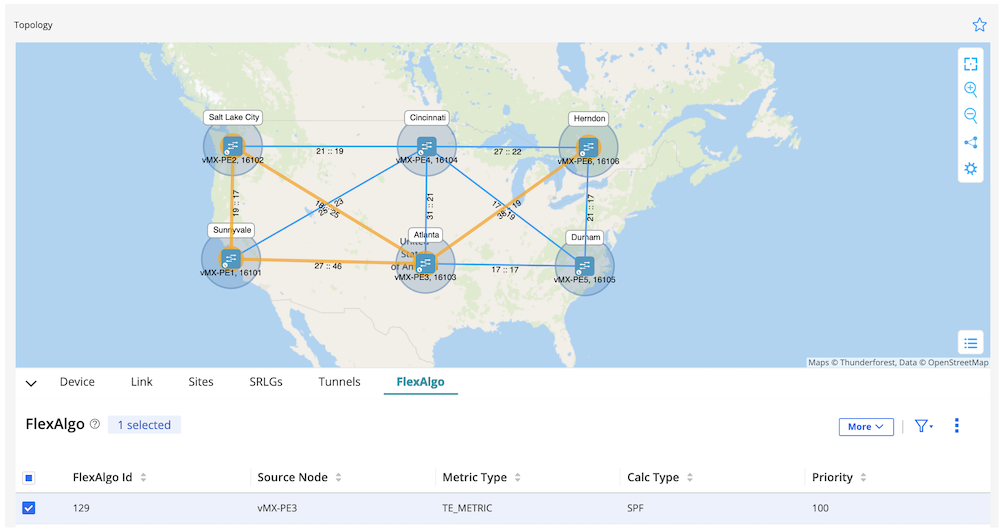

Figure 21: Flex-Algo 129 Topology

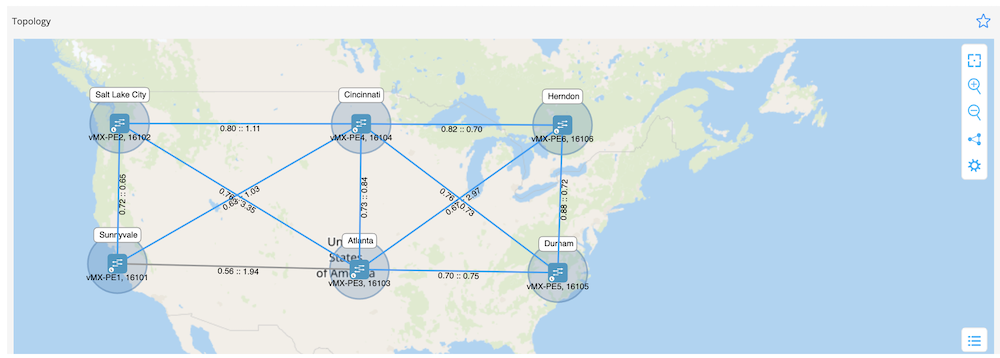

Figure 22: P2P Delay-measurement Information
We can see in Figures 19, 20, 21 and 22 that all SR information (node-SID and Adj-SID), Flex-algo and delay-measurement details are aligned with the routers outputs.
Let's provision our intended SR-TE now. I will create an SR-TE tunnel from PE6 to PE1 for this use case.
First, we go to Tunnels --> Provisioning and we define important variables in the GUI:
- Provisioning Method: PCEP
- Provision Type: SR
- Name: SRTE-Delay-FlexAlgo-128
- Device A: vMX-PE6
- Device B: vMX-PE1
- Routing Method: Delay
- FlexAlgo ID: 128
- Constraints Maximum Delay: 150ms
Figure 23: Step-by-step Defining the Variables
Figure 24: SRTE-Delay-FlexAlgo-128 Tunnel UP
Figure 25: Detailed Tunnel Information, Aligned with Defined Variables
After the tunnel has been successfully created, we'll need to exceed the 150ms maximum delay to prove the delay constraint works well. I will statically advertise 250ms delay variation via ISIS IGP protocol for the link PE6 (ge-0/0/2) >< PE4 link (ge-0/0/2) to test this.
jcluser@vMX-PE6# set protocols isis interface ge-0/0/2 delay-metric 250000
jcluser@vMX-PE6# show | compare
[edit groups paragon-service-orchestration protocols isis interface ge-0/0/2.0]
+ delay-metric 250000;
jcluser@vMX-PE6> show ted database extensive | match 250000
Average delay: 250000
Minimum delay: 250000
Delay-metric information will be advertised to RD.
Figure 26: Delay-metric in RD GUI
The tunnel is automatically rerouted via the other Flex-algo 128 link where the measured delay is still below the defined threshold.

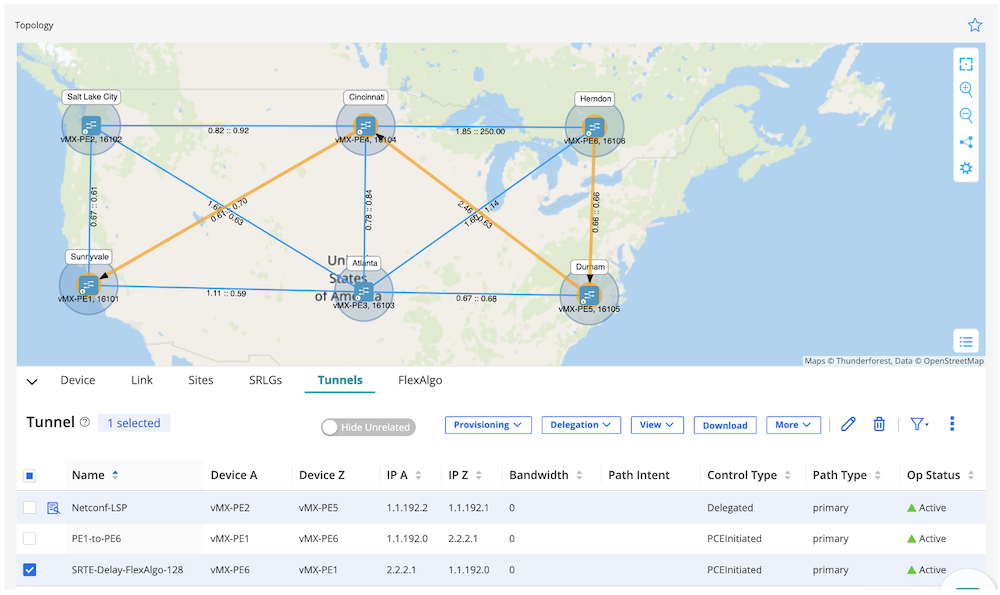

Figure 27
Next, I will also violate the last Flex-algo 128 link by statically advertising 250ms delay-metric information.
jcluser@vMX-PE6# set protocols isis interface ge-0/0/0 delay-metric 250000
jcluser@vMX-PE6# show | compare
[edit groups paragon-service-orchestration protocols isis interface ge-0/0/2.0]
+ delay-metric 250000;
jcluser@vMX-PE6> show ted database extensive | match 250000
Average delay: 250000
Minimum delay: 250000
Average delay: 250000
Minimum delay: 250000
As expected, the tunnel is declared down for two reasons:
- 1. There is no more resource of Flex-algo 128 link in the topology (remember that PE3 is part of Flex-algo 129, hence PE3 >< PE6 link is not part of the Flex-algo 128 resource)
- 2. All Flex-algo 128 available links are exceeding the 150ms maximum delay constraint

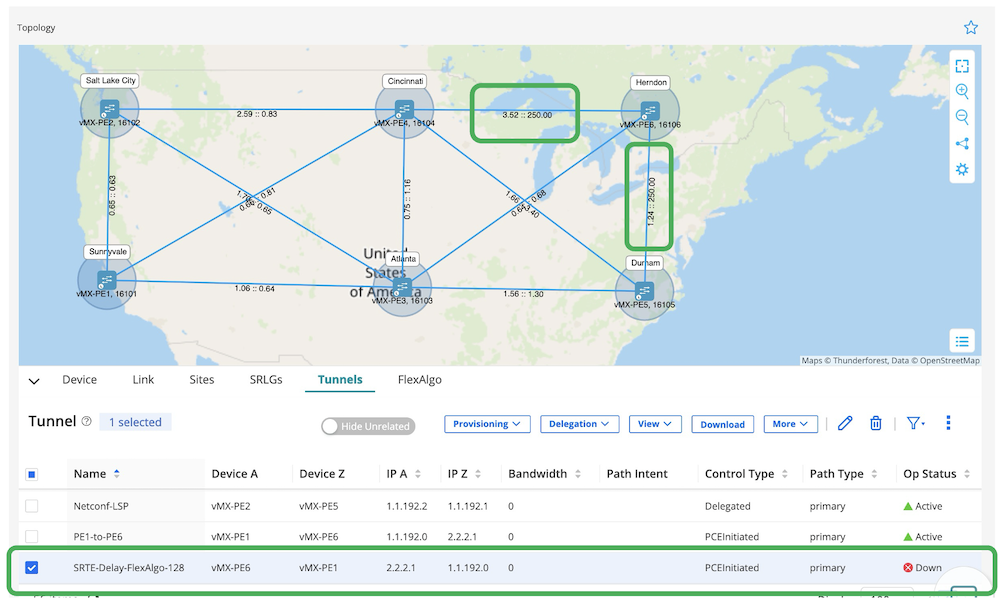

Figure 28: Delay measurement and Tunnel Down in RD GUI
This test case proves that RD2.5 can handle multiple constraint tunnels.
4. SR-TE full mesh path intent creation
Imagine we have hundreds of routers in the network and we need to create a new full mesh LSP traffic engineering. A service provider wants to upgrade the network from MPLS-based LDP/RSVP to SR-MPLS, and SR-TE is mandatory. Configuring routers manually via the CLI will be a tedious and error-prone effort.
Routing Director introduced a new feature in RD2.5 version to overcome this problem. It's called Network Optimization Intent. It can automate and create a full mesh LSP with only a few steps. I will show you how easy it is with RD in this last use case.
First, we need to go to the “Network Optimization Intent” tab.

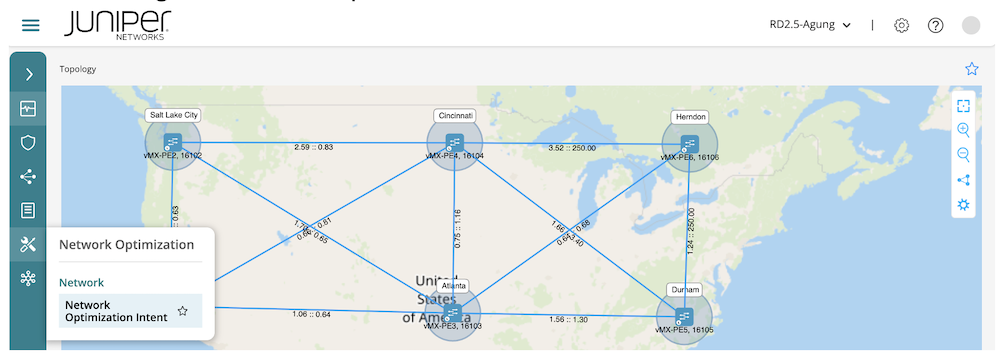

Figure 29: Network Optimization Intent
We need to define the “Tunnel Profiles” then click “Publish”.
- Name: Tunnel-profile
- Provisioning Method: PCEP
- Signaling Protocol: SR

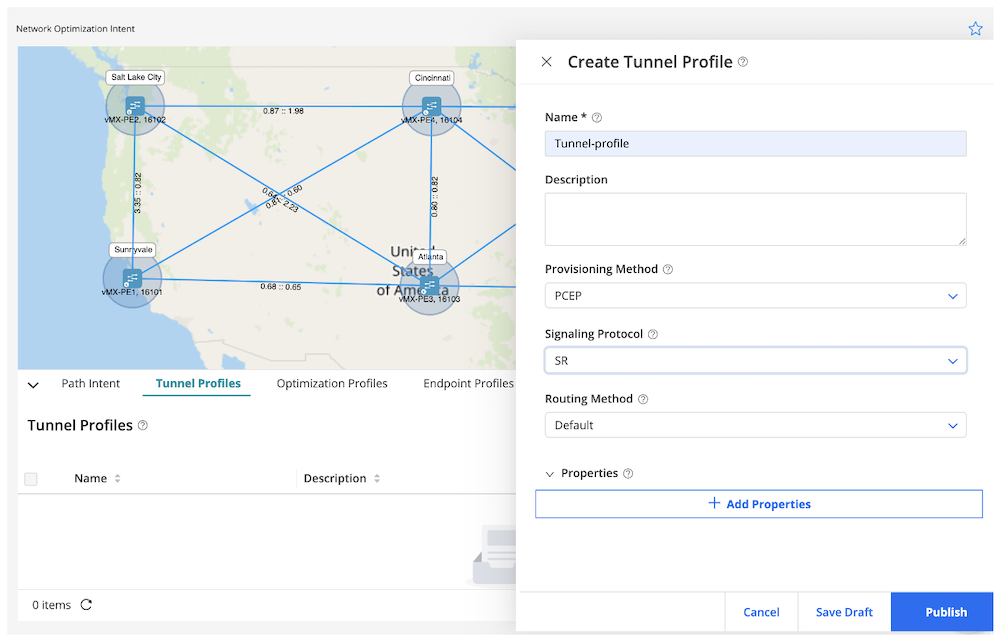

Figure 30: RD Tunnel Profiles
Creating “Optimization Profiles” is the next prerequisite stage, then click “Publish”.
- Name: Optim-profile
- Tunnel Optimization Context: 0 (I will leave it zero, but we can define this as per the requirements)
Figure 31: RD Optimization Profiles

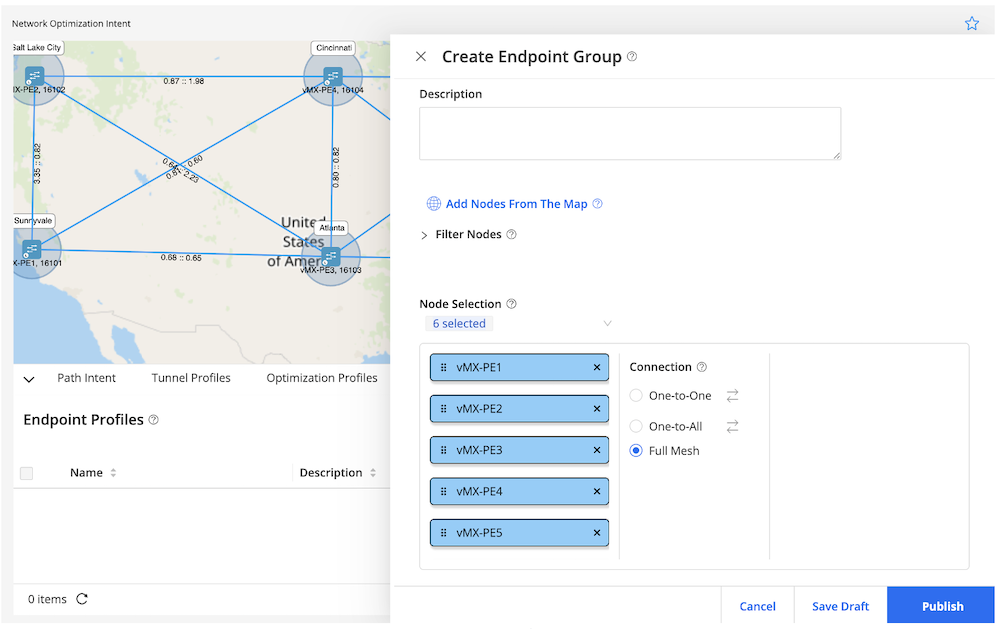

Last one is to define the “Endpoint Group” with the name: Node-Endpoint before we move to the final stage. Then, we click “Publish”.
Figure 32: RD Endpoint Group
We move to the “Path Intent” after all the prerequisites have been defined as per the capture below and then click “Publish”.
- Name: Path-Intent
- Tunnel Profile: Tunnel-profile
- Optimization Profile: Optim-profile
- Endpoint Group: Node-Endpoint

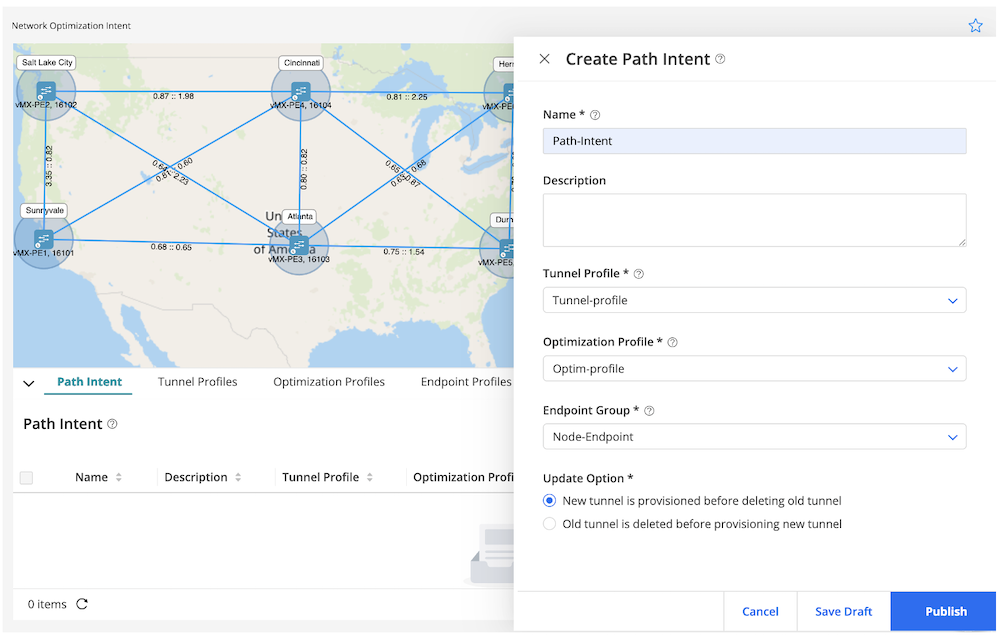

Figure 33: RD Path Intent
Since I am creating a full mesh path intent, the total provisioned paths will be using a simple formula Nx(N-1). I have six routers in my lab, hence the total will be 6x(6-1) = 30 provisioned tunnels (with 5 SR-TE tunnels per router) as per Figure 34.
Figure 34: RD Final Result Network Optimization Intent
We verify the active tunnels' status in Figure 35

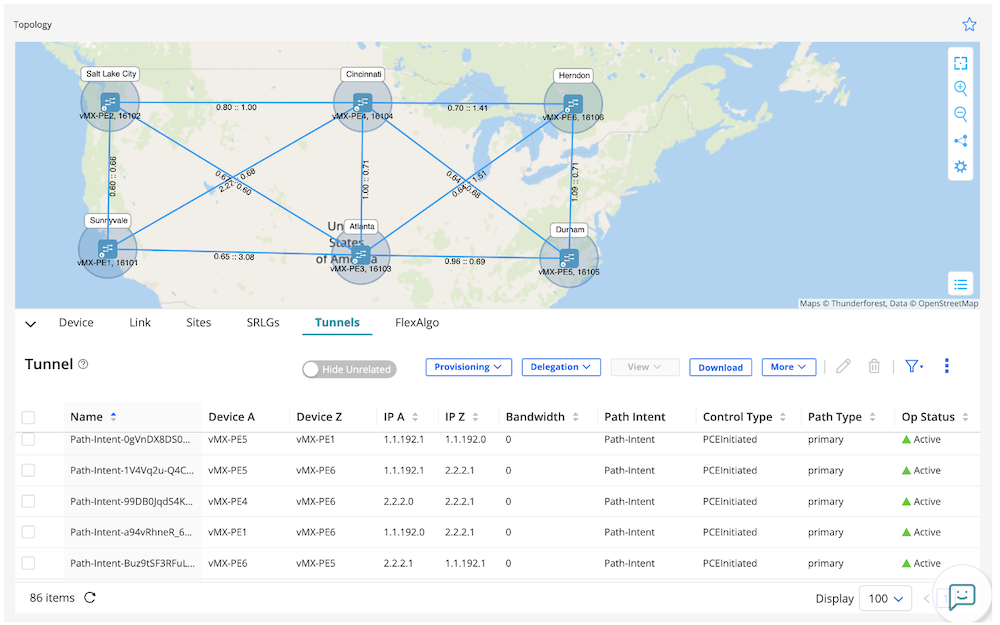

Figure 35: All SR-TE Tunnels Up
I will grab sample output from router PE3 and PE4 for the Network Optimization Intent result.
jcluser@vMX-PE3> show spring-traffic-engineering lsp
To State LSPname
2.2.2.0 Up Path-Intent-FG06Dm-8SYe5l08niUlKdg
1.1.192.0 Up Path-Intent-Nj9AOi-cRiuOZcdKVA424g
1.1.192.1 Up Path-Intent-UUWHi7CRQUiCSfudlW093A
2.2.2.1 Up Path-Intent-jYj8-40iSnKKiXWeoFmc0Q
1.1.192.2 Up Path-Intent-nBeNfCMATZ6Xg_hhzHkCow
Total displayed LSPs: 5 (Up: 5, Down: 0)
jcluser@vMX-PE4> show spring-traffic-engineering lsp
To State LSPname
2.2.2.1 Up Path-Intent-99DB0JqdS4KFuujT0ByUVg
1.1.192.1 Up Path-Intent-Dbg3a_SCSCS4Z0FrdJl-fQ
1.1.192.0 Up Path-Intent-eUOHnCY_TpO62ik32FMcVw
2.2.2.2 Up Path-Intent-pkMy1fDWRbCik4noVLzKmQ
1.1.192.2 Up Path-Intent-qm3BZhgdTPaCYEpere2qWw
Total displayed LSPs: 5 (Up: 5, Down: 0)
We can see how easy and fast it is to build full mesh tunnels in the network.
Conclusion
In this Techpost, we described how network automation and optimization can be managed by Routing Director. RD will improve day-to-day operation and ultimately reduce the probability of human error in the network. From creating a new LSP for a specific service with different constraints, delegating LSP from routers to RD, transport network slicing with Flex-algo, to full-mesh tunnel automation provisioning... All were demonstrated and proven in this Techpost article.
Useful links
Glossary
- RD: Routing Director
- MPLS: MultiProtocol Label Switching
- SR: Segment Routing
- LSP: Label Switched Path
- Flex-algo: Flexible Algorithm
- SID: Segment-ID
- BGP-LS: Border Gateway Protocol – Link State
- NETCONF: Network Configuration Protocol
- IGP: Interior Gateway Protocol
- GUI: Graphical User Interface
Acknowledgements
Thank you to Darshan Sreenivas and Henry Cheung for the discussion, especially to Darshan for helping me with JCL Sandbox troubleshooting.
Comments
If you want to reach out for comments, feedback or questions, drop us a mail at:
Revision History
| Version |
Author(s) |
Date |
Comments |
| 1 |
Masagung Nugroho |
September 2025 |
Initial Publication |
#Automation
