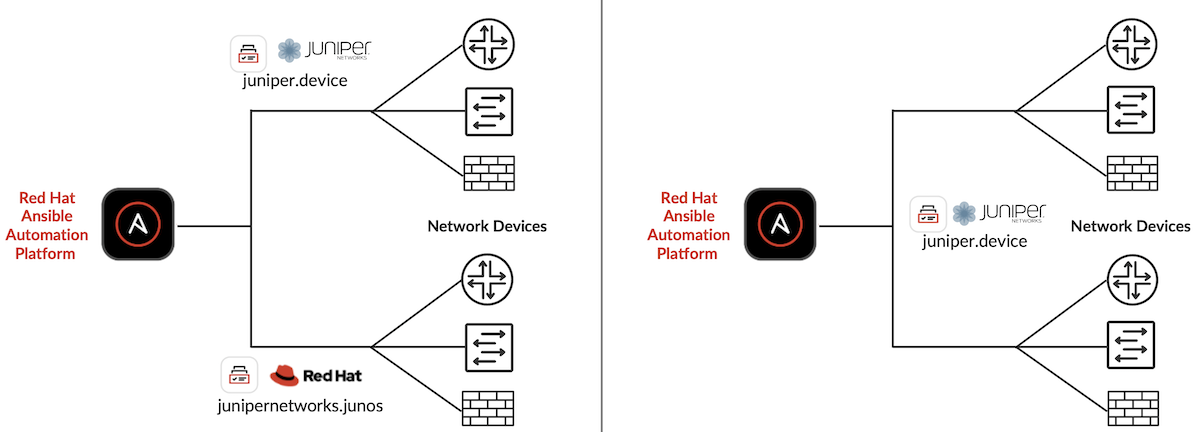

Red Hat Ansible Automation Platform and Juniper Networks each have collections of Ansible modules for managing Junos devices. We are merging Ansible’s collection into the Juniper Collection to provide a single collection of modules for our customers.
Introduction
The most important goal during the merger of our collections was to create a seamless customer experience. Before this merger, our distinct collections were developed with different purposes and use cases, so there was work to do so that our customers would be able to use either set of playbooks with only the change of namespace. This merged collection showcases how our collections complement each other, rather than compete, allowing us to leverage the strengths of both approaches with the Red Hat Ansible Automation Platform (AAP). The most important thing to know is that one may continue to use both sets of previously created playbooks with the merged collection, without any alterations.
The Collections: What They Do, And How They Work
Picking a Collection

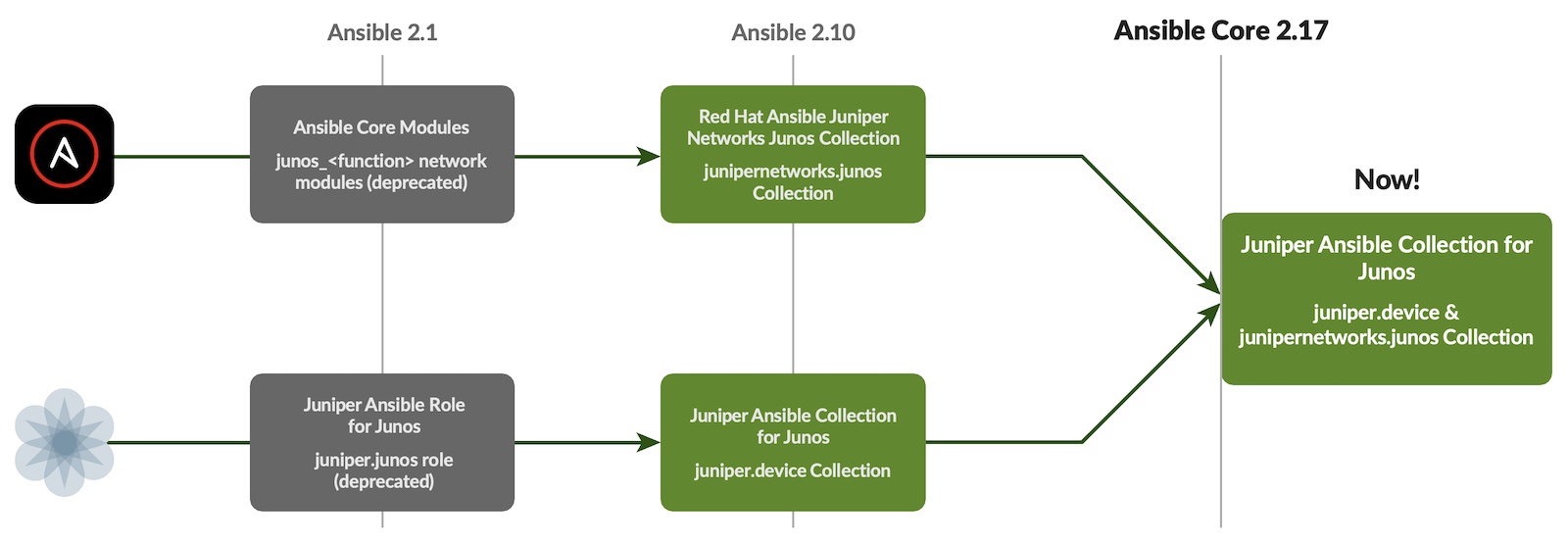

With the shift to Ansible Automation 2.10 and later, there have been two primary, powerful content collections for Junos OS:
- The Red Hat Ansible Juniper Networks Junos Collection (we can refer to this as the Red Hat Collection) which uses the junipernetworks.junos namespace and is maintained by Red Hat Ansible.
- The Juniper Ansible Collection for Junos (we can refer to this as the Juniper Collection) which uses the juniper.device namespace and is maintained by Juniper Networks.
While it has always been possible to deploy both, we consistently receive questions from users trying to understand which collection best suits their needs and use cases.

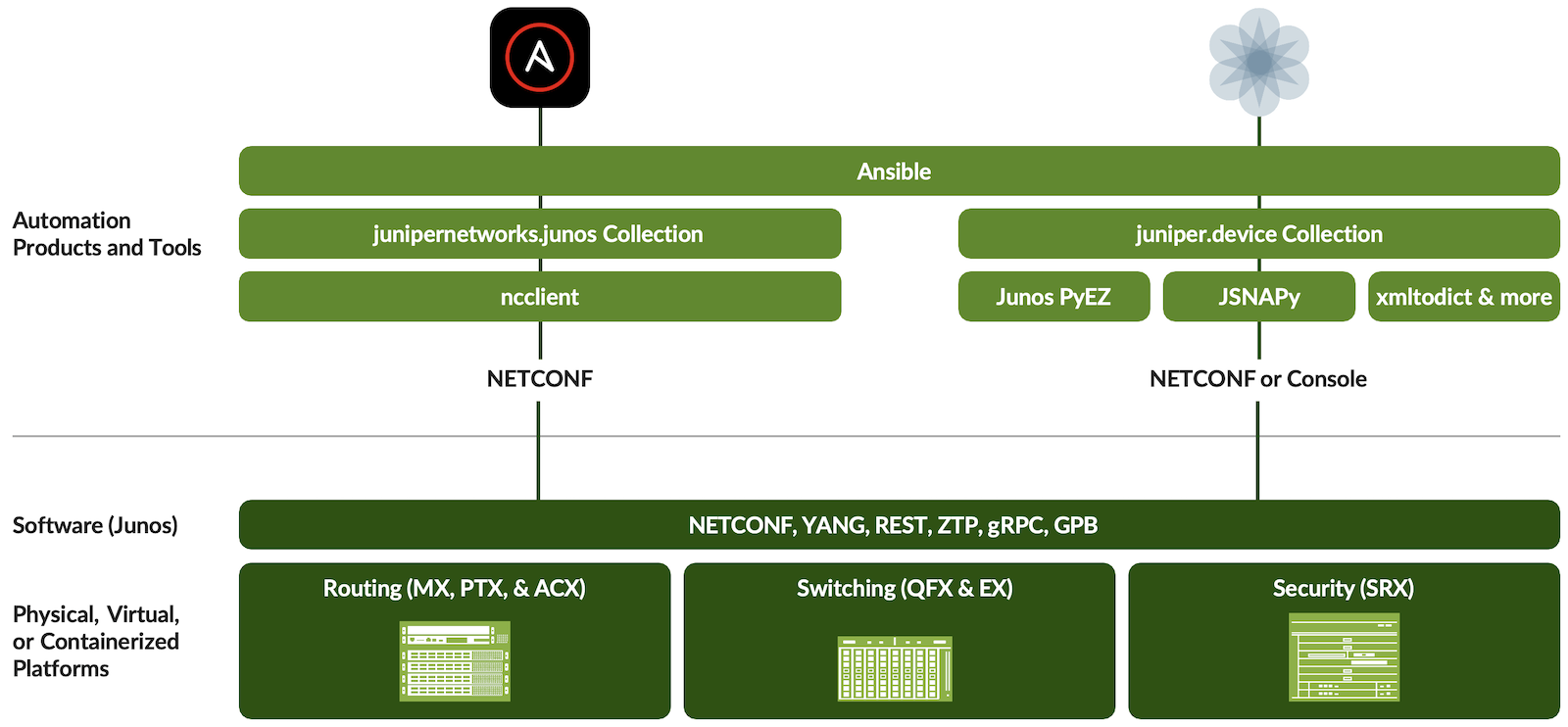

As previously stated, these collections were built with different purposes and use cases.
The Red Hat Collection was developed using a consistent approach applied to all Red Hat maintained networking collections. The key value proposition here being the templated configurations customers are able to utilize - allowing for streamlined, repeatable configuration management.
This design provides significant value for users because it:
- Simplifies Configuration: It removes the need for engineers to memorize or look up the specific command syntax required for different devices.
- Enables Multi-Vendor Consistency: It allows for the consistent configuration of common networking actions like Virtual Routing and Forwarding (VRFs), Access Control Lists (ACLs) and Border Gateway Protocol (BGP) across a multi-vendor environment.
The Juniper Collection was designed to provide users with direct access to the full breadth of Junos capabilities.
Junos is known best for its vast number of features, protocols, and use cases. However, attempting to force these differentiating features into a “least common denominator” module set, while beneficial for multi-vendor consistency, can limit the user’s ability to leverage the advanced capabilities of Junos.
Customers who utilize the features which differentiate Junos often found that the Red Hat Collection either lacked support for them or did not provide the options necessary for their deployments. The Juniper Collection solves this by giving customers the power to automate many more features and functions that Junos supports.
Enhanced Capabilities in the Merged Collection
The merging of these two collections creates a more robust and feature-rich automation experience for users. Customers who are migrating from the previous Red Hat collection to the new merged collection will gain these significant benefits:
- Pre-Check and Post-Check Support: Validate your network state before and after configuration changes to improve operational resilience (through the JSNAPy module)
- Configuration Format Support: The merged collection supports all three native Junos configuration formats - text, JSON, and XML. The text format also includes support for set action.
- Configuration Statements Expanded: Access a wider selection of configuration statements like OpenConfig, the ephemeral DB, group configs, family and address parameters, and more.
By combining the strength of both Red Hat Ansible and Juniper Networks, the merged collection delivers a powerful automation solution.
How The Merged Collection Works
The users may utilize the Red Hat Collection playbooks they have previously created with the new merged Juniper and Red Hat Collection without any alterations. This can be done because both collections are present in the codebase.
|-- ansible_collections
| |-- juniper/device
| |-- junipernetworks/junos
The redirect is also configured in the runtime.yml file. A snippet is shown below.
plugin_routing:
action:
modules:
junos_acl_interfaces:
redirect: juniper.device.junos_acl_interfaces
...
A look within the directory shows you that the modules have kept their names. If you look into the Python files, you will also see that these modules are calling the same Python files as before, aka action plugin handling in Ansible terminology.
List of Red Hat Collection’s modules:
junos_acl_interfaces
junos_acls
junos_banner
junos_bgp_address_family
junos_bgp_global
junos_hostname
junos_interfaces
junos_l2_interfaces
junos_l3_interfaces
junos_lacp_interfaces
junos_lacp
junos_lag_interfaces
junos_lldp_global
junos_lldp_interfaces
junos_logging_global
junos_netconf
junos_ntp_global
junos_ospf_interfaces
junos_ospfv2
junos_ospfv3
junos_package
junos_prefix_lists
junos_routing_instances
junos_routing_options
junos_security_policies_global
junos_security_policies
junos_security_zones
junos_snmp_server
junos_static_routes
junos_user
junos_vlans
junos_vrf
List of Juniper Collection’s modules:
command
config
facts
file_copy
Jsnapy
ping
pmtud
rpc
software
srx_cluster
system
table
Dependencies:
Ansible >= 2.17
Python >= 3.12
PyEZ (junos-eznc) >= 2.7.3
Jsnapy >= 1.3.7
Jxmlease >= 1.0.1
Xmltodict >= 0.13.0
packaging
Differences to Keep in Mind
As a reminder, the Red Hat Ansible Juniper Networks Junos Collection that uses the junipernetworks.junos namespace and is maintained by Red Hat Ansible will be called the Red Hat Collection. The Juniper Ansible Collection for Junos that uses the juniper.device namespace and is maintained by Juniper Networks will be called the Juniper Collection. This section assumes the Juniper Collection is using Junos PyEZ as transport.
Inventory Schema
Red Hat Collection
[junos]
<Device IP>
[junos:vars]
ansible_network_os=juniper.device.junos
ansible_user=<username>
ansible_password=<password>
ansible_port=22
ansible_connection=ansible.netcommon.netconf
[all:vars]
ansible_python_interpreter=<python interpreter path>
Juniper Collection
[junos]
cfg_target
[junos:vars]
ansible_host=x.x.x.x
ansible_user=<user>
ansible_password=<pass>
ansible_port=22
ansible_connection=juniper.device.pyez
ansible_command_timeout=300
[all:vars]
ansible_python_interpreter=<python interpreter path>
Logging
Red Hat Collection module path:
junipernetworks.junos.junos_logging_global
Juniper Collection module path:
juniper.device.junos_logging_global
We have additional information and extensive examples on how the playbooks vary. Both may co-exist and we recommend adopting juniper.device moving forward. For your convenience, we have provided three specific examples.
Moving Forward
Installation
Please follow the recommended steps to install the Ansible Collection (junipernetworks.junos) in the Juniper Collection (juniper.device).
1. Create the virtual environment
mkdir ansible_modules_redirection_ansible_merger_branch_venv
cd ansible_modules_redirection_ansible_merger_branch_venv
python3.12 -m venv venv
source venv/bin/activate
2. Install the merged collection
ansible-galaxy collection install git+https://github.com/Juniper/ansible-junos-stdlib.git#/ansible_collections/juniper/device
3. Install the Ansible Collection
ansible-galaxy collection install junipernetworks.junos
4. Update the Ansible Collection Meta Runtime
Remove existing content from the runtime.yaml file located at:
/root/.ansible/collections/ansible_collections/junipernetworks/junos/meta/runtime.yml
Add the new content from the merger branch (jnpr-ansible-merger) runtime.yaml .
5. Execute your playbooks!
Migration
Long term, we recommend this migration path to the Juniper Collection. Please note that the Juniper modules utilizes Ansible connections local or juniper.device.pyez.
