Laer2 VNI VXLAN not learning MAC/IP locally

  • 1.  Laer2 VNI VXLAN not learning MAC/IP locally

    Posted 04-10-2021 17:08
    Hi everyone,

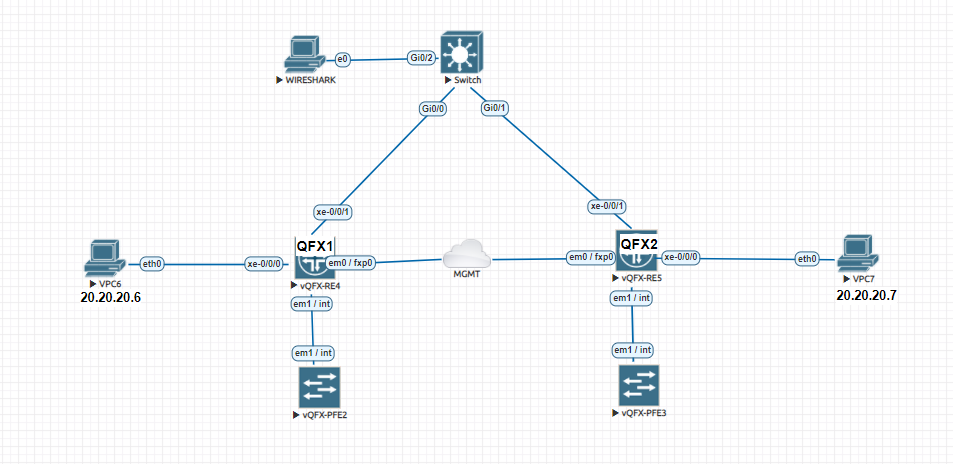

    I am trying to reinforce VXLAN concept using simple network shown below:


    Above we have:
    1 Both QFX  exchaning EVPN routes. Only layer 2 VNI is being used.
    Issue:
    QFX1/QFX2 should learn MAC/IP binding by snooping arps. But this is not happening. Only MAC route is learned.

    VPC7> show ip
    NAME : VPCS7
    IP/MASK : 20.20.20.7/24
    MAC : 00:50:79:66:68:07
    LPORT : 20000
    RHOST:PORT : 127.0.0.1:30000
    MTU : 1500

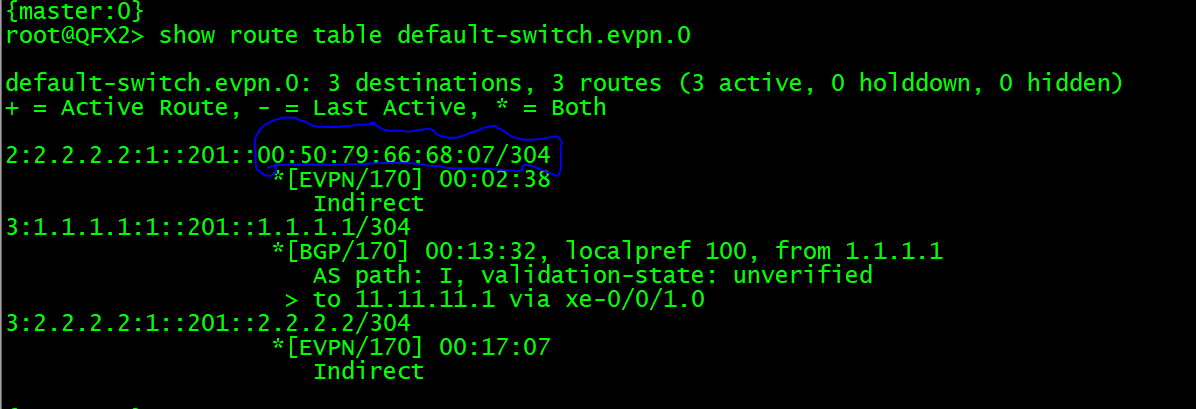

    But attached QFX2 only shows MAC route not MAC/IP:

    Same case with QFX1:
    VPCS> show ip

    NAME : VPCS6
    IP/MASK : 20.20.20.6/24
    MAC : 00:50:79:66:68:06
    LPORT : 20000
    RHOST:PORT : 127.0.0.1:30000
    MTU : 1500

    Thanks and have a good weekend!!


    Additional info: ( Devices config)
    ##QFX1##
    set version 15.1X53-D60.4
    set system host-name QFX1
    set interfaces xe-0/0/0 unit 0 family ethernet-switching vlan members v20
    set interfaces xe-0/0/1 unit 0 family inet address 11.11.11.1/24
    set interfaces lo0 unit 0 family inet address 1.1.1.1/32

    set routing-options router-id 1.1.1.1
    set routing-options autonomous-system 100

    set protocols bgp group TEST type internal
    set protocols bgp group TEST family evpn signaling
    set protocols bgp group TEST neighbor 2.2.2.2 local-address 1.1.1.1

    set protocols ospf area 0.0.0.0 interface xe-0/0/1.0
    set protocols ospf area 0.0.0.0 interface lo0.0

    set protocols evpn encapsulation vxlan
    set protocols evpn extended-vni-list all
    set protocols evpn default-gateway do-not-advertise

    set switch-options vtep-source-interface lo0.0
    set switch-options route-distinguisher 1.1.1.1:1
    set switch-options vrf-target target:100:1
    set vlans v20 vlan-id 20
    set vlans v20 vxlan vni 201

    ## QFX2##
    root@QFX2> show configuration | display set
    set version 15.1X53-D60.4
    set system host-name QFX2
    set interfaces xe-0/0/0 unit 0 family ethernet-switching vlan members v20
    set interfaces xe-0/0/1 unit 0 family inet address 11.11.11.2/24

    set interfaces em1 unit 0 family inet address 169.254.0.2/24
    set interfaces lo0 unit 0 family inet address 2.2.2.2/32


    set routing-options router-id 2.2.2.2
    set routing-options autonomous-system 100
    set protocols bgp group TEST type internal
    set protocols bgp group TEST family evpn signaling
    set protocols bgp group TEST neighbor 1.1.1.1 local-address 2.2.2.2
    set protocols ospf area 0.0.0.0 interface xe-0/0/1.0
    set protocols ospf area 0.0.0.0 interface lo0.0

    set protocols evpn encapsulation vxlan
    set protocols evpn extended-vni-list all
    set protocols evpn default-gateway do-not-advertise


    set switch-options vtep-source-interface lo0.0
    set switch-options route-distinguisher 2.2.2.2:1
    set switch-options vrf-target target:100:1

    set vlans v20 vlan-id 20
    set vlans v20 vxlan vni 201

    ##############################################################################################################
