Default route?

  • 1.  Default route?

    Posted 02-24-2021 10:57
    Newie question...

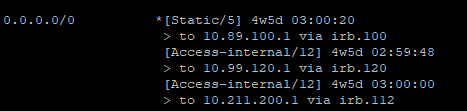

    After issuing a "show route" command at operational level, I notice I have multiple default routes (see image). How do I know which path is being used. Is the primary or preferred route the first one in the list?

    Vlan configuration:
    • 100 = management
    • 120 = users
    • 112 = voip
    Does each one of these vlans need a gateway out? Can some just elaborate on this a little? I see "Static" and "Access-internal"....?


    Thanks,


  • 2.  RE: Default route?


    Posted 02-24-2021 11:12
    Hi,

    The route with * will be the path taken since it has the lowest AD.

    All the vlans can use the default route if there is no specific route.

    Access-internal routes are created when the device is used for DHCP.

    HTH
